SYSTEM INSTALLATION
DEALER MANUAL MAX DRIVE SYSTEM

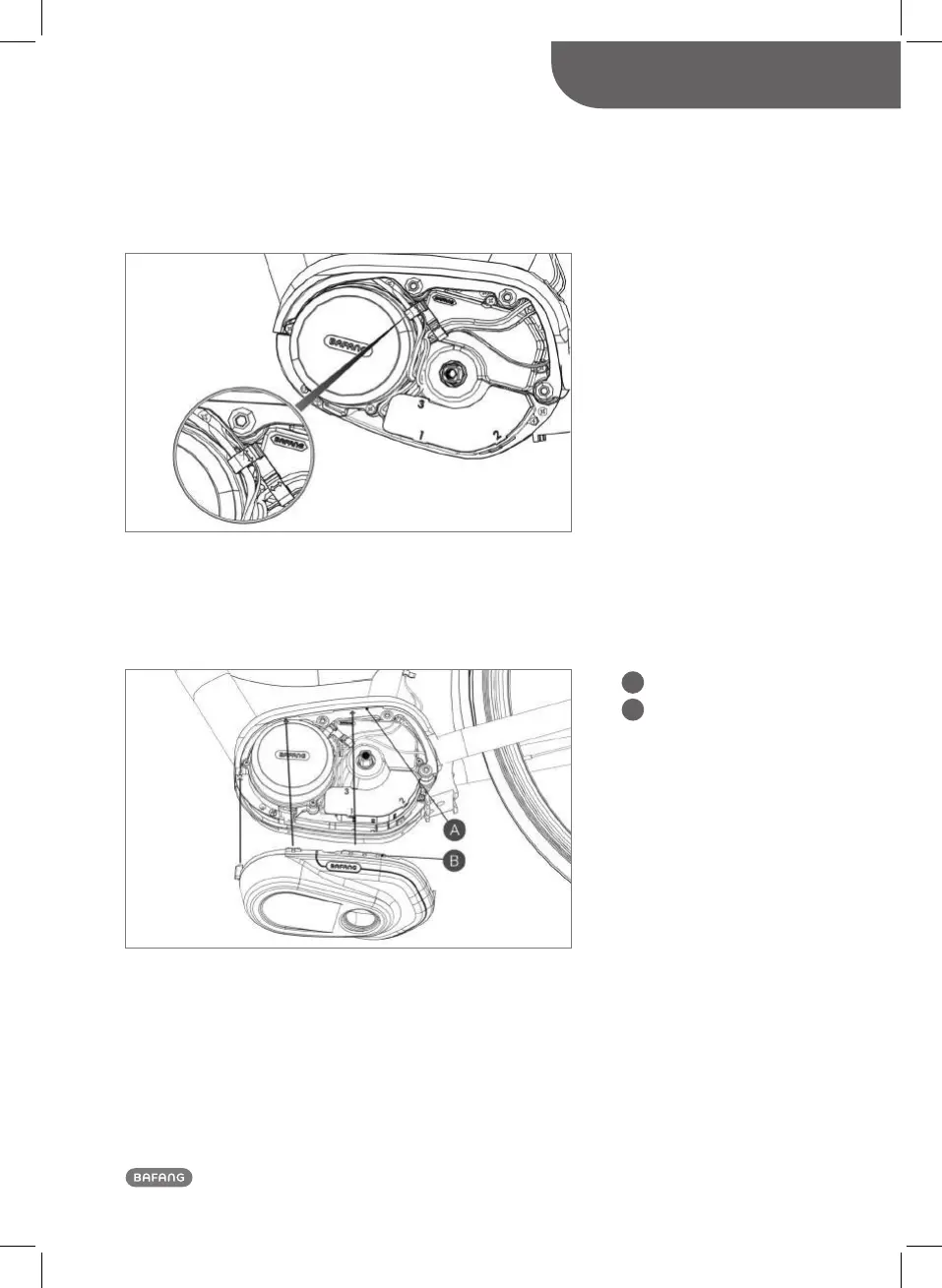

The picture above shows how the drive unit looks after cabling.
Please note that all cables must thread through the cable clips after going out of the connector box.
A
frame adapter
B
drive unit cover
1333000000001
Push the buckle on the drive unit cover into the slot on the frame adapter.
