BAFANG MAX Drive System User Manual

21
DEALER MANUAL MAX DRIVE SYSTEM
C
cabling layout
2307070000001
D
cable clips
1401300000001

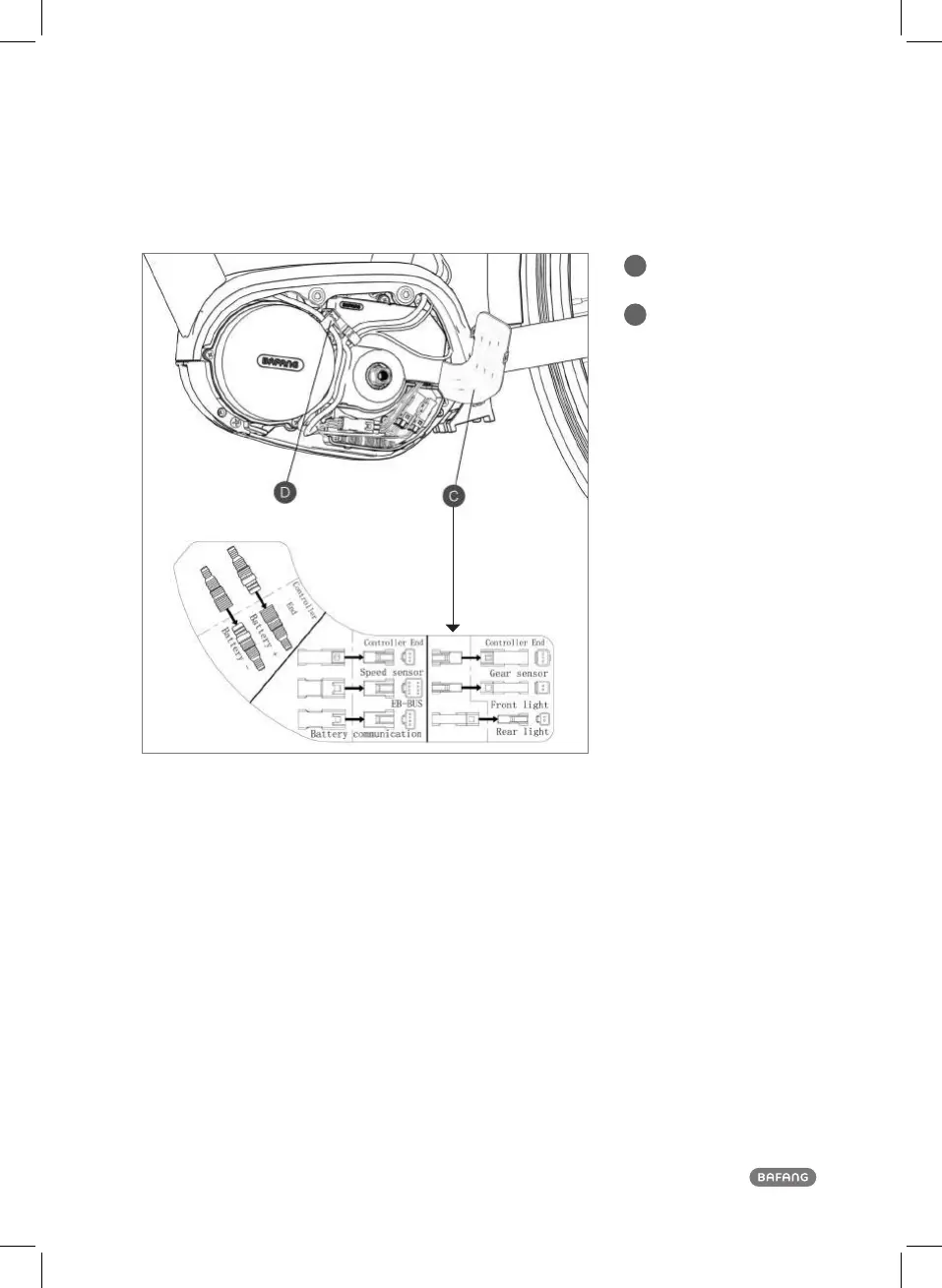

Open the connector box, link all cables to the drive unit and fix all connectors in the connector box according to the
cabling diagram printed on the upper cover of the connector box (see C in the picture above).
After matching all male connectors with female connectors, cover the connector box with the upper cover and thread
the cables through cable clips (D in the picture above) following the principle of "thin cables on top and thick cables
below" to ensure that the cables are neatly arranged.
