Bailey NICS01 - Digital Control Station Board

NDCS03 DIGITAL CONTROL STATION CONFIGURATION
INTRODUCTION
F - 2 I-E96-409A
®

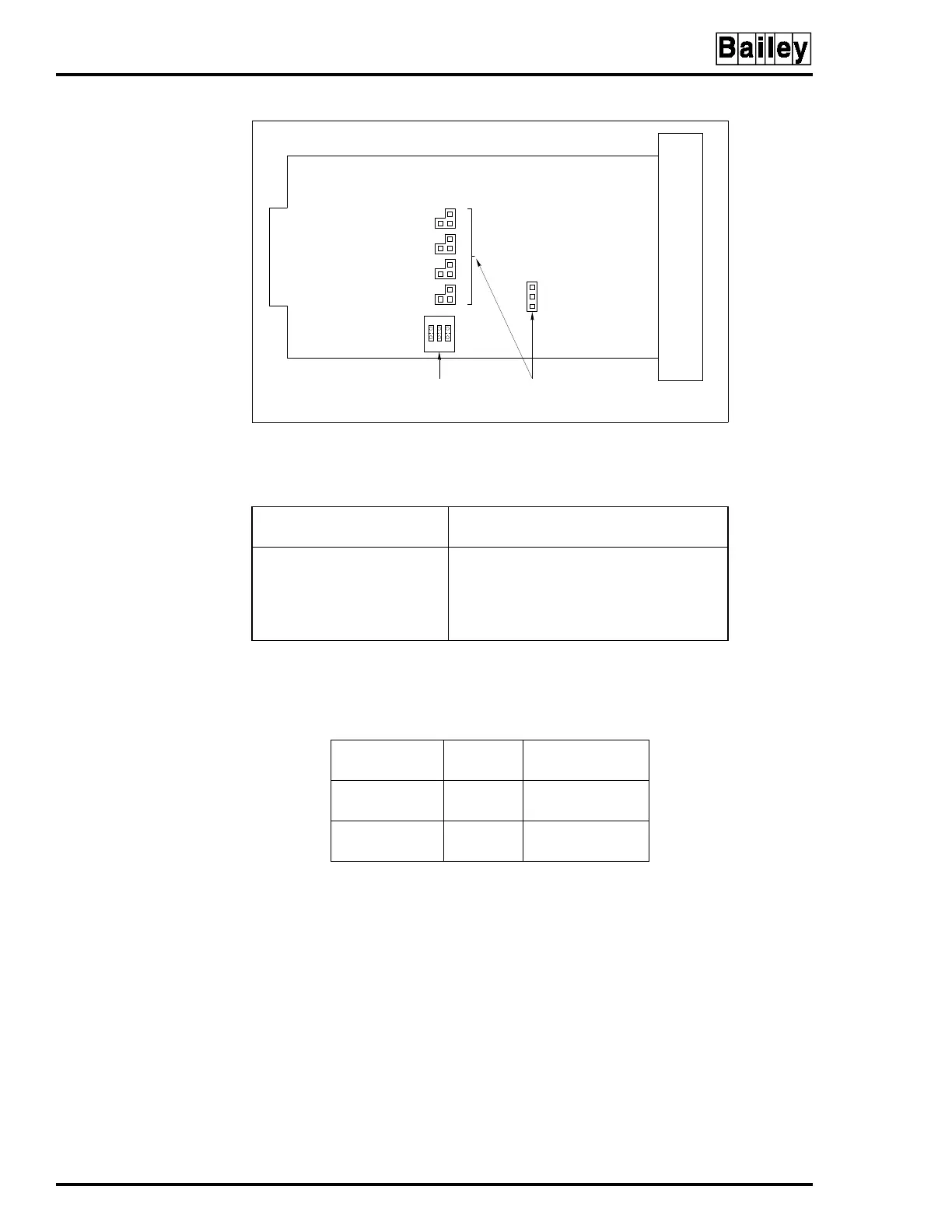

Figure F-2. Digital Control Station Board
Table F-1. Dipshunt XU16 Settings
Strap Numbers
12345678
Function
00110011 4 to 20 mA analog input
1
.
11001100 Universal actuator analog input.
00001100 RW electric drive analog input
1
.
11000011 4 to 20 mA analog input.
NOTES:
0 = Open or cut jumper (cut jumpers at both ends to completely remove), 1 = Intact or
shorted jumper.
1. Connected to the 4 to 20 mA output locally.
Table F-2. Jumper J1 and J2 Settings
Jumper
Jumper
Position
Function
J1
J2
1-2
1-2
RW electric drive
operation.
J1
J2
2-3
2-3
Universal electric
drive operation.
NOTE:
Jumper settings do not affect 4 to 20 mA outputs.
T00506A
12
3
JP3
12
3
JP2
2
1
3
JP5
12
3
JP4
12
3
JP1
132
OPEN
SW1
STATION ADDRESS
SWITCH
OPTION
JUMPERS
