15

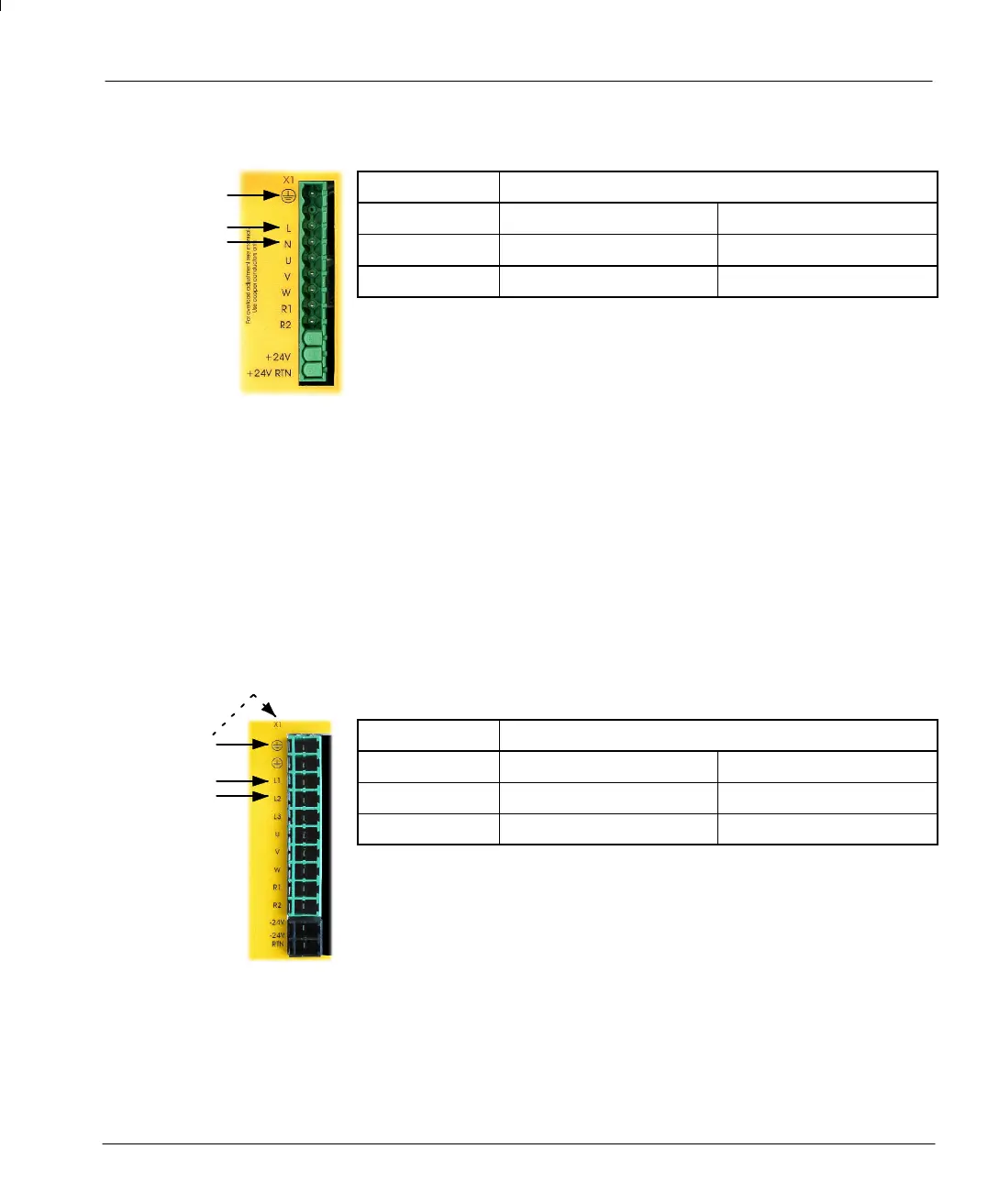

2.3.5 Single ph ase conn ectio n to package size A or B
Location Connector X1, single or 2-part connector
Part number MD1A... MD2A...
Input voltage 115VAC, 1φ line to neutral 230VAC, 1φ line to neutral
Range 97 -125VAC 220-250VAC
Note: For s ingle phase connection, the voltage ripple on the DC-bus is 25Vp-p for 5A (the peak
current for a 2.5A MintDrive) and 50Vp-p for 10A (the peak current for a 5A MintDrive).
This can limit the maximum speed of the motor.
Tightening torque for terminal block connections is 4.4~5.3 lbin (0.5~0.6Nm).
The threaded holes in the top and bottom of the enclosure are for cable clamps (provided).
The holes are threaded for M4 bolts no longer than 0.47” (12mm) in length. Longer bolts
may short circuit the electrical components inside the MintDrive.
2.3.6 Single ph ase conn ectio n to package size C
Location Connector X1, single or 2-part connector
Part number MD1A... MD2A...
Input voltage 115VAC, 1φ line to neutral 230VAC, 1φ line to neutral
Range 97 -125VAC 220-250VAC
Note: For s ingle phase connection, the voltage ripple on the DC-bus is 25Vp-p for 5A (the peak
current for a 2.5A MintDrive) and 50Vp-p for 10A (the peak current for a 5A MintDrive). This
can limit the maximum speed of the motor.
Tightening torque for terminal block connections is 4.4~5.3 lbin (0.5~0.6Nm).
The threaded holes in the top and bottom of the enclosure are for cable clamps (provided).
The holes are threaded for M4 bolts no longer than 0.47” (12mm) in length. Longer bolts
may short circuit the electrical components inside the MintDrive.
L
N
E
L
N
E
or
Earth stud
