48
3.4.7 Optional breakout board for connector X5
An optional screw connection fitting is available s hould you wish to purchase a break -out board. The
break-out board, often referred to as a ’card’, mounts on a 35mm DIN rail. The board has two -part
screw terminals for all of the digital inputs, digital outputs, analog inputs and analog outputs of the
MintDrive’s X5 connector, together with indicator LEDs.

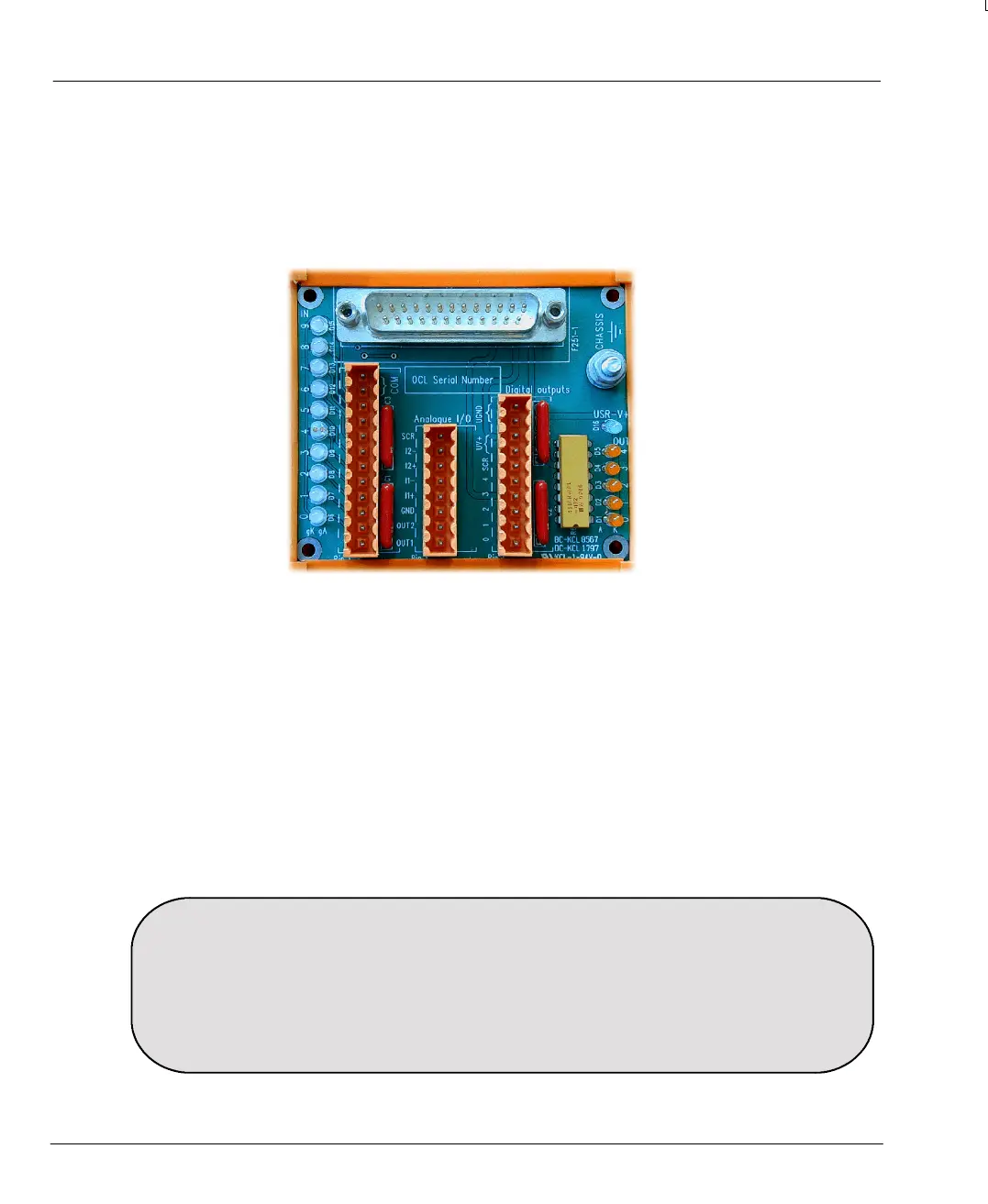

Figure 27 - Optional breakout board
The catalog number for the breakout board is OPT017-501. A 2m (6ft) cable is available with correctly
shielded cables (catalog number CBL022-501).
3.4.8 CAN peripherals
If you wish to make connections to a CAN network see Appendix B, before continuing with section 4.
This completes the input/output wiring.
You should read the following sections in sequence before
attempting to start the MintDrive.
