3.2.4 Analog Outputs, Bipolar - X11
Location Connector X11
Pins 6 7
Name AOUT2 AOUT3
Mint keyword AUXDAC.2 AUXDAC.3
Description Two independent assignable outputs.
Output range: ±10VDC.
Resolution: 8 -bit with sign.
Output current: 1mA maximum.
Update interval: 2ms.
Two programmable analog outputs that can be used to provide real time status of various control
conditions. The voltage from the output buffer is supplied through a 50Ω resistor for short circuit
protection.
AOUT2
(AUXDAC.2)
6
7
X11
Output 2
Output 3
1
GND
AOUT3
(AUXDAC.3)

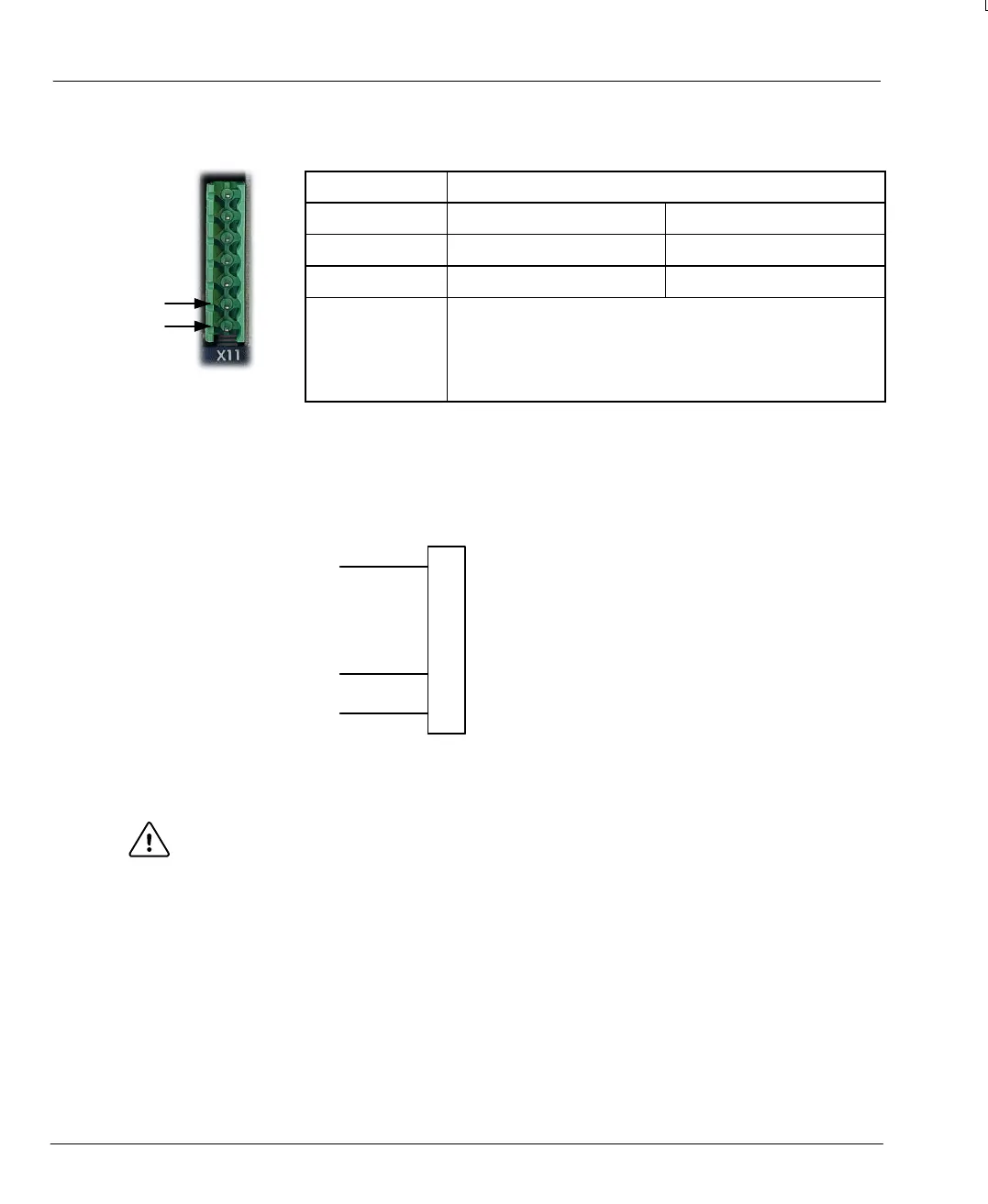

Figure 13 - AOUT2 and AOUT3 analog outputs
CAUTION: Following power-up or a system reset, both outputs will initially be set at
approximately +10V. This condition will remain, for a short period, during the
software initialization process. For this reason, care should be taken if this output
is being used as a drive reference for a speed controller.
