12.1 Magnets
Fig. 12-1:
BTL-P-1013-4R
BTL-P-1013-4S
BTL-P-1012-4R
BTL-P-1014-2R
BTL-P-0814-GR-PAF

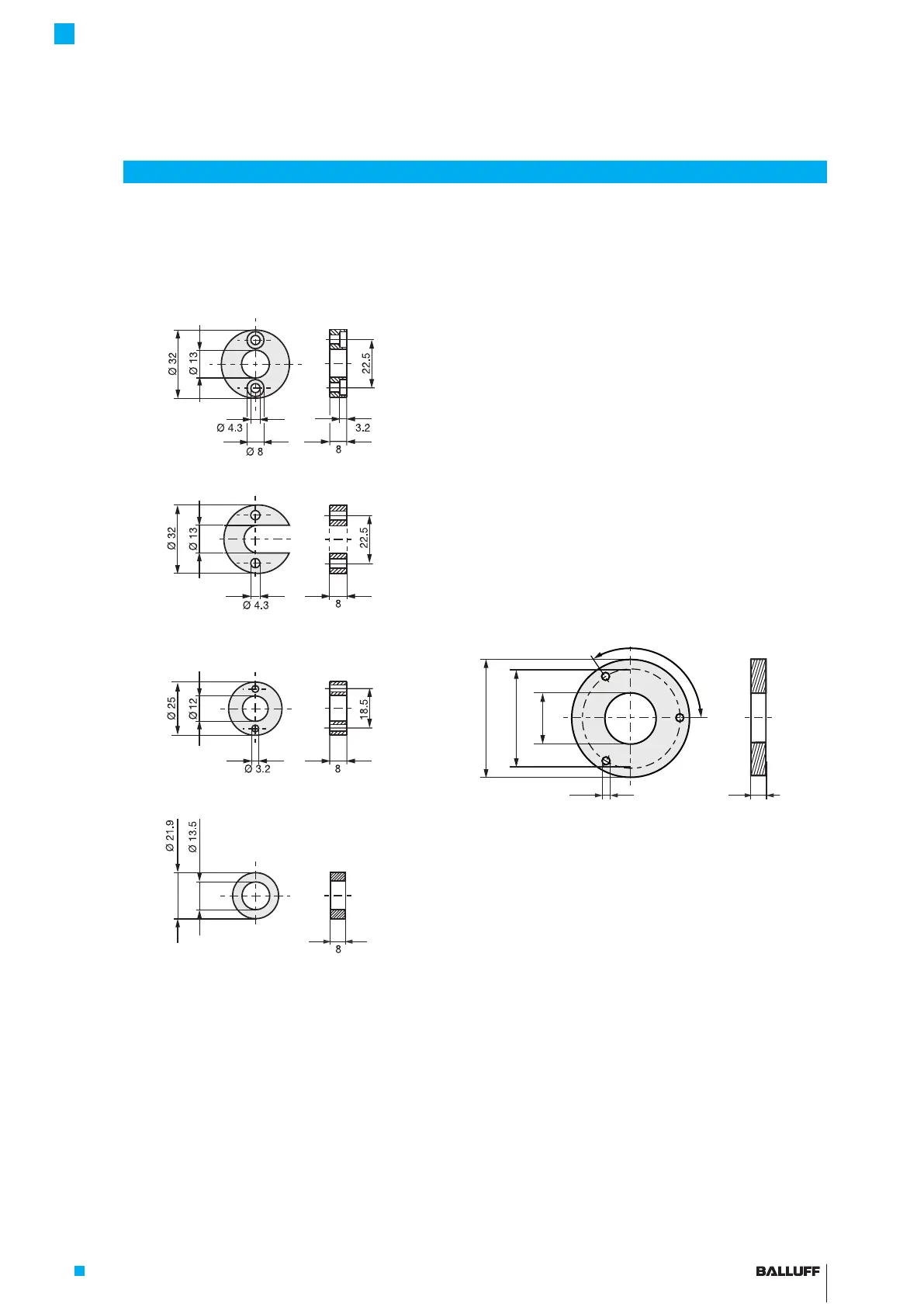

Magnet installation dimensions
BTL-P-1013-4R, BTL-P-1013-4S, BTL-P-1012-4R,
BTL-P-1014-2R:
Weight: Approx. 10g
Housing: Anodized aluminum
The scope of delivery for
BTL-P-1013-4R, BTL-P-1013-4S, BTL-P-1012-4R
magnets includes:
Spacer: 8mm, material: polyoxymethylene
(POM)
BTL5-P-4500-1 magnet (solenoid):
Weight: Approx. 90g
Housing: Plastic
Operating
temperature:
- 40°C to + 60°C
BTL-P-1028-15R (special accessories for
applications with a supporting rod):
Weight: Approx. 68g
Housing: Anodized aluminum
Ø 4.3
120°
Ø 28 Ø 54 Ø 65
8
12.2 Mounting nut
– M18×1.5 mounting nut:
BTL-A-FK01-E-M18×1.5
– 3/4”-16UNF mounting nut:
BTL-A-FK01-E-3/4”-16UNF
12
Accessories
BTL7-A/C/E/G_ _ _-M_ _ _ _-A/B/Y/Z(8)-S32/S115/S135/S140/KA_ _/FA_ _
Micropulse Transducer - Rod Style
