Banner Q4X Series User Manual

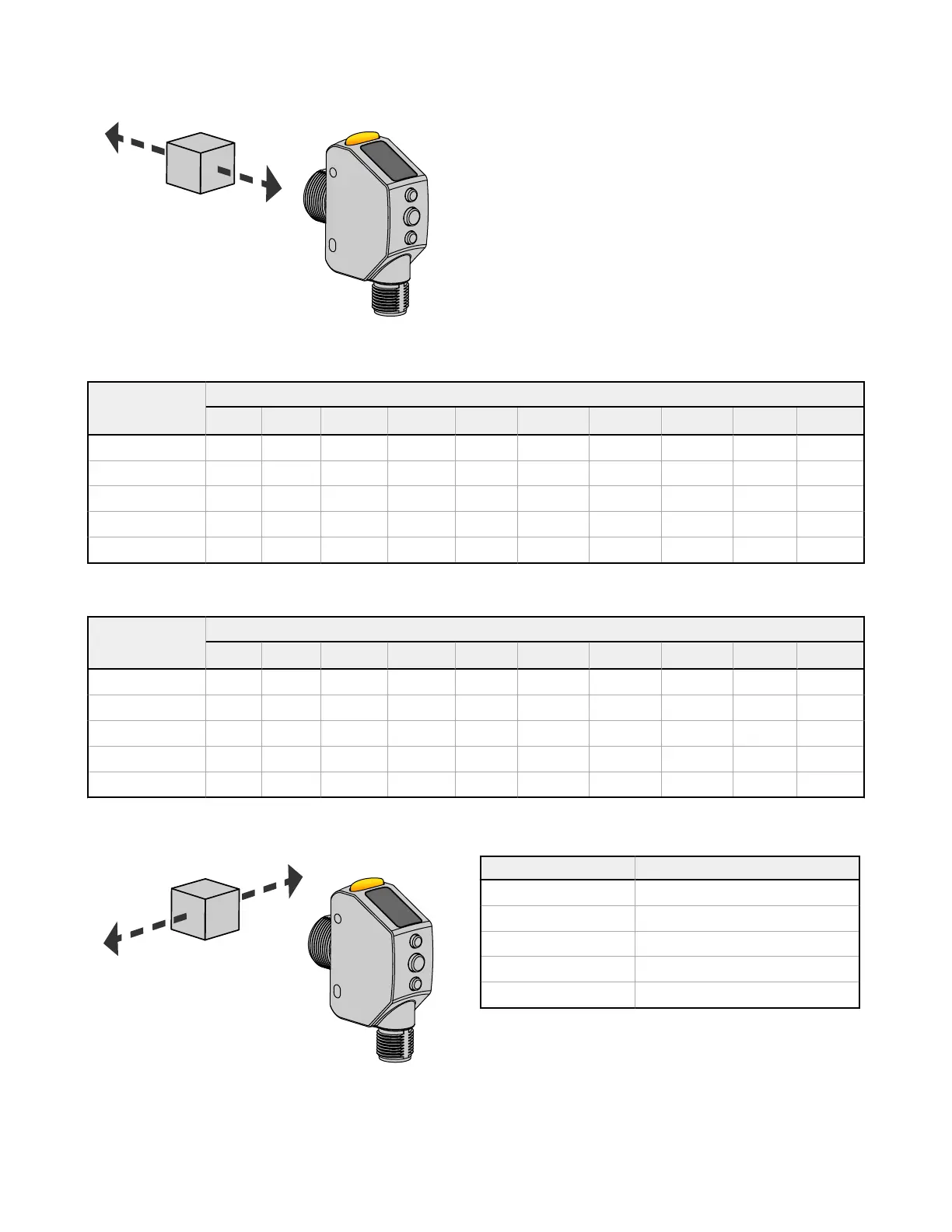

Table 3: Response Speed for 100/110, 300/310, and 500/510 models
Base
Measurement
Rate
Filter Setting
1 2 4 8 16 32 64 128 256 512
0.3 ms 0.5 ms 0.75 ms 1.5 ms 4 ms 8 ms 15 ms 30 ms 60 ms 120 ms 240 ms
0.5 ms 0.5 ms 1 ms 2 ms 5 ms 10 ms 25 ms 50 ms 100 ms 200 ms 350 ms
1 ms 1 ms 3 ms 5 ms 10 ms 20 ms 40 ms 75 ms 150 ms 300 ms 600 ms
2.5 ms 2.5 ms 5 ms 10 ms 25 ms 45 ms 80 ms 160 ms 320 ms 640 ms 1280 ms
5 ms 5 ms 10 ms 20 ms 40 ms 80 ms 160 ms 320 ms 640 ms 1280 ms 2560 ms
Table 4: Response Speed for 600/610 models
Base
Measurement
Rate
Filter Setting
1 2 4 8 16 32 64 128 256 512
0.4 ms 0.5 ms 1.2 ms 2.5 ms 7 ms 13 ms 25 ms 50 ms 100 ms 200 ms 400 ms
0.8 ms 0.8 ms 1.6 ms 3.5 ms 8 ms 16 ms 40 ms 80 ms 160 ms 320 ms 560 ms
1.5 ms 1.5 ms 4.5 ms 8 ms 15 ms 30 ms 60 ms 115 ms 225 ms 450 ms 900 ms
2.5 ms 2.5 ms 5 ms 10 ms 20 ms 40 ms 80 ms 160 ms 320 ms 640 ms 1300 ms
5 ms 5 ms 10 ms 20 ms 40 ms 80 ms 160 ms 320 ms 640 ms 1300 ms 2500 ms
Table 5: Lateral Entry Response
Base Measurement Rate Lateral Entry Response
0.4 ms 2 ms
0.8 ms 5 ms
1.5 ms 15 ms
2.5 ms 25 ms
5 ms 50 ms
When lateral entry needs to be considered, the lateral entry
response is added to calculate the total response time.
Q4X Stainless Steel Analog Laser Sensor
www.bannerengineering.com - Tel: + 1 888 373 6767 11
