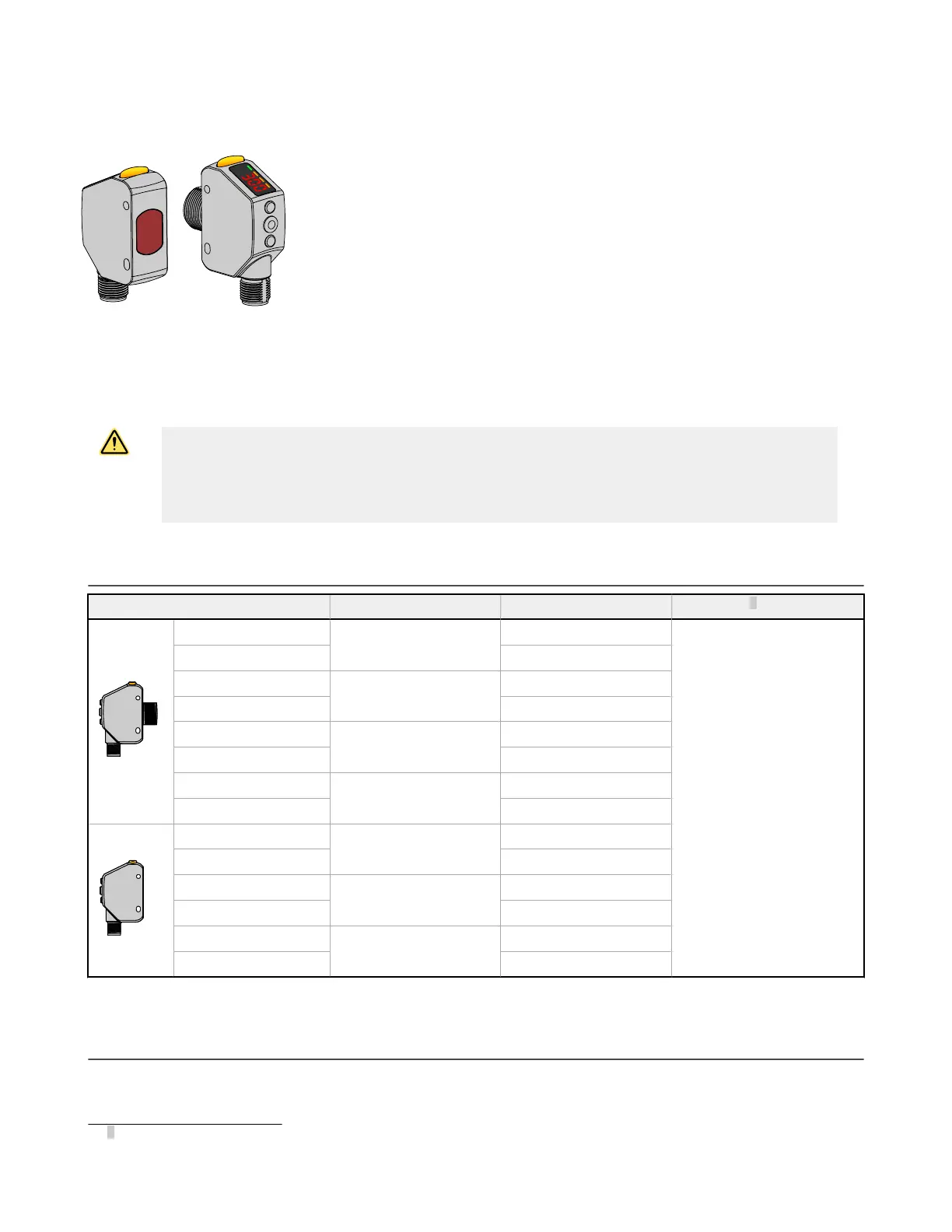

1 Product Description
Class 1 laser CMOS analog sensor with an analog output. Patent pending.
• Reliably detects submillimeter distance changes
• Continuous measurement of challenging targets from dark to reflective, out to 500
mm (threaded barrel models) or 310 mm (flush mount models), depending on model
• Resists mechanical impact, over tightening, and extreme vibration
• Simplified user experience with analog (V or mA) or distance (mm) readout from the
angled, four-digit display
•
Easy setup with responsive buttons
• Durable and robust construction resists mechanical impact, over tightening, and
extreme vibration
• FDA grade stainless steel, rated to IP67, IP68, and IP69K, ECOLAB
®
certified
chemically-resistant materials, and laser marked sensor information withstands
aggressive cleaning procedures
• Superior ambient light resistance
For illustration purposes, the threaded barrel model Q4X images are used throughout this document.
WARNING: Not To Be Used for Personnel Protection
Never use this device as a sensing device for personnel protection. Doing so could lead to serious
injury or death. This device does not include the self-checking redundant circuitry necessary to allow its
use in personnel safety applications. A sensor failure or malfunction can cause either an energized or de-
energized sensor output condition.
1.1 Models
Model Sensing Range Output Connection
1
Q4XTULAF600-Q8
25 mm to 600 mm (0.98 in
to 23.62 in)
Analog voltage (0 to 10 V)
Integral 5-pin M12 male quick
disconnect
Q4XTILAF600-Q8 Analog current (4 to 20 mA)
Q4XTULAF500-Q8
25 mm to 500 mm (0.98 in
to 19.68 in)
Analog voltage (0 to 10 V)
Q4XTILAF500-Q8 Analog current (4 to 20 mA)
Q4XTULAF300-Q8
25 mm to 300 mm (0.98 in
to 11.81 in)
Analog voltage (0 to 10 V)
Q4XTILAF300-Q8 Analog current (4 to 20 mA)
Q4XTULAF100-Q8
25 mm to 100 mm (0.98 in
to 3.94 in)
Analog voltage (0 to 10 V)
Q4XTILAF100-Q8 Analog current (4 to 20 mA)
Q4XTULAF610-Q8
35 mm to 610 mm (1.38 in
to 24.02 in)
Analog voltage (0 to 10 V)
Q4XTILAF610-Q8 Analog current (4 to 20 mA)
Q4XFULAF310-Q8
35 mm to 310 mm (1.38 in
to 12.20 in)
Analog voltage (0 to 10 V)
Q4XFILAF310-Q8 Analog current (4 to 20 mA)
Q4XFULAF110-Q8
35 mm to 110 mm (1.38 in
to 4.33 in)
Analog voltage (0 to 10 V)
Q4XFILAF110-Q8 Analog current (4 to 20 mA)
1.2 Overview
The Q4X Analog Sensor is a Class 1 laser CMOS measuring sensor that uses a 0 to 10 V (4 to 20 mA) output to represent
the distance measured.
1
QD models require a mating cordset.
Q4X Stainless Steel Analog Laser Sensor
www.bannerengineering.com - Tel: + 1 888 373 6767 3
