5 Abbreviations

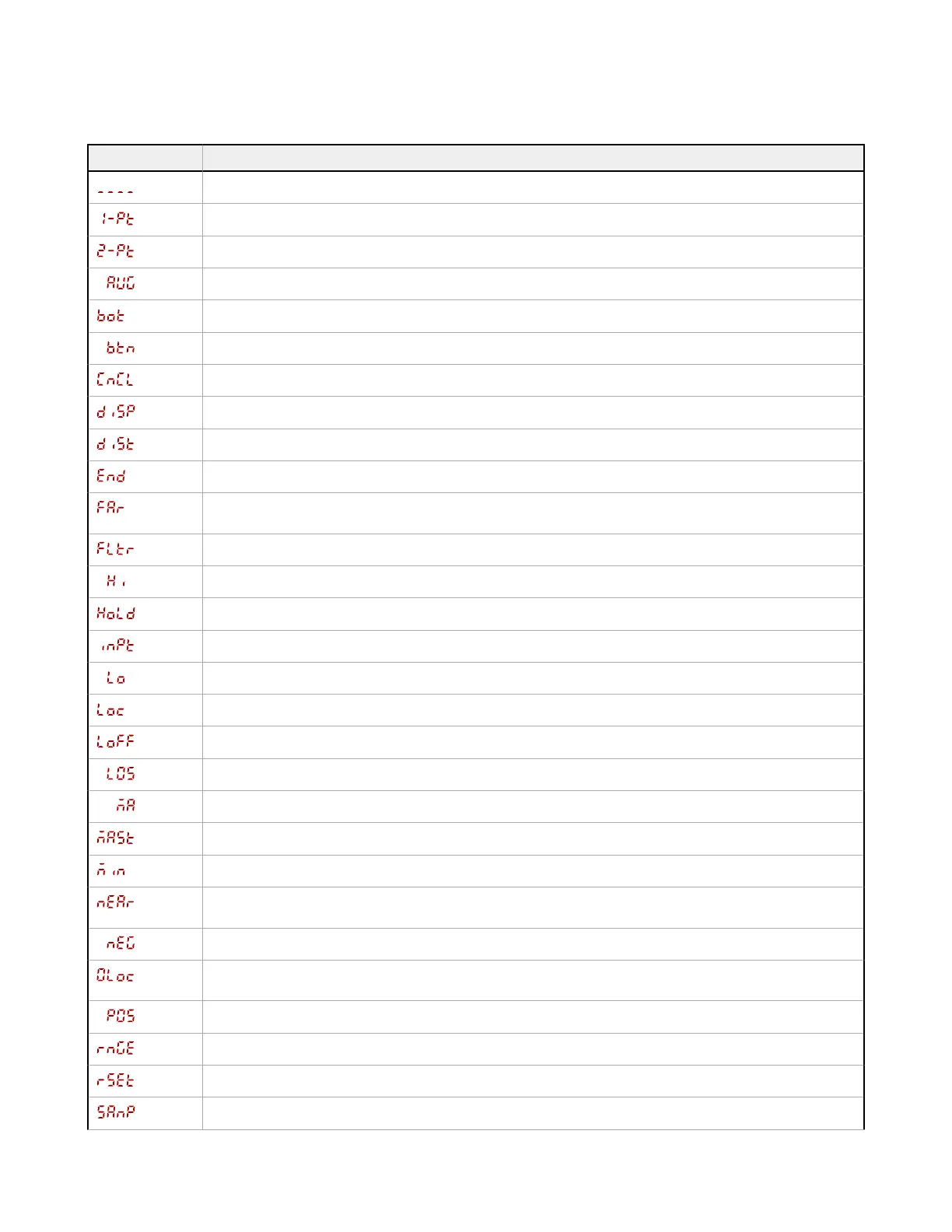

The following table describes the abbreviations used on the sensor display and in this manual.
Abbreviation Description
No valid signal in range
One-point TEACH
Two-point TEACH
Average—Trigger output of Average measurement value
Bottom
Button
Cancel
Display read
Distance
End—exit the sensor menu
Far zero reference location—the maximum range is 0 and the measurement increase as the target
moves closer to the sensor
Filter
Trigger output of maximum measurement value
Hold the last value
Input wire function
Trigger output of minimum measurement value
Lock/locked
Laser off
Loss of signal
milliAmp
Master
Min
Near zero reference location—the end of the barrel is 0 and the measurement increase as the target
moves further away from the sensor
Negative slope
Allows teaching and adjusting 0 V and 10 V (4 mA and 20 mA) settings, while locking out access to other
sensor settings.
Positive slope
Range—Hi to Lo
Reset to factory defaults
Sample—Trigger output of a sampled measurement value
Q4X Stainless Steel Analog Laser Sensor
www.bannerengineering.com - Tel: + 1 888 373 6767 29
