2 Installation
2.1 Install the Safety Label
The safety label must be installed on Q4X sensors that are used in the
United States.
Note: Position the label on the cable in a location that
has minimal chemical exposure.
1. Remove the protective cover from the adhesive on the label.
2. Wrap the label around the Q4X cable, as shown.
3. Press the two halves of the label together.

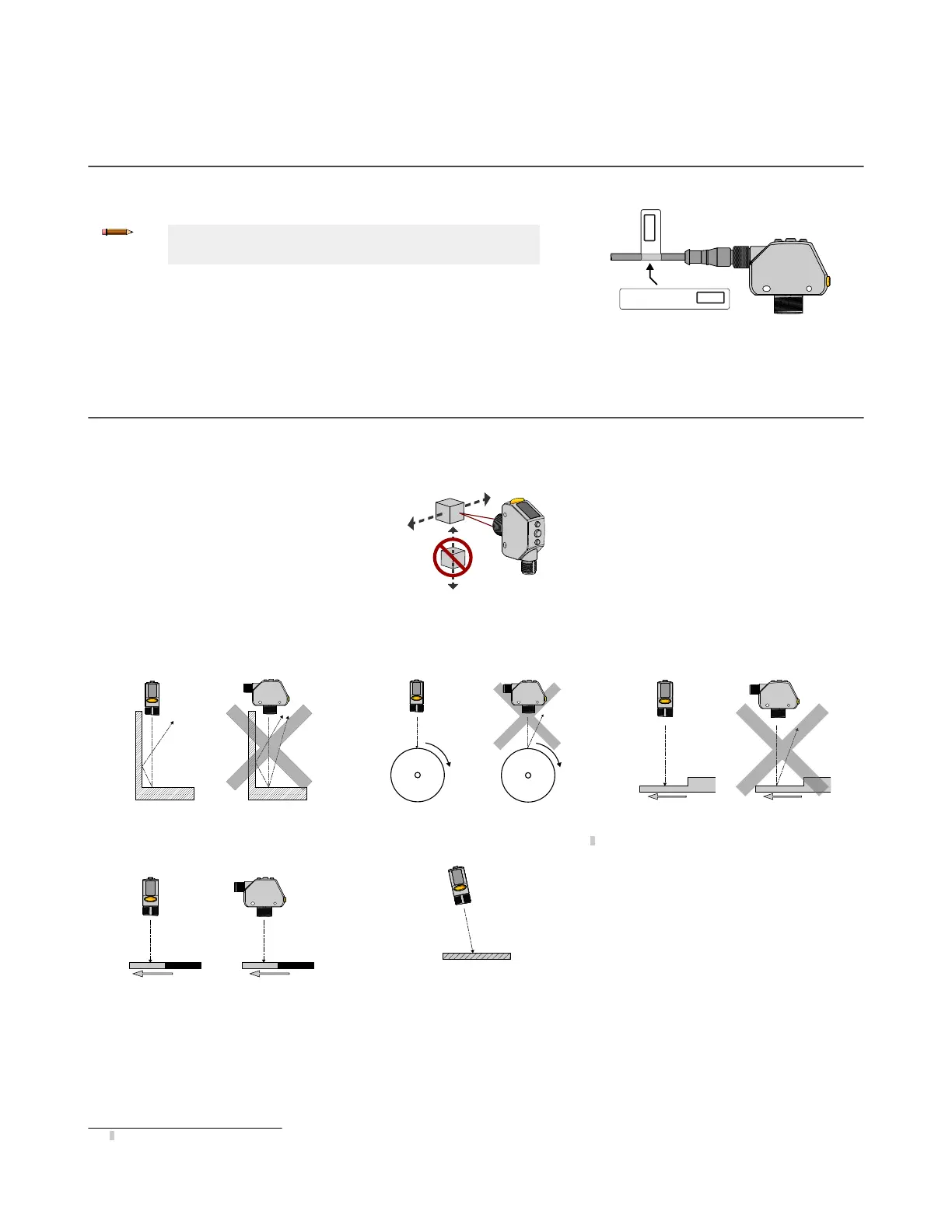

Figure 3. Safety Label Installation
COMPLIES WITH IEC 60825-1:2007
CLASS 1
LASER PRODUCT
COMPLIES WITH 21 CFR 1040.10 AND 1040.11
EXCEPT FOR DEVIATI
ONS PURSUANT TO
LASER NOTICE No. 50, DATED JUNE 24, 2007.
BANNER ENGINEERING CORP.
9714 10TH AVENUE NORTH
MINNEAPOLIS, MN 55441
COMPLIES WITH IEC 60825-1:2007
CLASS 1
LASER PRODUCT
2.2 Sensor Orientation
Optimize detection reliability and performance with correct sensor-to-target orientation. To ensure reliable detection, orient
the sensor as shown in relation to the target to be detected.
Figure 4. Optimal Orientation of Target to Sensor
See the following figures for examples of correct and incorrect sensor-to-target orientation as certain placements may pose
problems for sensing some targets.
Figure 5. Orientation by a wall
Figure 6. Orientation for a turning object
Figure 7. Orientation for a height difference
Figure 8. Orientation for a color or luster
difference
Horizontal
Orientation
Vertical
Orientation
(Optimal)
Figure 9. Orientation for highly reflective target
2
Reflective
Surface
(optional)
2
Applying tilt to sensor may improve performance on reflective targets. The direction and magnitude of the tilt depends on the application, but a 15° tilt is often sufficient.
Q4X Stainless Steel Analog Laser Sensor
6 www.bannerengineering.com - Tel: + 1 888 373 6767
