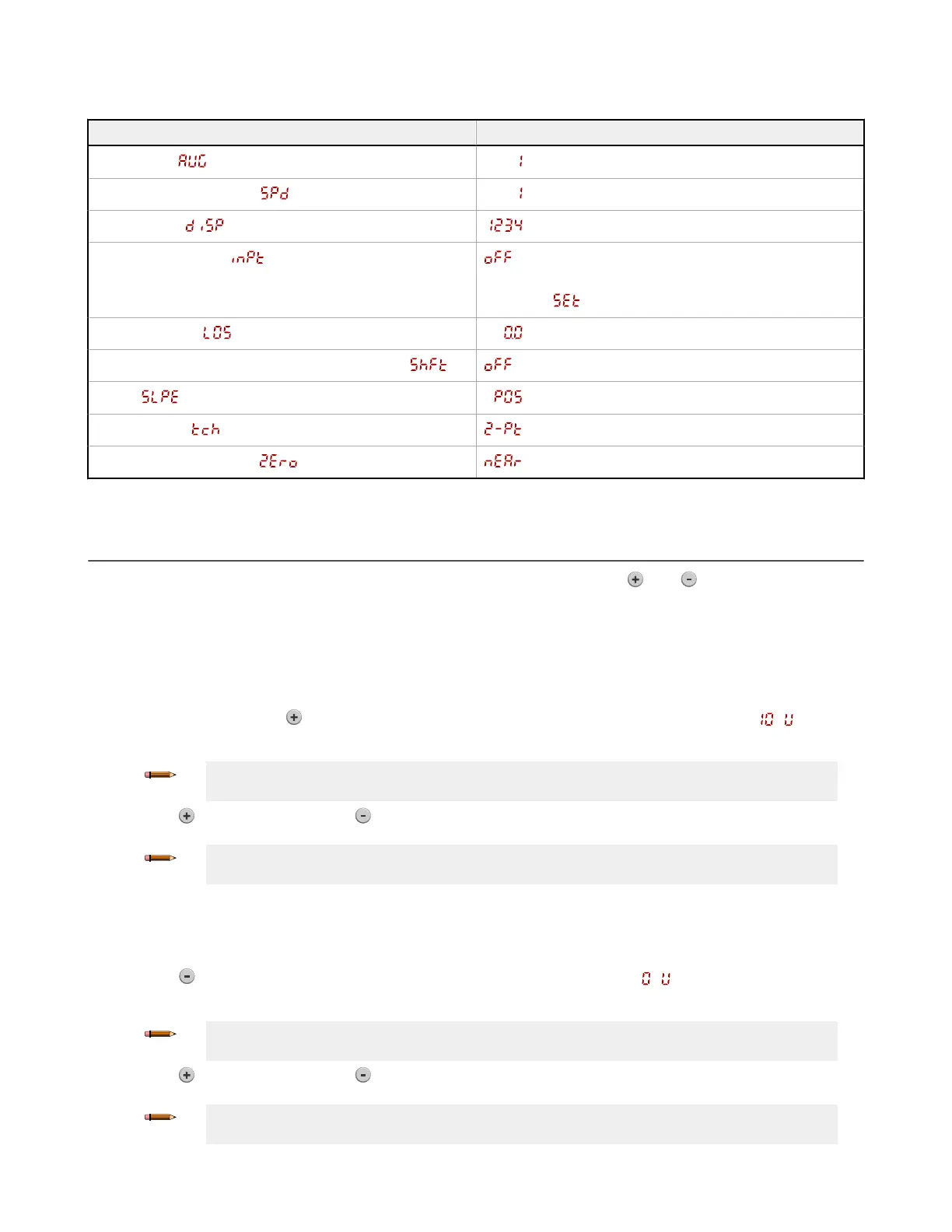

Factory Default Settings
Setting Factory Default
Averaging ( )
Base Measurement Rate ( ) —1 ms
Display View ( ) —Right-reading, no sleep mode
Input Wire Function ( ) —Ignore all remote input pulses
If the sensor was reset using the remote input, the sensor
remains in mode to allow use of the remote input.
Loss of Signal (
) —0 V (4 mA)
Shift the Zero Reference Location after a TEACH ( ) —0 = the front of the sensor
Slope ( ) —positive
TEACH Mode ( ) —Two-point TEACH
Zero Reference Location ( ) —Measurement increases further from sensor
3.2 Manual Adjustments
Manually adjust the distance set for the 0 V (4 mA) and 10 V (20 mA) values using the and buttons. The available
adjustments vary depending on the TEACH mode selected.
3.2.1 Manual Adjustments in Two-Point TEACH Mode
Adjust the 10 V (20 mA) Point
1.
From Run mode, press to view and adjust the distance associated with the 10 V (20 mA) point. displays
briefly, then the value slowly flashes indicating it can be changed.
Note: If no changes are made within 8 seconds, the current distance value flashes quickly and the
sensor returns to Run mode.
2. Press to move the value up or to move the value down.
Note: If no additional changes are made within 4 seconds, the current distance value flashes
quickly and the sensor returns to Run mode.
3. Press Select to confirm the new distance value. The new distance flashes rapidly, the new setting is accepted, and
the sensor returns to Run mode.
Adjust the 0 V (4 mA) Point
1. Press to view and adjust the distance associated with the 0 V (4 mA) point. flashes briefly, then the value
flashes.
Note: If no changes are made within 8 seconds, the current distance value flashes quickly and the
sensor returns to Run mode.
2. Press to move the value up or to move the value down.
Note: If no additional changes are made within 4 seconds, the current distance value flashes
quickly and the sensor returns to Run mode.
