7 Accessories

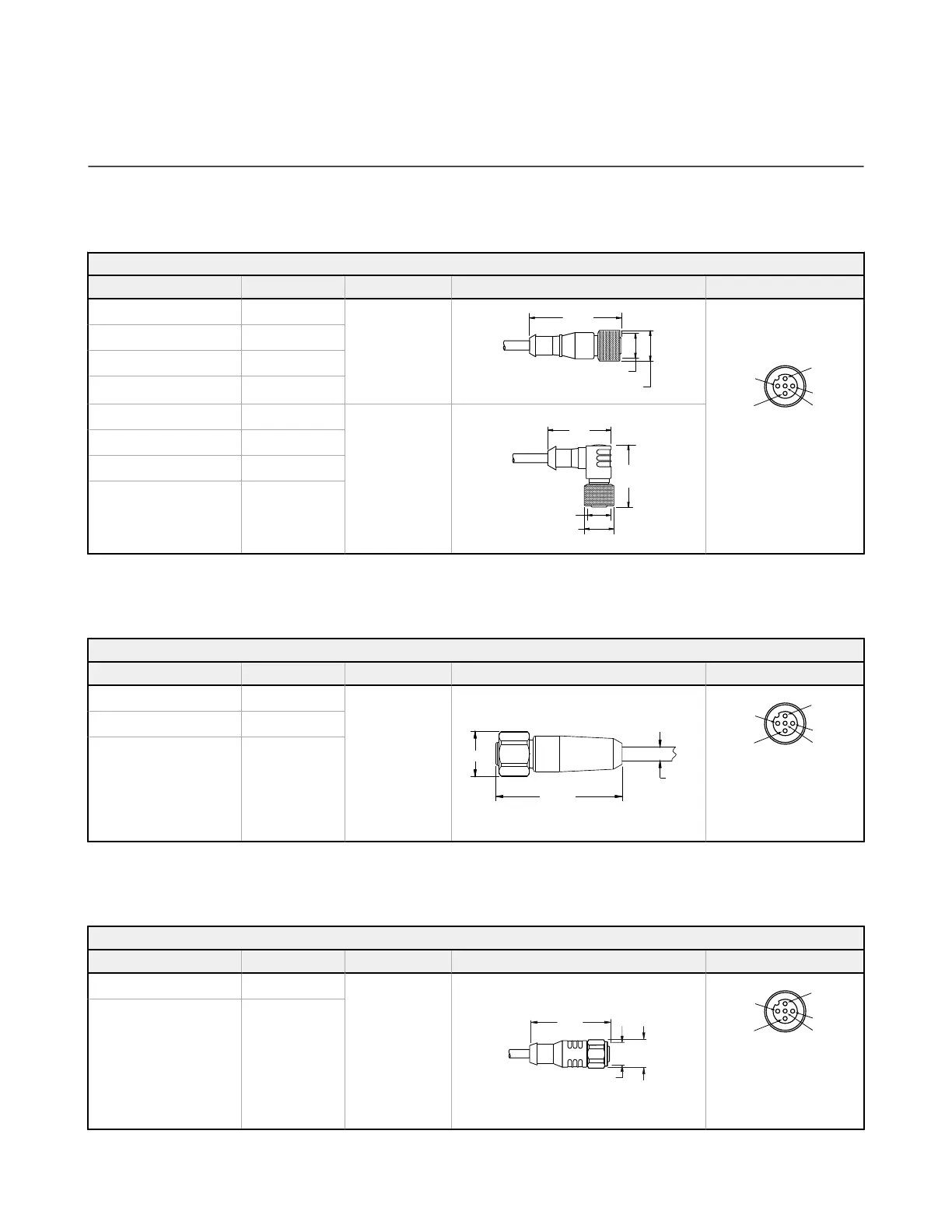

7.1 Cordsets
All measurements are listed in millimeters, unless noted otherwise.
Standard Cordsets
Cable: PVC jacket, PUR (polyurethane) connector body, nickel-plated brass coupling nut
Environmental Rating: IEC IP67
5-Pin Threaded M12 Cordsets with Shield—Single Ended
Model Length Style Dimensions Pinout (Female)
MQDEC2-506 2 m (6.56 ft)
Straight
44 Typ.
ø 14.5
M12 x 1
2
3
4
1
5
1 = Brown
2 = White
3 = Blue
4 = Black
5 = Gray
MQDEC2-515 5 m (16.4 ft)
MQDEC2-530 9 m (29.5 ft)
MQDEC2-550 15 m (49.2 ft)
MQDEC2-506RA 2 m (6.56 ft)
Right-Angle
32 Typ.
[1.26"]
30 Typ.
[1.18"]
ø 14.5 [0.57"]
M12 x 1
MQDEC2-515RA 5 m (16.4 ft)
MQDEC2-530RA 9 m (29.5 ft)
MQDEC2-550RA 15 m (49.2 ft)
5-Pin Threaded M12/Euro-Style Cordsets—Washdown Stainless Steel
Cable: PVC jacket and over-mold, EPDM o-ring, 316L coupling nut
Environmental Rating: IP69K per DIN 40050-9
5-Pin Threaded M12 Stainless Steel Washdown Cordsets—Single Ended
Model Length Style Dimensions Pinout (Female)
MQDC-WDSS-0506 2 m (6.56 ft)
Straight
43.5 mm
Ø4.8 mm
Ø15.5 mm
2
3
4
1
5
1 = Brown
2 = White
3 = Blue
4 = Black
5 = Gray
MQDC-WDSS-0515 5 m (16.4 ft)
MQDC-WDSS-0530 9 m (29.5 ft)
5-Pin Threaded M12/Euro-Style Cordsets—Washdown, with Shield
Cable: Polypropylene jacket and connector body, stainless steel coupling nut
Environmental Rating: IEC IP68
5-Pin Threaded M12 Washdown Cordsets with Shield—Single Ended
Model Length Style Dimensions Pinout (Female)
MQDCWD-506 2 m (6.56 ft)
Straight
42 Typ.
[1.65"]
ø 15.0
[0.57"]
M12 x 1
2
3
4
1
5
1 = Brown
2 = White
3 = Blue
4 = Black
5 = Gray
MQDCWD-530 9 m (29.5 ft)
Q4X Stainless Steel Analog Laser Sensor
32 www.bannerengineering.com - Tel: + 1 888 373 6767
