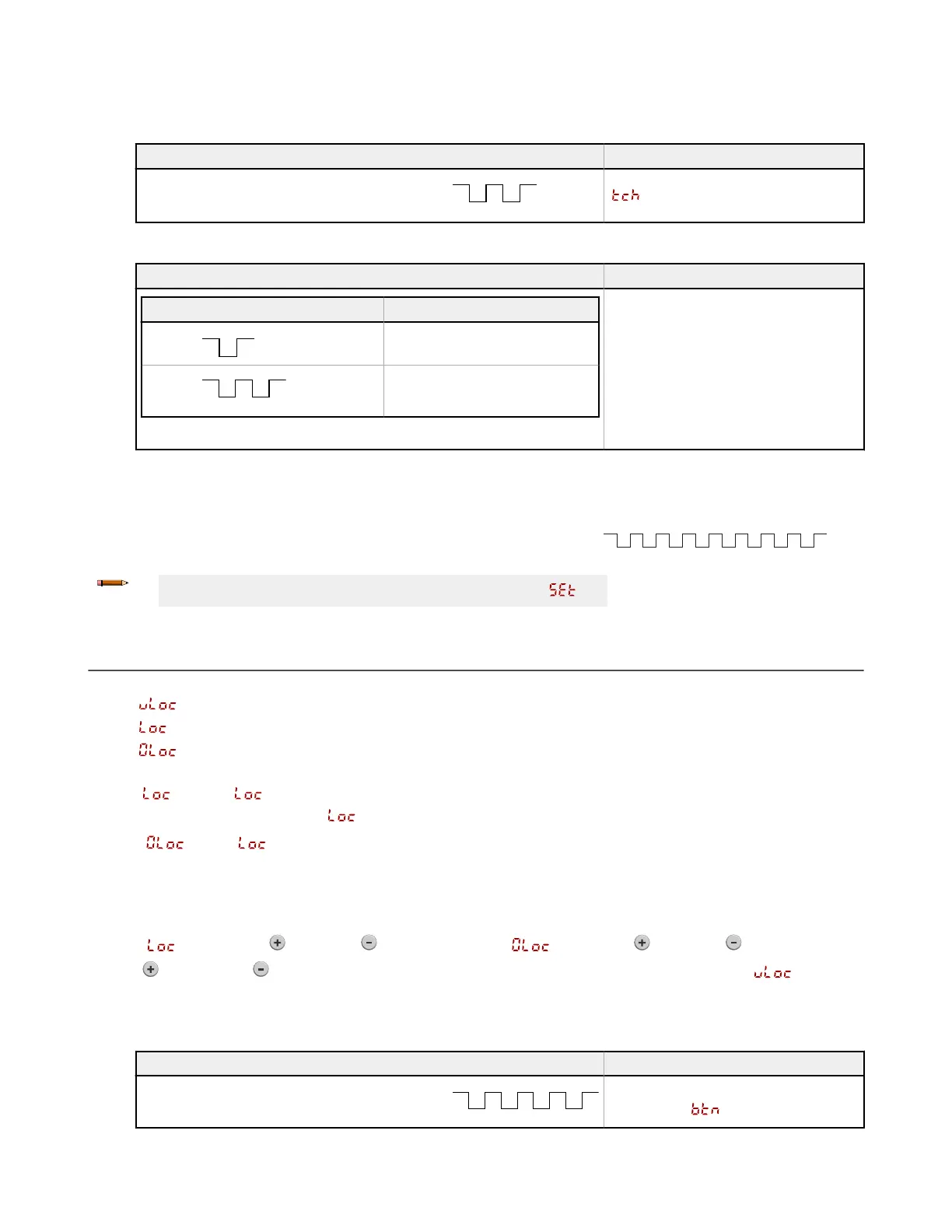

3.3.1 Select the TEACH Mode Using the Remote Input
1. Access the TEACH selection.
Action Result
Double-pulse the remote input.
displays.
2. Select the desired TEACH mode.
Action Result
Pulses TEACH Mode
1
Two-point TEACH
2
One-point TEACH
The selected TEACH method displays for a
few seconds and the sensor returns to Run
mode.
3.3.2 Reset to Factory Defaults Using the Remote Input
Eight-pulse the remote input to apply the factory defaults and return to Run mode.
Note: The input wire function remains at remote teach input ( ).
3.4 Locking and Unlocking the Sensor Buttons
Use the lock and unlock feature to prevent unauthorized or accidental programming changes. Three settings are available:
• —The sensor is unlocked and all settings can be modified (default).
•
— The sensor is locked and no changes can be made.
• —The value associated with 0 V (4 mA) and 10 V (20 mA ) can be changed by teaching or manual
adjustment, but no sensor settings can be changed through the menu.
When in mode, displays when the (SELECT)(TEACH) button is pressed. The analog point displays when (+)
(DISP) or (-)(MODE) are pressed, but displays if the buttons are pressed and held.
When in mode, displays when (+)(DISP) or (-)(MODE) are pressed and held. To access the manual adjust
options, briefly press and release (+)(DISP) or (-)(MODE). To enter TEACH mode, press the
(SELECT)(TEACH) button and
hold for longer than 2 seconds.
Button Instructions
To enter
mode, hold and press four times. To enter mode, hold and press seven times.
Holding and pressing four times unlocks the sensor from either lock mode and the sensor displays .
Remote Input Instructions
1. Access the remote input.
Action Result
Four-pulse the remote input.
The sensor is ready to have the button state
defined and displays.
Q4X Stainless Steel Analog Laser Sensor
18 www.bannerengineering.com - Tel: + 1 888 373 6767
