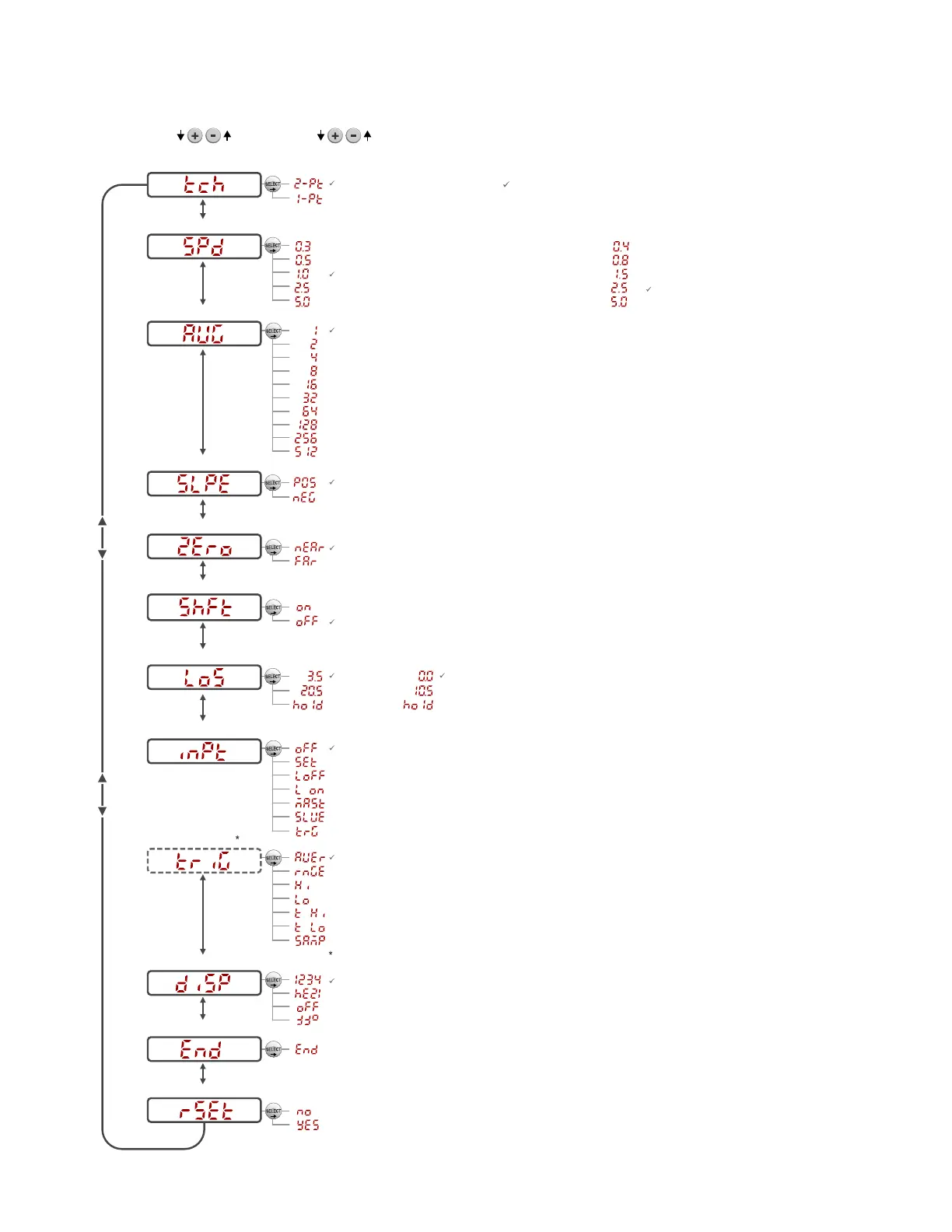

Figure 11. Sensor Menu Map
two-point teach
one-point teach
Top Menu
100/110, 300/310, & 500/510 mm Model Response Speeds
or
near: set zero displayed value to end of 18 mm barrel
far: set zero displayed value to maximum detection range
laser off when pulled low
set: Remote Teach input
off: remote teach input is not active
master
laser on when pulled low
slave
trigger
display on
display on, inverted
display off (enters sleep mode after 60 seconds)
display off, inverted (enters sleep mode after 60 seconds)
end: select to exit setup
no: do not reset to factory defaults
yes: reset to factory defaults
on: move the zero point after each teach
hold
off: zero point is either at end of barrel or
maximum detection range
Teach Process Selection
Base Measurement Rate
Select Zero Reference Location
Shift Zero Reference after Teach
Input Wire Function
Display Read
Exit Setup
Reset to Factory Defaults
Sub Menus
( default setting)
Trigger Mode appears when Input Wire Function is set to “trigger”
set Base Measurement Rate to 0.3 ms
set Base Measurement Rate to 0.5 ms
set Base Measurement Rate to 1.0 ms
set Base Measurement Rate to 5.0 ms
set Base Measurement Rate to 2.5 ms
600/610 mm Model Response Speeds
positive slope
negative slope
Slope
average 1 measurement for analog output
average 2 measurements for analog output
average 4 measurements for analog output
average 8 measurements for analog output
average 16 measurements for analog output
average 32 measurements for analog output
average 64 measurements for analog output
average 128 measurements for analog output
average 256 measurements for analog output
average 512 measurements for analog output
Averaging
set Base Measurement Rate to 0.4 ms
set Base Measurement Rate to 0.8 ms
set Base Measurement Rate to 1.5 ms
set Base Measurement Rate to 5.0 ms
set Base Measurement Rate to 2.5 ms
(3.5 mA)
(20.5 mA)
Loss of Signal
max. distance
range (max. dist - min. dist)
average measurement
track max. distance
min. distance
track min. distance
sample measurement
Trigger Mode
hold
(0 V)
(10.5 V)
voltage modelscurrent models
