7.3 Manual Cropping

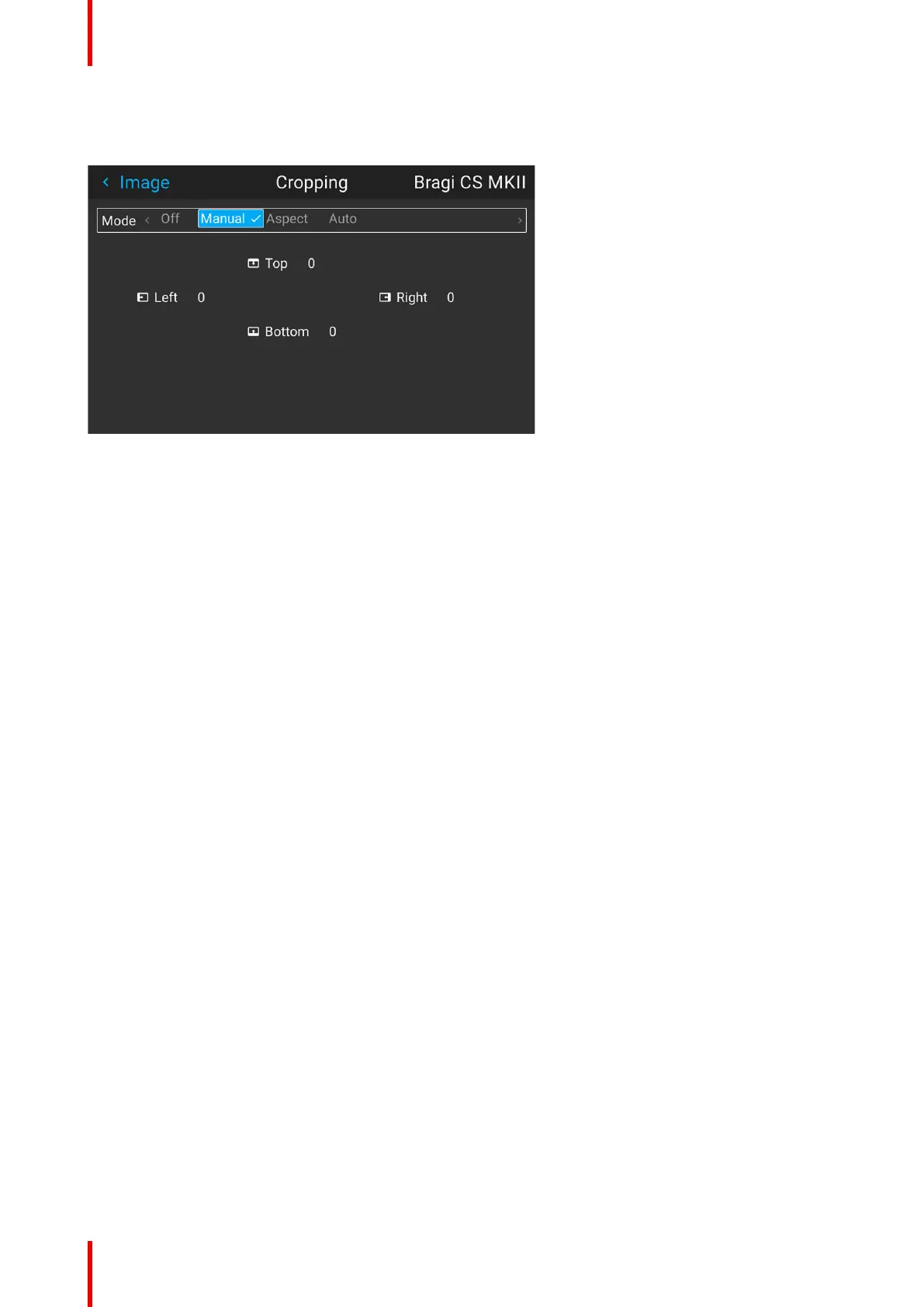

Image 7–2
When the preset values do not match the input format, the manual mode must be used
Enter the menu, and select manual. The OSD will show four numeric values that may be changed, and each
numeric value indicates the number of black display lines that shall be removed.
Select the “top” value, and enter a suitable numeric value. If necessary, do several iterations in order to match
the correct value.
Select the “bottom” value, and enter the same value as for the “top”.
Then the left and right sides must be adjusted. The value entered here must be equal to the vertical lines
removed, multiplied with the aspect ratio, in order to keep the correct correlation between the width and height
. Example: removed 200 lines in 16:9 format: 200 x (16/9) = number of lines to remove on each side.
To keep the subtitles
You can also use the manual cropping to include part of the bottom black bar just enough to include the
subtitles when that is being used.
Select the “top” value, and enter a suitable numeric value. If necessary, do several iterations in order to match
the correct value to remove the complete black bar.
Then do the same for the “bottom” value until you have removed just enough to still see the subtitles.
