8.1.1 Zoom / Focus
Zoom and focus
Enter the menu Installation / Lens / Zoom Focus
Use either the keypad arrows, or the remote control for this operation.
Use the navigational arrows, up and down, to adjust zoom.
Use the navigational arrows, left and right, to adjust focus.

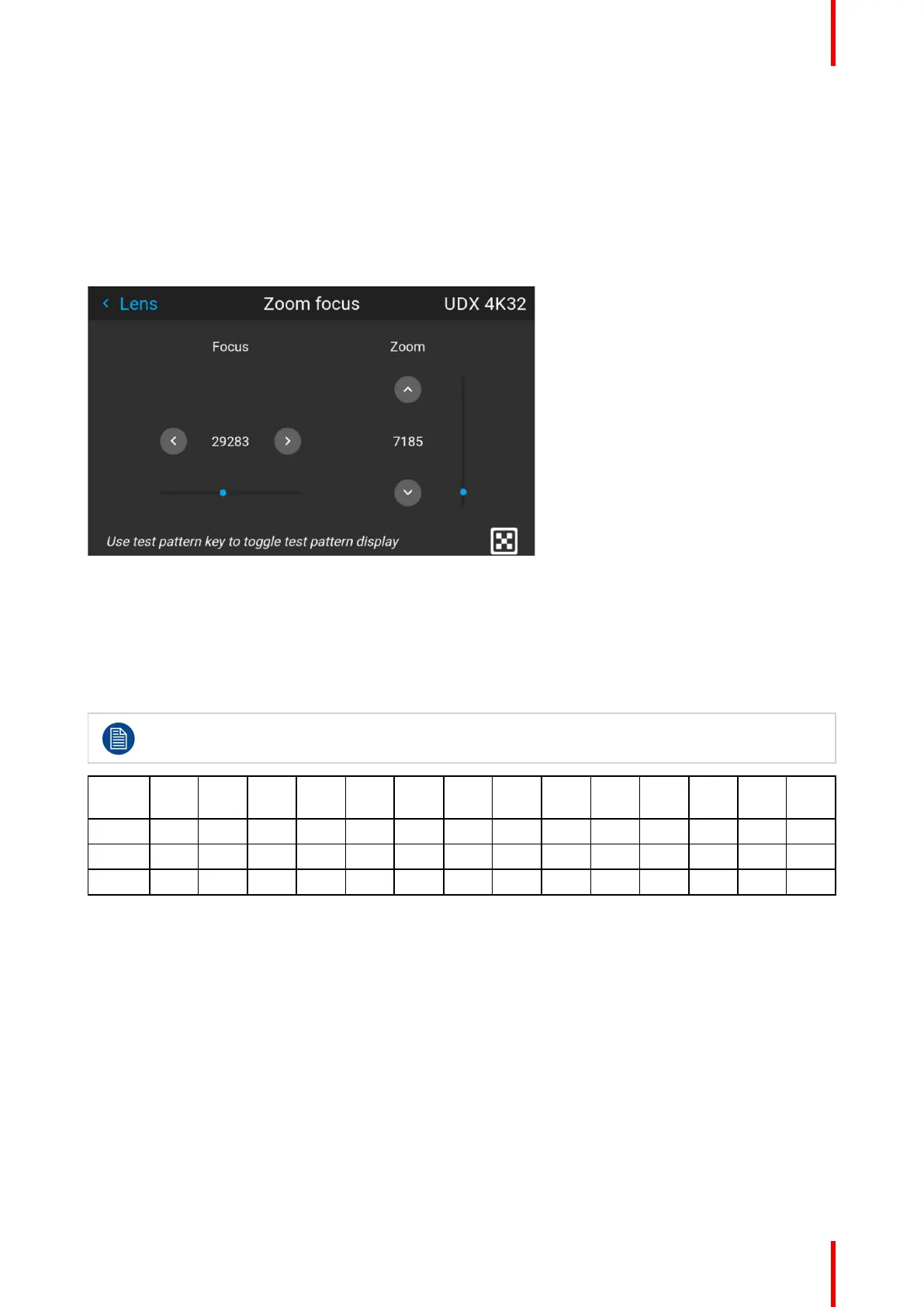

Image 8–2
General
Zoom controls the size of the projected image.
Focus controls the sharpness of the projected image.
Lens zoom and focus adjustments are motorized. You can use the remote control, local keypad, OSD and/or
RS-232 commands to adjust the lens zoom and focus positions.
Not all lenses have zoom or iris control. The matrix below shows what controls are available per
lens.
E-
N11
E-
N12
E-
N13
E-
N14
E-
N15
E-
N16
E-
N33
E-
N41
E-
N42
E-
N43
E-
N44
E-
N45
E-
N46
E-
N47
Iris ✔ ✔ ✔ ✔ ✔ ✔ ✖ ✔ ✔ ✔ ✔ ✔ ✔ ✔
Zoom ✔ ✖ ✔ ✔ ✖ ✔ ✖ ✔ ✖ ✔ ✔ ✔ ✔ ✖
Focus ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔
For best results, lens adjustments should be done in the following order: zoom, focus and then iris (where
applicable).
