8.1.3 Shift to center
From remote control
This function adjust the lens position to the mechanical mid position.
Enter the Menu/installation/Lens/Shift to center
menu.
Confirm with the ✔ button on the remote control, and the “Lens shift to center position?” pop up windows
shows up.
Move the highlighted rectangle to “OK”, and confirm with the ✔ key.
When EN68 lens is installed:
Due to restrictions in light output for the EN 68 lens, the mid position for this lens will not be the
mechanical mid position, but the mid position of the area where max light output is allowed.
Image 8–4
From the keypad

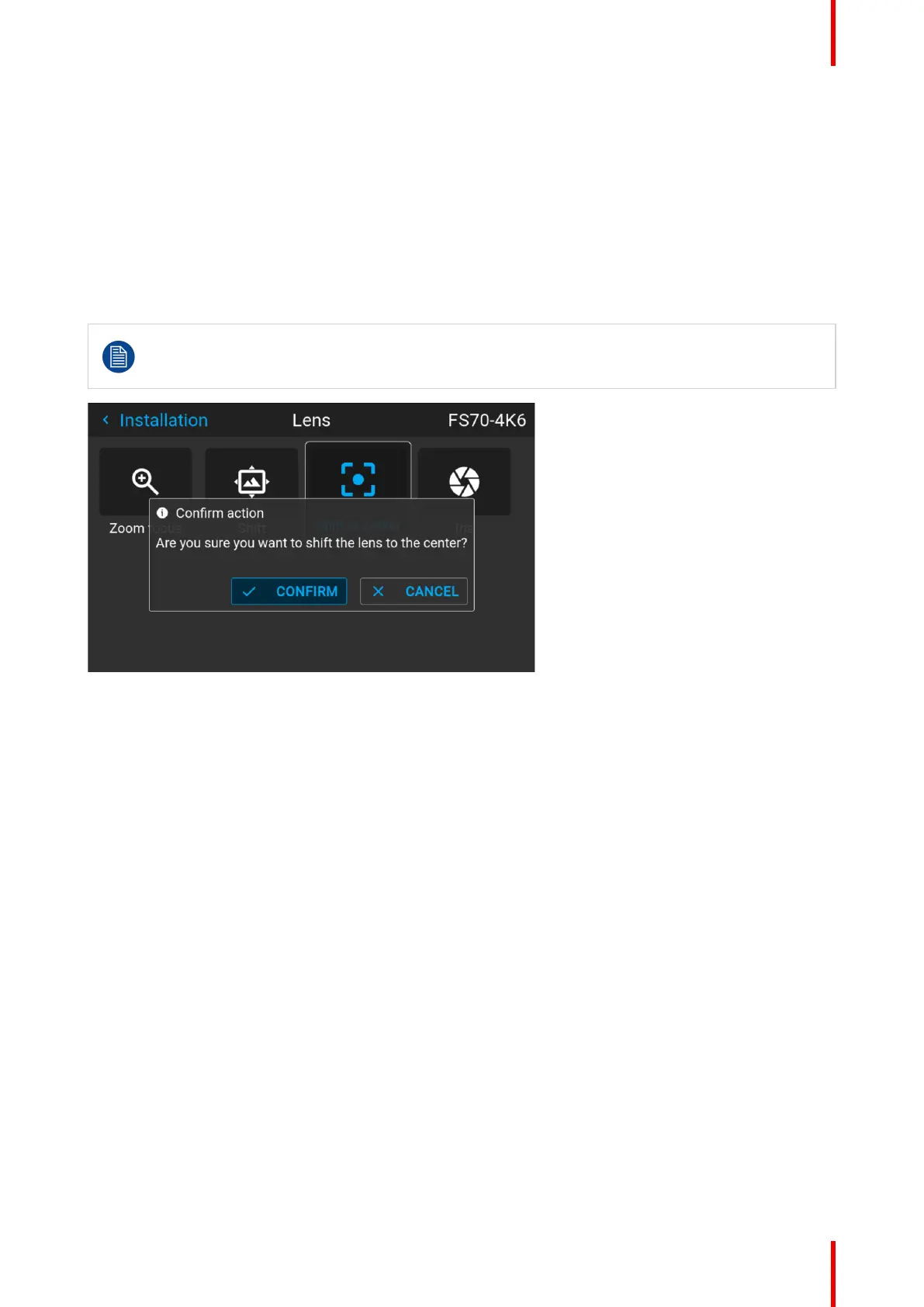

Press the Lens button on the keypad. A menu picture as shown below shows up.
Press the ✔ button for 3 seconds.
Installation menu
