3.7 Projector safe attachment points

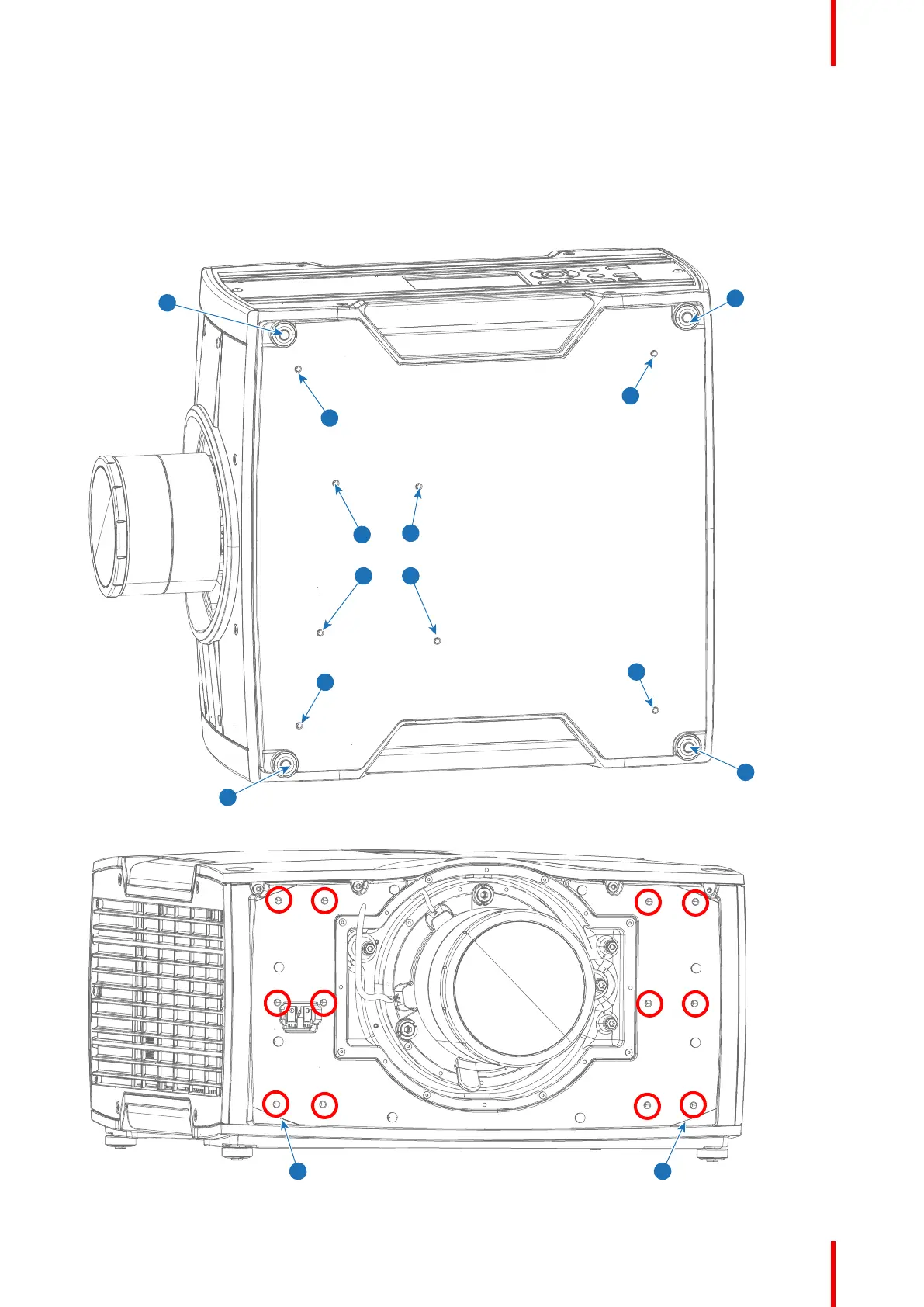

Anchor points bottom plate
Due to use of a Rigging Frame or other equipment, the projector has some defines anchor points that shall be
used. See the illustration below.
1
1
1
1
2
2
2
2
2
2
2 2
Image 3–2 Bottom anchorpoints
3 3
6 pcs
6 pcs
Image 3–3 Front anchorpoints
Physical installation
