Non symmetric bow correction
1. Enter the Bow menu, and disable the symmetric slider.
2. There are now two vectors on each side of the picture that can be adjusted individually. Select each of
them, and adjust angle and linearity (length) individually to obtain the correct correction.
The angle is adjusted by the up and down arrows on the remote control, and the linearity is adjusted by the
left and right arrows

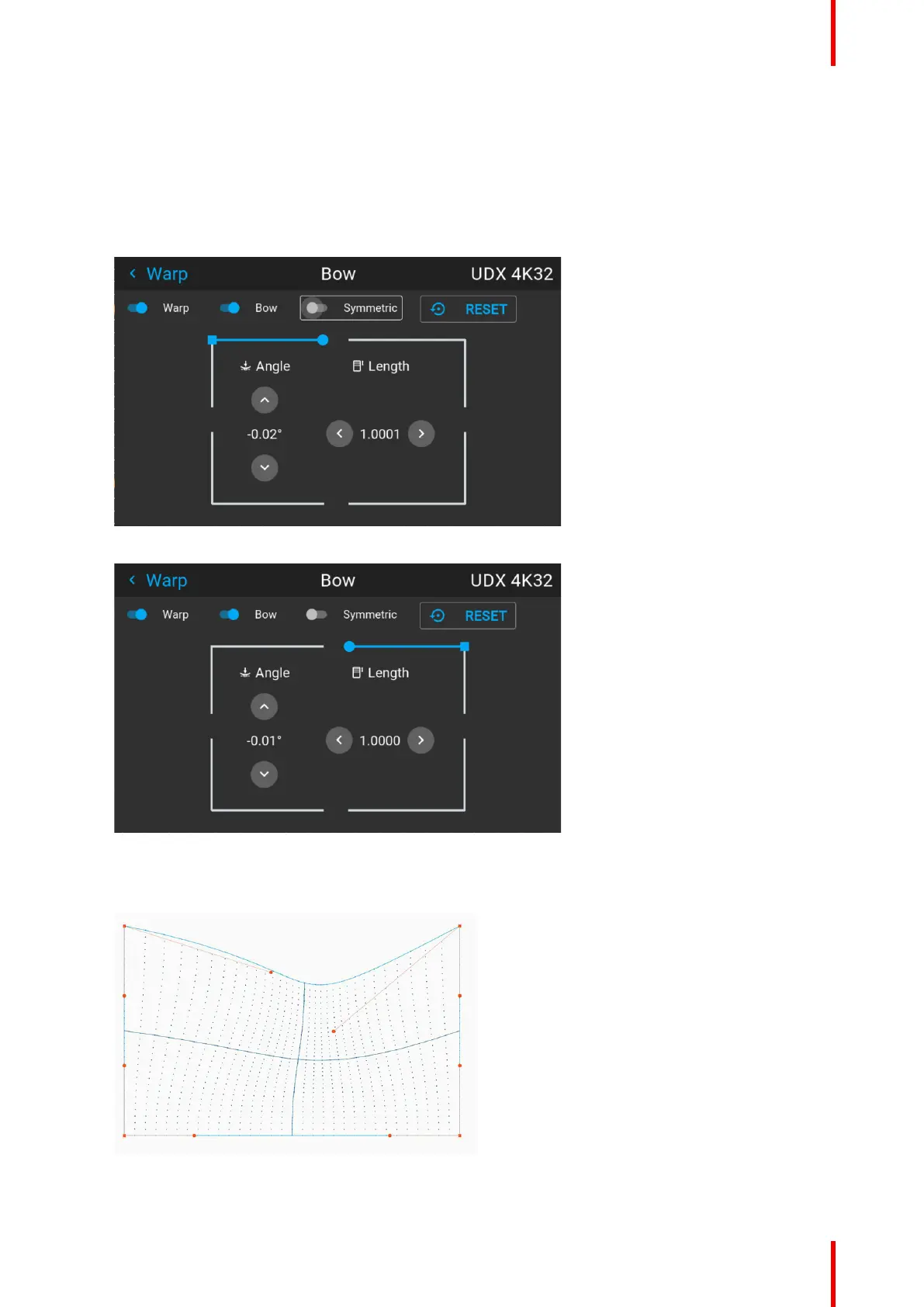

Image 8–29 Left vector of the upper side of the picture.
Image 8–30 Right vector of the upper side of the picture.
3. When corrected with values in the illustrations above, the picture will occur as shown below. Observe that
the upper side of the picture now has an asymmetric correction.
Image 8–31 Asymmetric bow correction
