R5911705 /02 Bragi28
7. Verify that the lens is firmly in place before removing your hand from the lens.

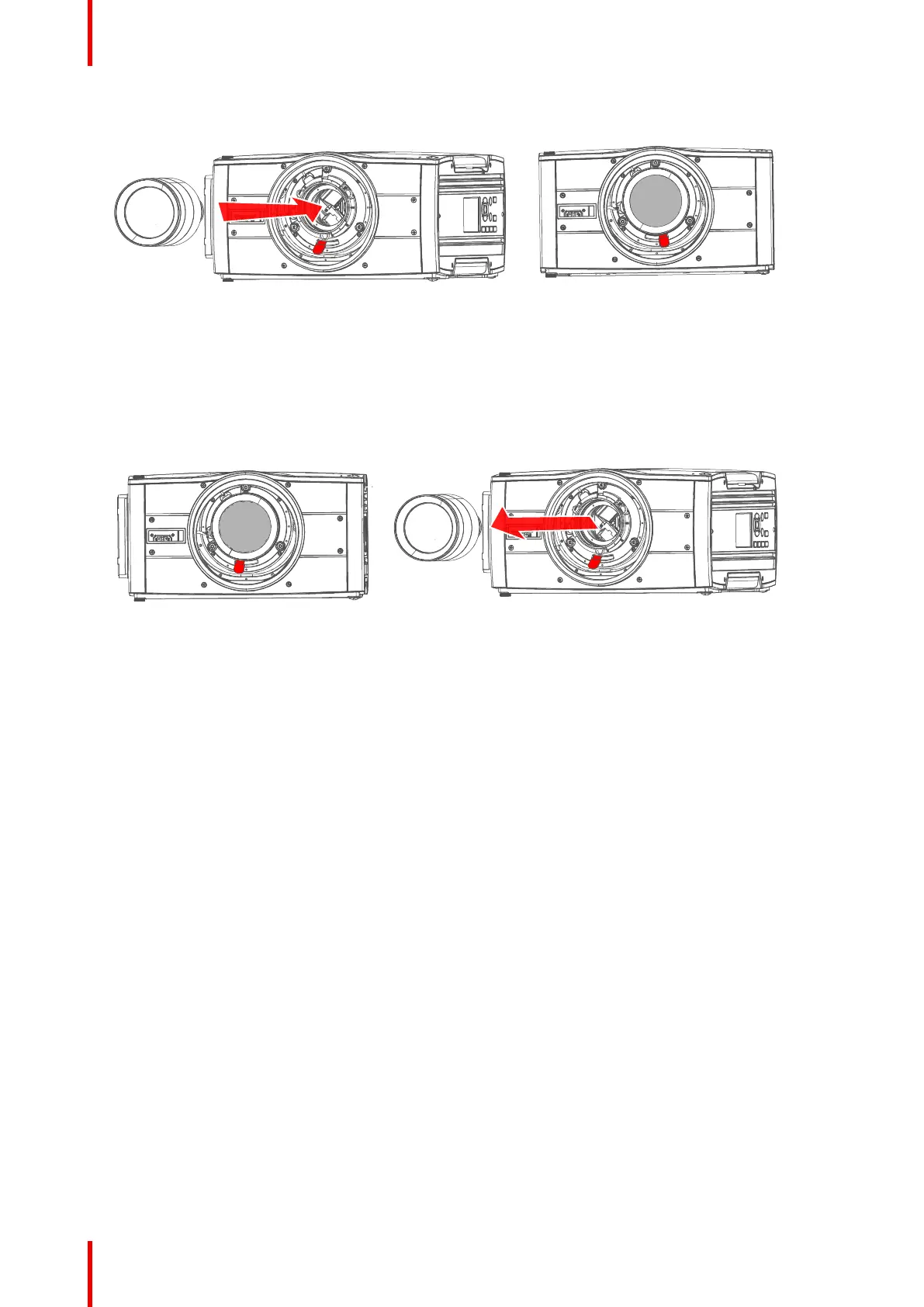

Image 2–2
Remove a lens
1. Support the lens with one hand.
2. Use the other hand to slide the lens release lever to the far left position.
3. Pull the lens straight out of the projector lens mount.
4. Replace with another lens, or install the projector lens cap.
Image 2–3
Lenses
