Barco Bragi

R5911705 /02 Bragi30
Image 2–6
Image 2–7

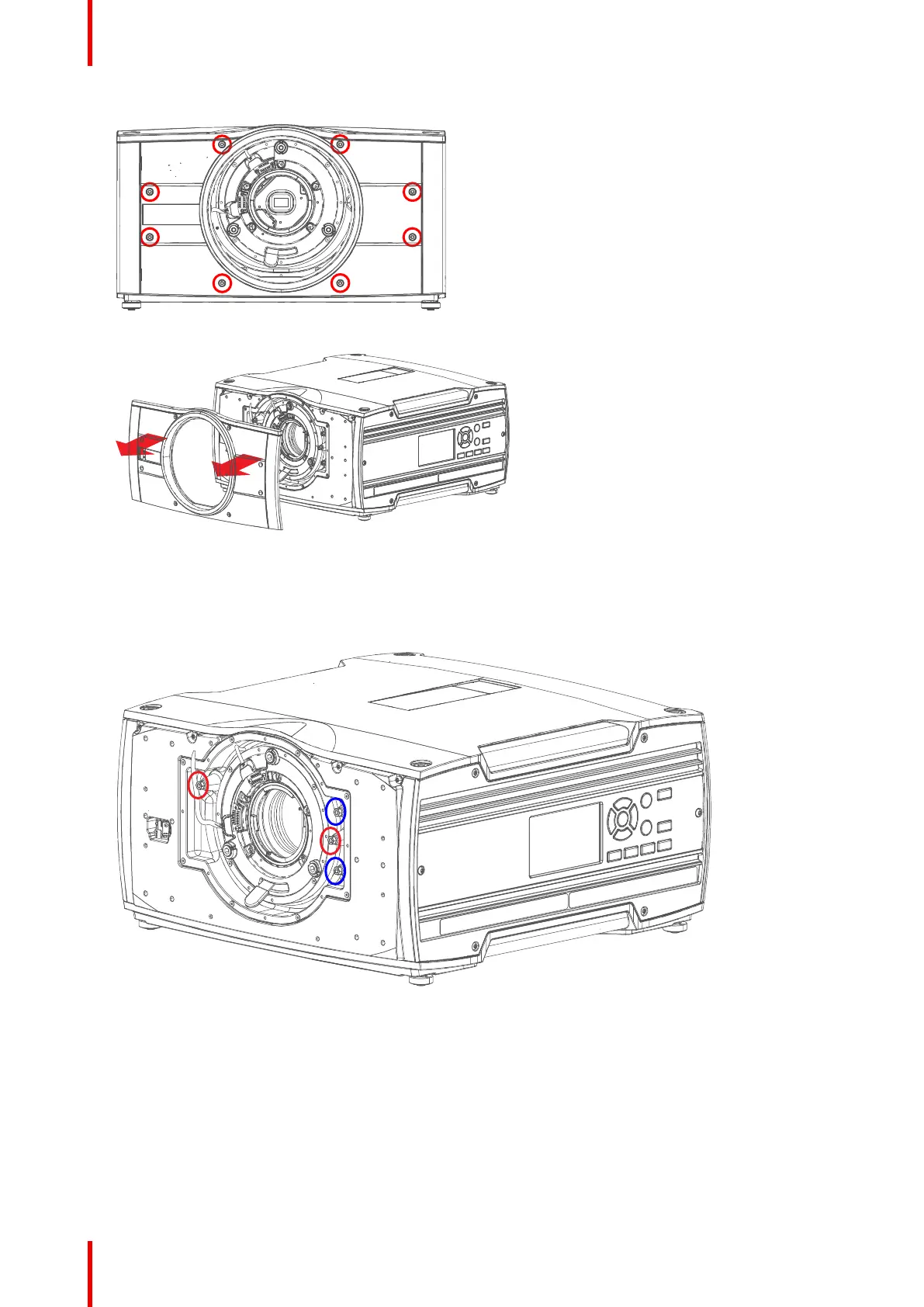

4. Tighten the screws indicated below.
Tighten the screws indicated by the red circles for locking the vertical movement
Tighten the screws indicated by the blue circles for locking the horizontal movement
Image 2–8
5. Reassemble the front cover.
Lenses
