2. ClickShare Specifications
iPad, iPhone and Android
compatibility
Available via ClickShare app for static content.
Audio
Radio quality 16bits 22KHz (no synchronization) via a udio jack or HD MI
Number of simultaneous
connections
8
Number o f sources simultaneous
on screen
1
Input Resolutions Up to 2048x1536 (QXG A )
Output resolution HDMI: 1280x720 (720P ), 1920x1080 (1080i/1080p)
VGA: (SVGA (800x600) / XGA ( 1024x768) / W X G A(128 0x768) / W XG A +(1280x 800)
/ 1360 * 768 / 1440 * 900 / 1600 * 1200
Frame rate
Up to 30 fps depending on environment
Video outputs
HDMI (video and audio) 15-pin VGA
Operating system Wind ows XP/Vista/7/8 32 & 64 bit
Mac OSX 10 .6/10.7/10.8
Android 2.2 and later (ClickShare mobile app)
iOS 5.0 and later (ClickShare mobile app)
Certifications FCC/CE
Warranty 1 year standard
2.3 About the Base Unit
Base Un it
The Bas e Unit receives the wireless input from the Buttons and c ontrols the content of the meeting room display and
the sound of the meeting room’s audio system.
The Base Unit can be installed in two different way s.

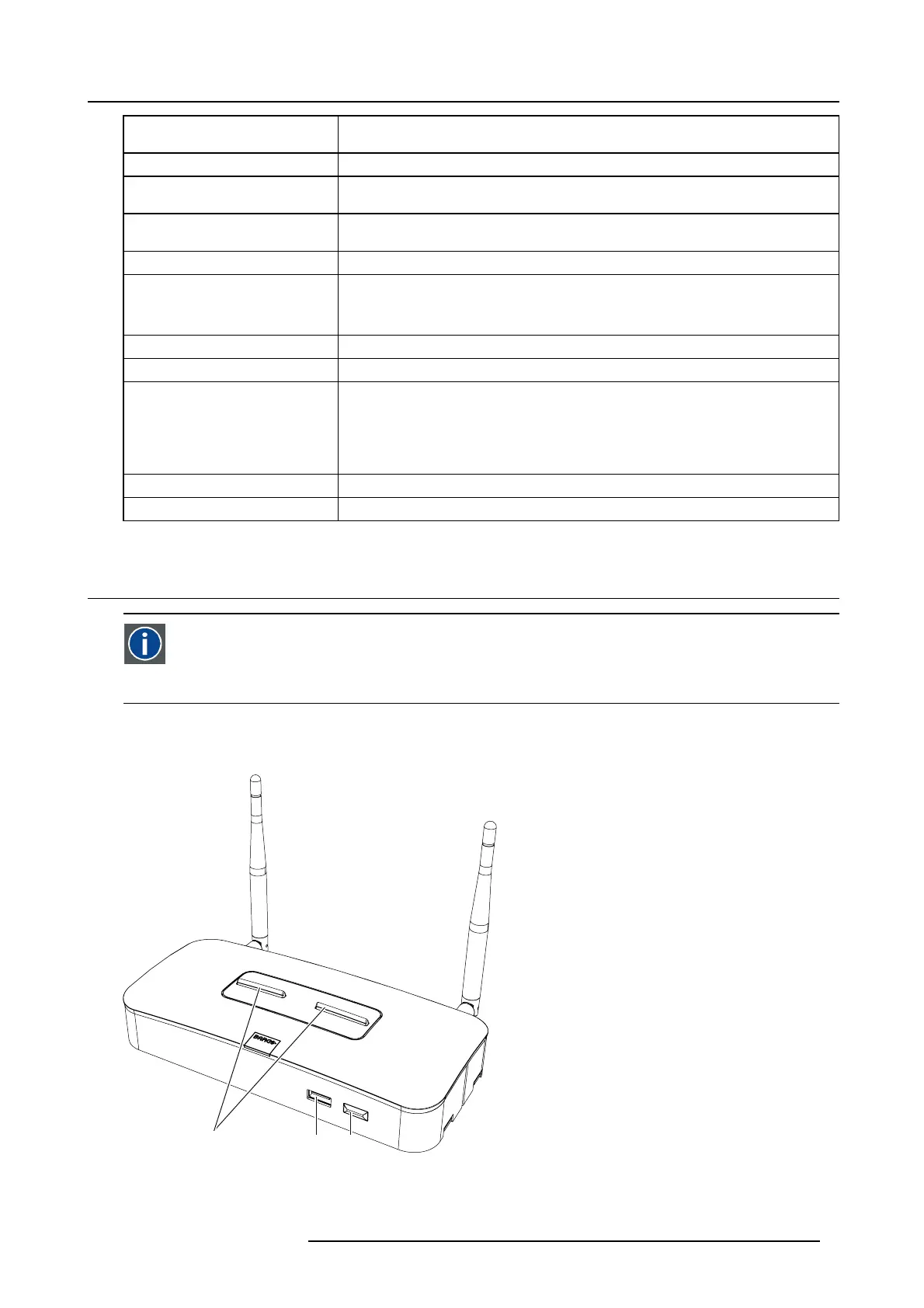

Front and Top layout of the Base U nit
At the front of the B ase Unit you can find a powe r button and a USB port. S tatus LED strips are mounted on the top of the Base unit.
2 3
1
Image 2-2
