6. ClickShare Web Interface

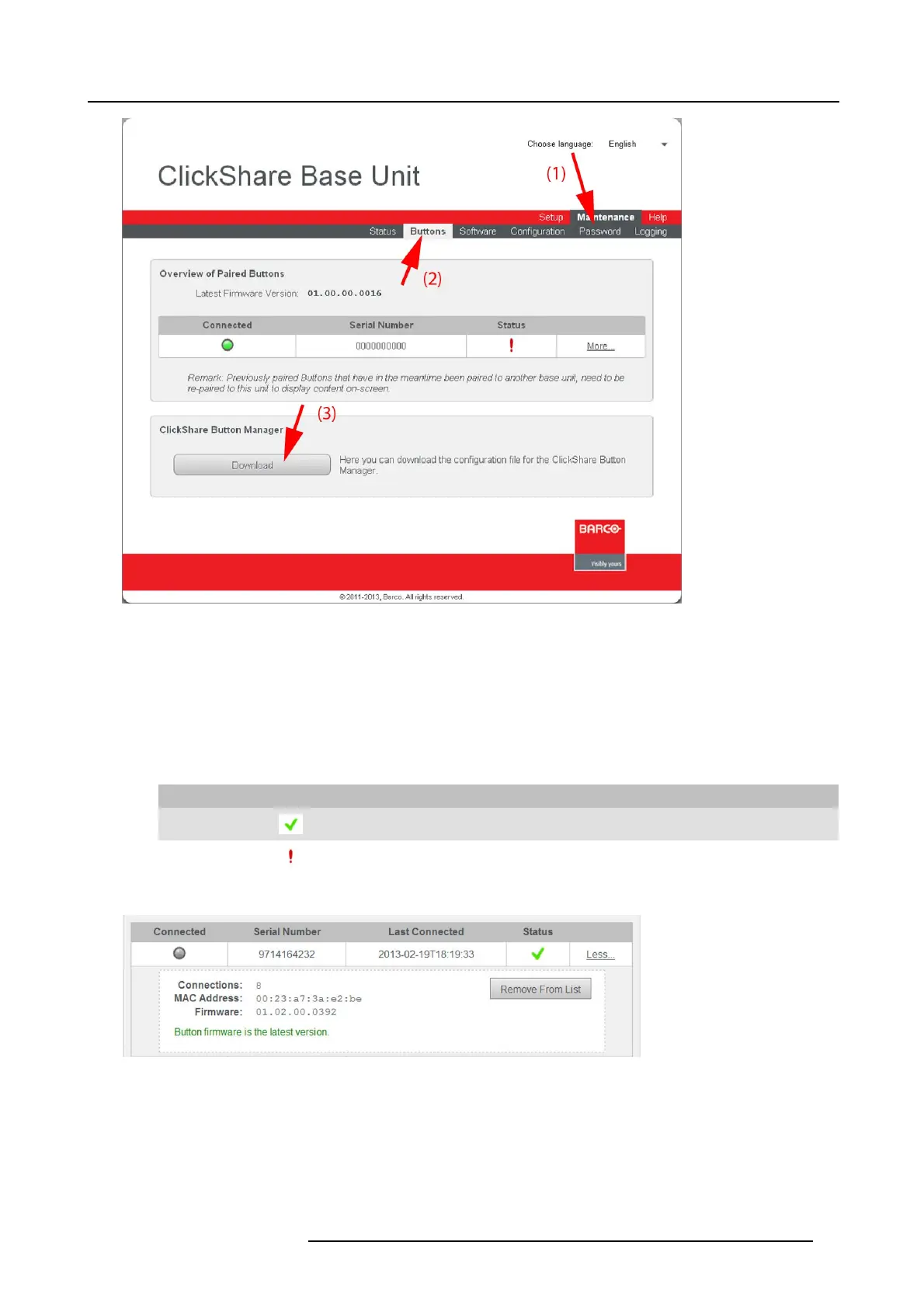

Image 6-23
Paired butons, overview
The list gives an overview of the Buttons that hav e in the past been paired to this Base Unit. If a Button has in the meantime
been paired to another Base Unit, it will s till appear in this list. To remove it from the list, at the right of the tab page , click More
and select Remove from list.
In the overview of paired Buttons, for each Button that has been paired to this Base Unit, you will find:
The fo llowing items can be s een in the list:
- Connected: indicates whether the button is connected or not at the moment.
- Serial number: the unique serial number of the button.
-Statusthefirm- and software status of the button.
Status indication
Icon Explanation
OK Button firmware and software are up to date. The Button has been paired to the B ase Unit.
ERROR The Button ne eds to be paired to the B ase Unit again before u sing it. The Button firmwar e
version is incompatible with the Base Unit firmware version .
3. To get more information on the Button firmware, the num ber of connections and the MAC address, click More....
Image 6-24
The Button can be re move d from the list by clicking on Rem ove Fro m List.
4. To download the configuration file for the Button manager to pair buttons, click on Download (3)
R5900014 CLICKSHARE 16/09/2013
39
