R5906848 /04 DP2K SLP Series182
5
6
7
8
9

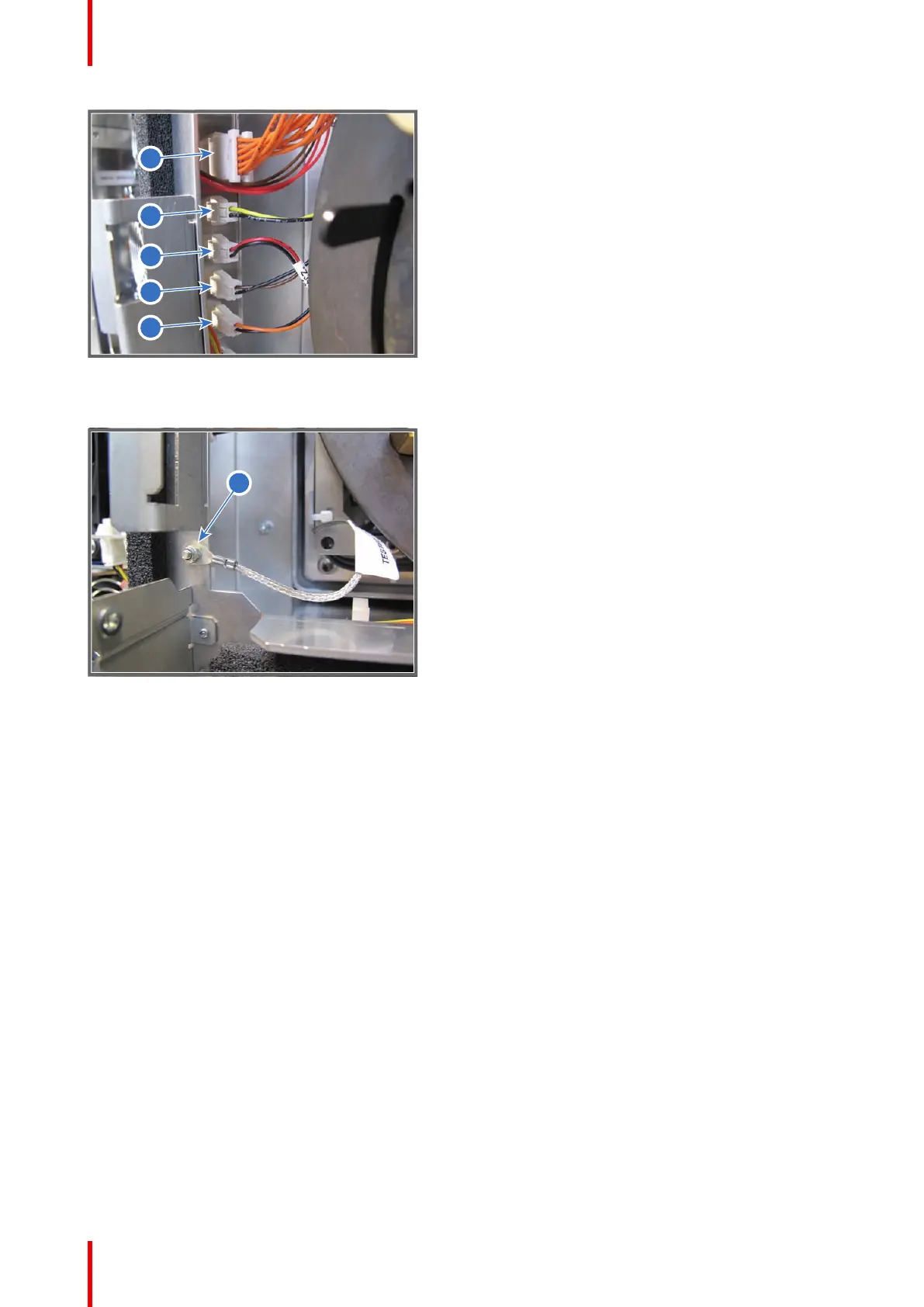

Image 16-18
3. Disconnect the EMC wire (reference 10 Image 16-19) from the projector chassis. Use a 5.5mm nut driver.
10
Image 16-19
4. Remove the Lens Holder from the projector chassis by loosening the 4 screws (reference 1 Image 16-20) as
illustrated. Use a 5mm Allen wrench. Note that each screws contains a plain washer (reference 2 Image 16-
20).
Lens Holder
