Barco DP2K-10SLP User Manual

R5906848 /04 DP2K SLP Series184
1
2 1

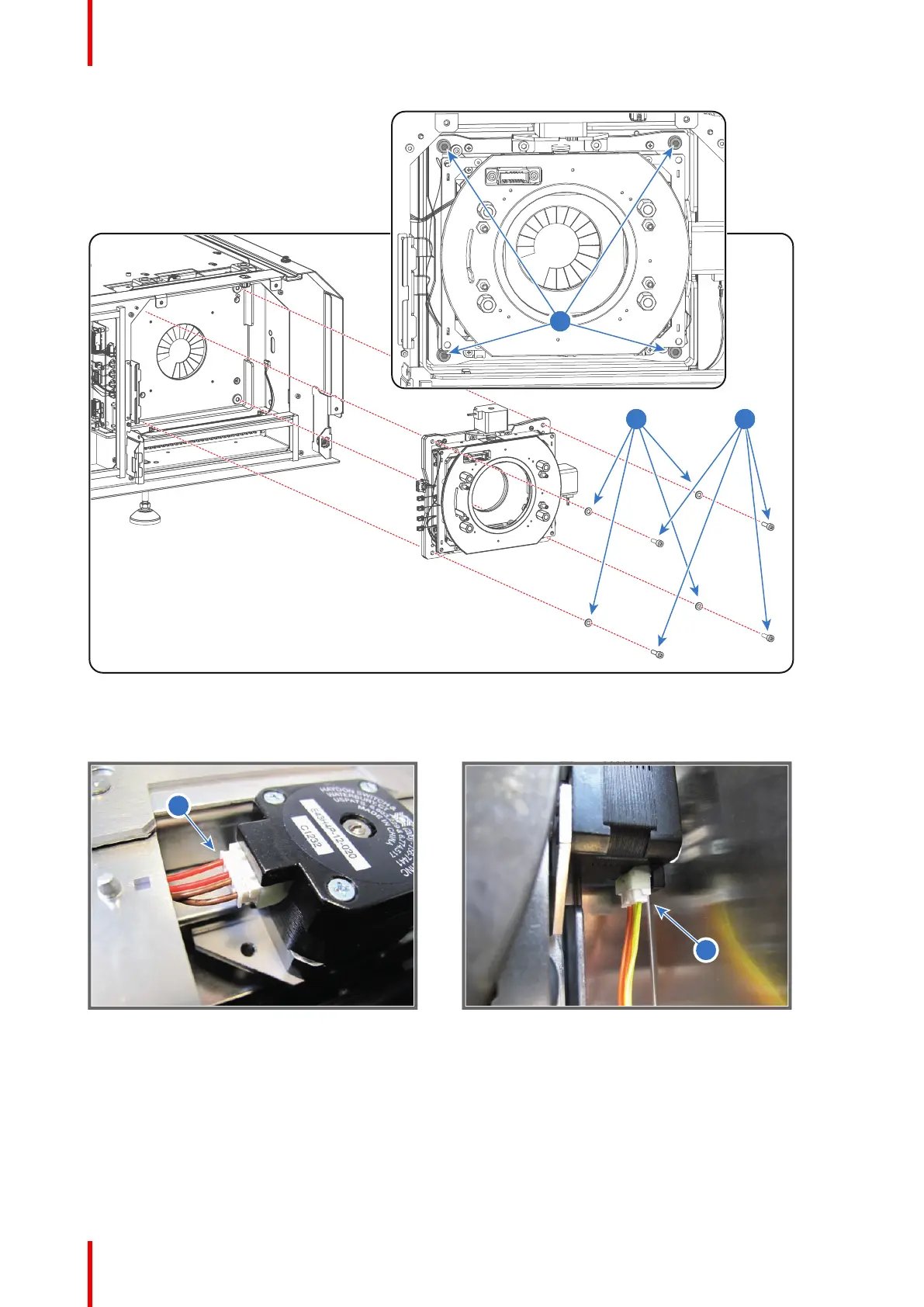

Image 16-21
2. Connect the wire unit of the vertical shift motor (reference 3 Image 16-22) and the wire unit of the horizontal
shift motor (reference 4 Image 16-22).
3
4
Image 16-22
3. Connect the 5 wires at the left side from the Lens Holder as illustrated:
• reference 5 in Image 16-23: Lens wires (zoom & focus) (orange wires).
• reference 6 in Image 16-23: Horizontal-Left end loop wires (yellow/black).
• reference 7 in Image 16-23: Vertical-Top end loop wires (red/black).
• reference 8 in Image 16-23: Vertical-Bottom end loop wires (brown/black).
• reference 9 in Image 16-23: Horizontal-Right end loop wires (orange/black).
Lens Holder
