Barco DP2K-10SLP User Manual

R5906848 /04 DP2K SLP Series 187
3
3
4

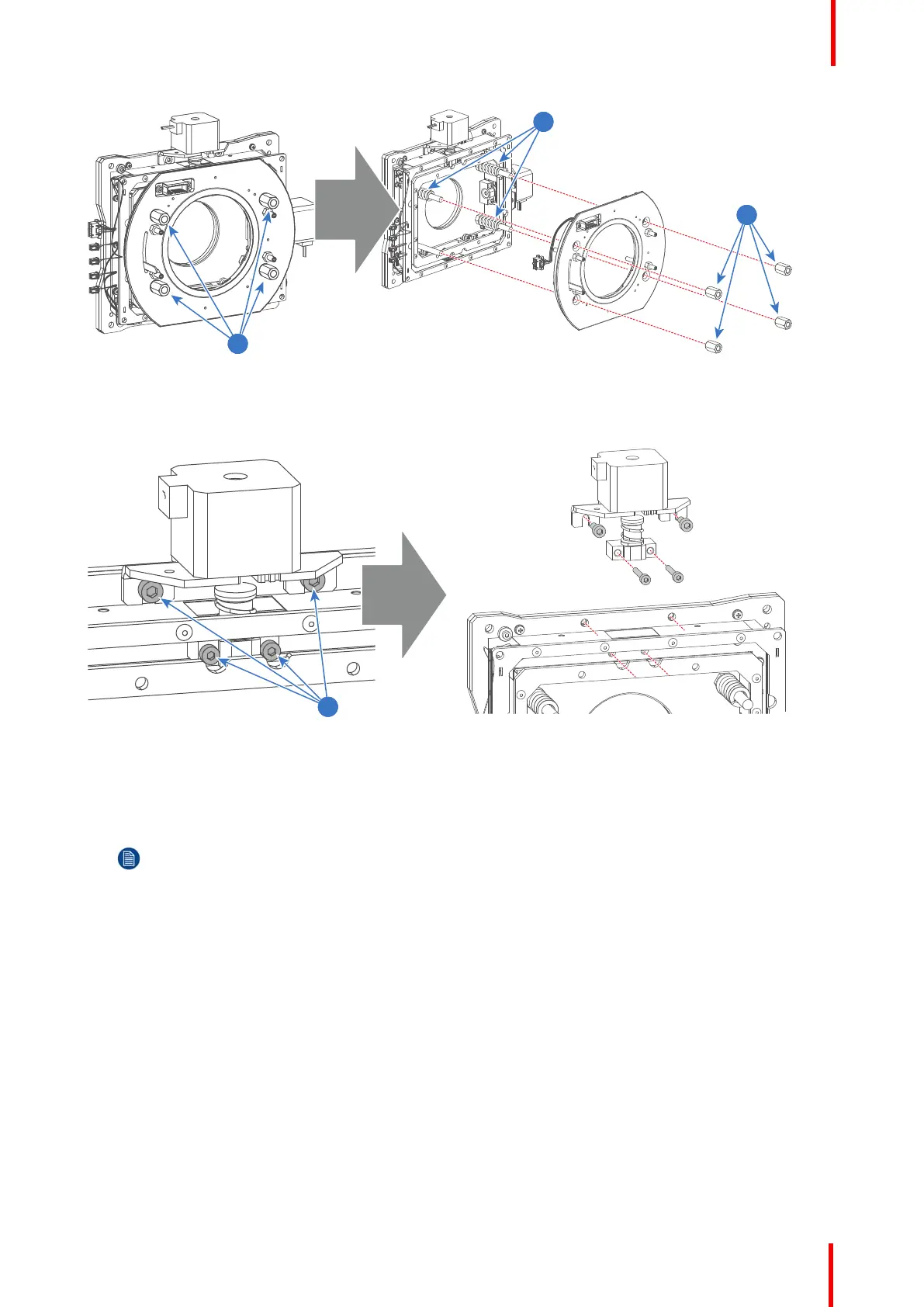

Image 16-27
2. Remove the Vertical Shift stepper motor from the assembly by loosing the four screws (reference 5 Image 16-
28) as indicated. Use a 3mm and 4mm Allen wrench.
5
Image 16-28
3. Remove the big bracket (reference 6 Image 16-29) and the small bracket (reference 8 Image 16-29) from the
old stepper motor and install these parts on the new stepper motor as illustrated. Use a T10 Torx driver for the
four screws (reference 7 Image 16-29) and a 10mm open end wrench for the small bracket (reference 9
Image 16-29).
Note: The big bracket (reference 6 Image 16-29) used with the Vertical Shift stepper motor has two
cuts (reference 10 Image 16-29).
Lens Holder
