Barco DP2K-10SLP User Manual

R5906848 /04 DP2K SLP Series 189
3
3
4

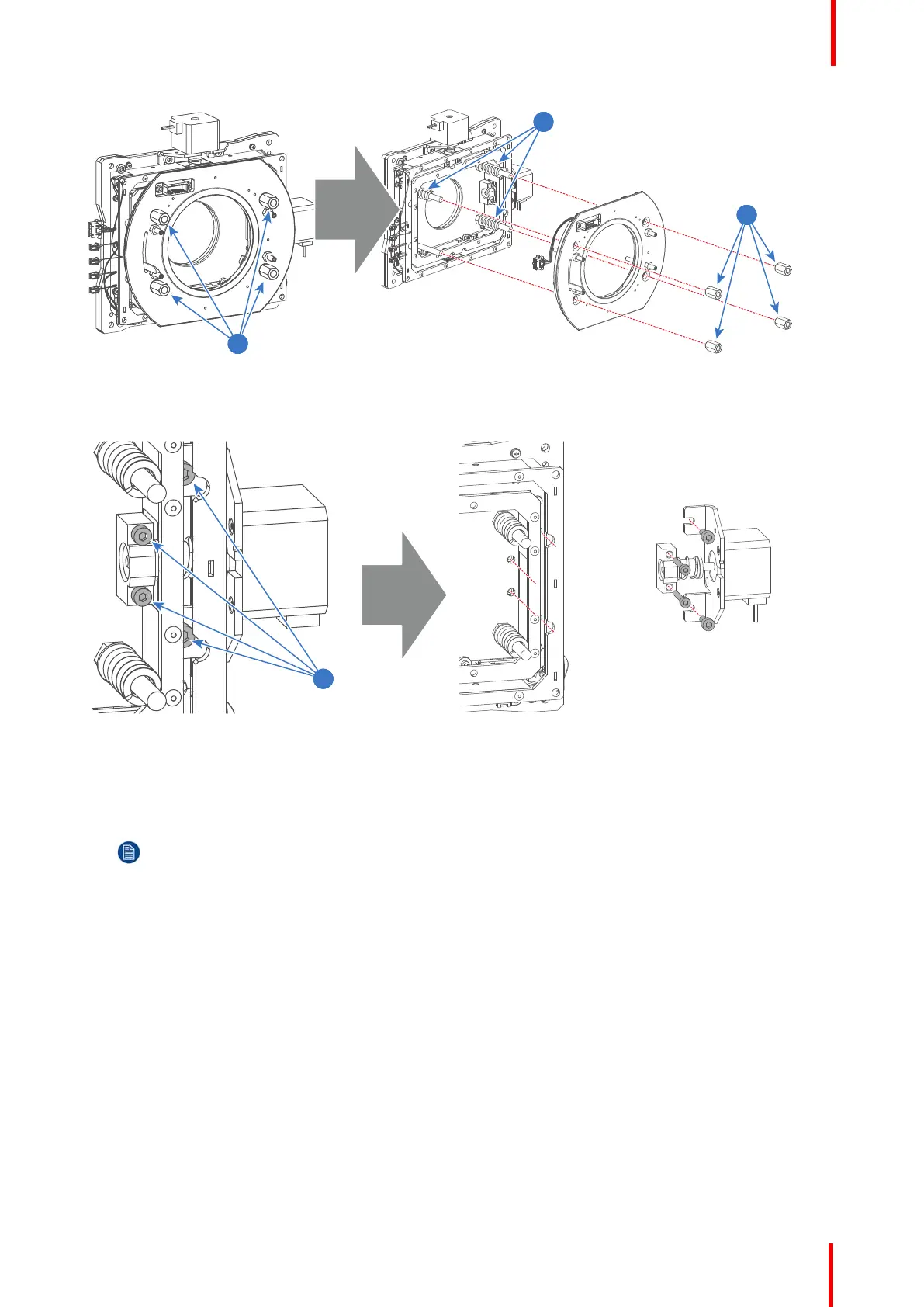

Image 16-30
2. Remove the Horizontal Shift stepper motor from the assembly by loosing the four screws (reference 5
Image 16-31) as indicated. Use a 3mm and 4mm Allen wrench.
5
Image 16-31
3. Remove the big bracket (reference 6 Image 16-32) and the small bracket (reference 8 Image 16-32) from the
old stepper motor and install these parts on the new stepper motor as illustrated. Use a T10 Torx driver for the
four screws (reference 7 Image 16-32) and a 10mm open end wrench for the small bracket (reference 9
Image 16-32).
Note: The big bracket (reference 6 Image 16-32) used with the Horizontal Shift stepper motor has one
cut (reference 11 Image 16-32).
Lens Holder
