R5906848 /04 DP2K SLP Series 225
Image 18-18

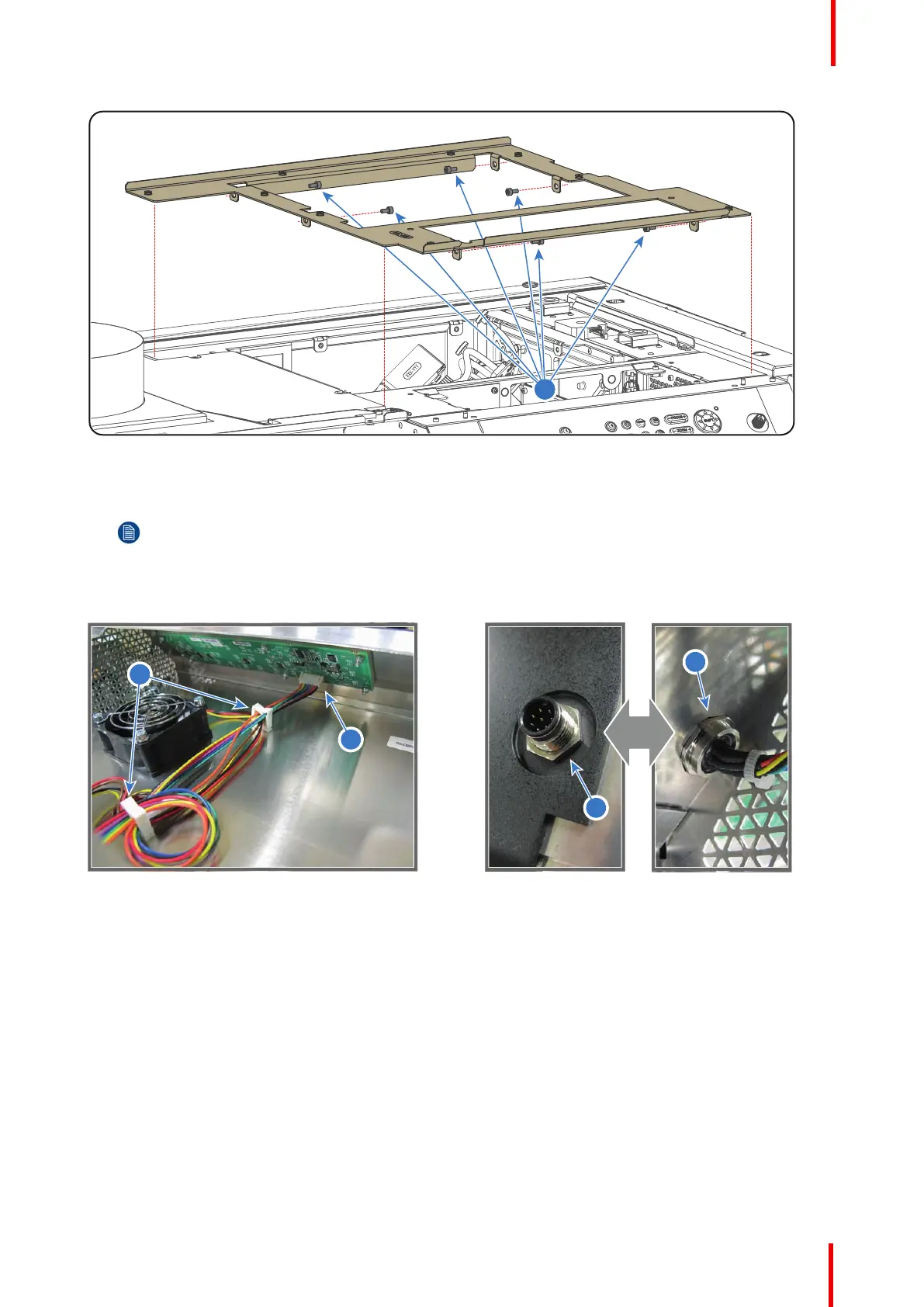

4. Disconnect the wire of the Button Module (reference 2 Image 18-19).
Note: If it is too difficult to disconnect the wire then release the wire from the two cable clamps
(reference 1 Image 18-19) and disconnect the wire unit in a later phase (step 6) when the Button
Module is detached from the projector chassis.
5. Remove the nut (reference 3 Image 18-19) from the circular connector (reference 4 Image 18-19) . Use a
15mm nut driver.
Image 18-19
6. Replace the Button Module. Use a 2.5mm Allen wrench to loosen/fasten the four screws (reference 5
Image 18-20).
