Barco DP2K-10SLP User Manual

R5906848 /04 DP2K SLP Series230
5
6
7
8
9
Image 18-26

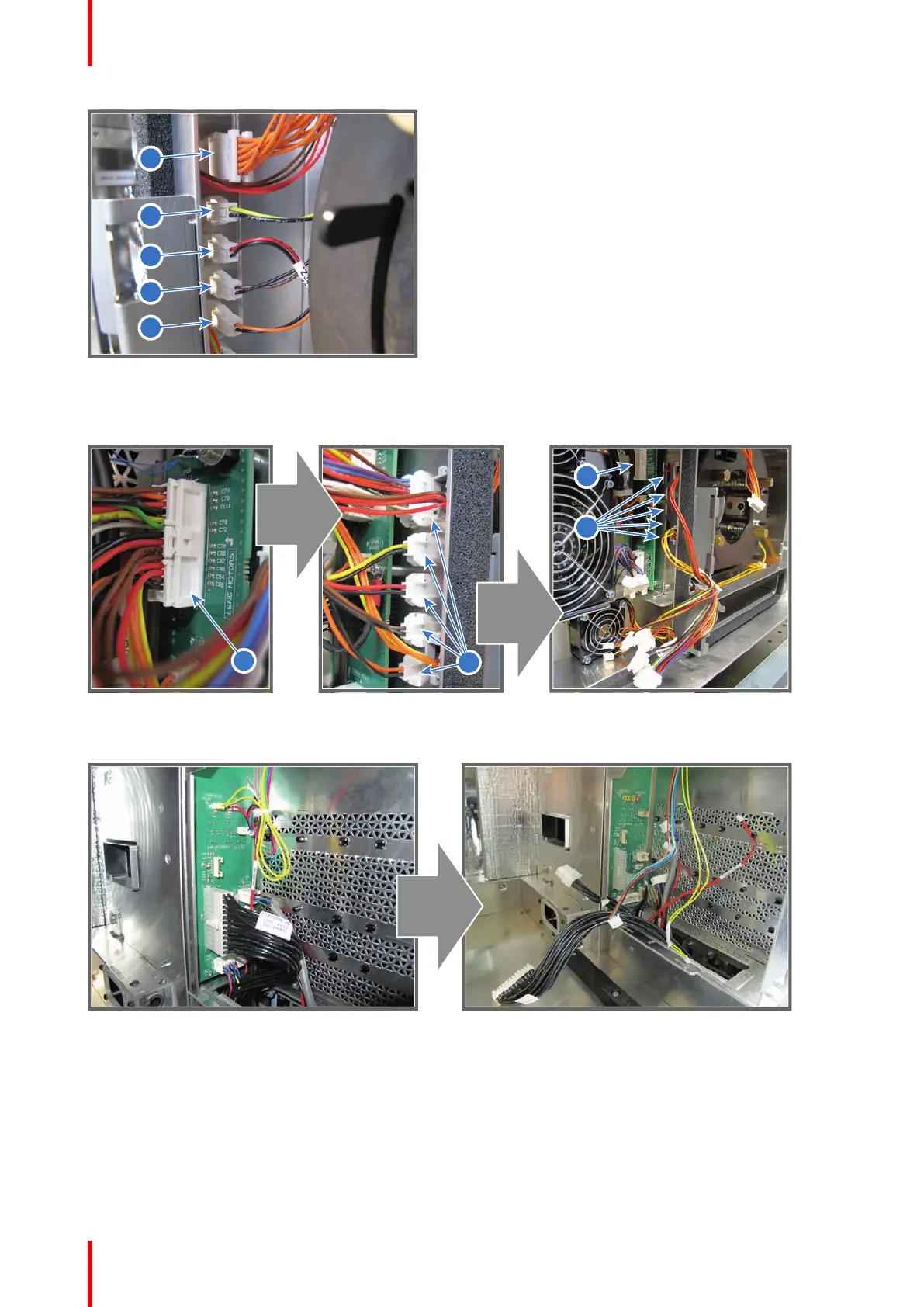

3. Disconnect the big wire plug (reference 3 Image 18-27) of the lens motors from the Signal Backplane and
disengage the five wire sockets (reference 4 Image 18-27) from the projector chassis as illustrated.
4
4
3
3
Image 18-27
4. Disconnect all seven wires from the left side of the Signal Backplane.
Image 18-28
5. Disconnect the CLO wire (reference 10 Image 18-29) from the Signal Backplane.
Card Cage
