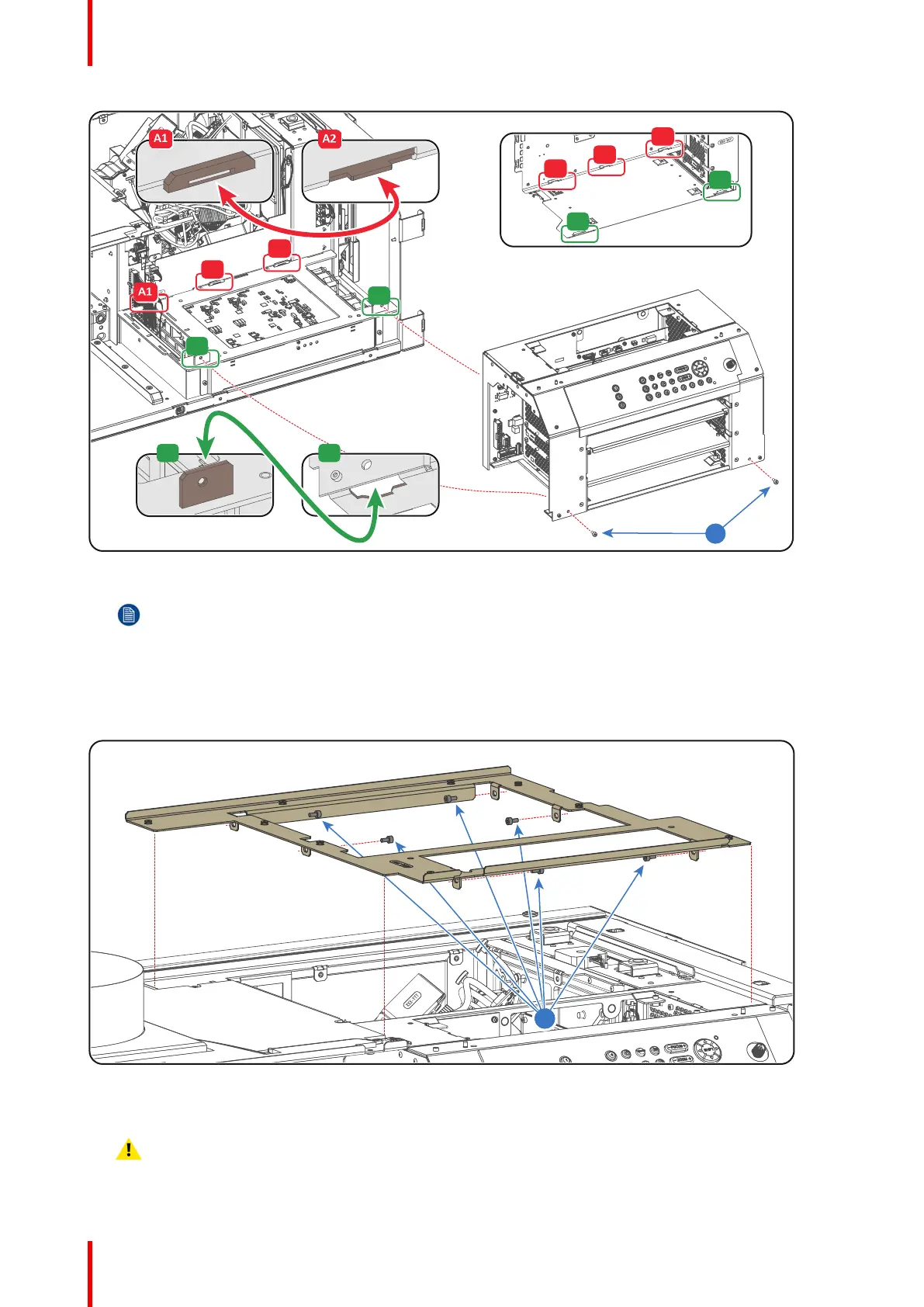

R5906848 /04 DP2K SLP Series240
2
A1 A2
A1
A1
A1
A1
A1
B1
B1
B1 B2
A1
A1
A2
A2
A2
A2
A2
A2
A2
A2
A2
A2
A2
A2
A2
A2
B2
B2
Image 18-48
Note: The rear bottom of the Card Cage is engaged into the projector chassis with three horizontal
slots (reference A1 and A2 Image 18-48). The front bottom of the Card Cage is engaged into the
projector chassis with two vertical slots (reference B1 and B2 Image 18-48).
3. Secure the Card Cage with two screws at the base of the Card Cage (reference 2 Image 18-48). Use 3mm
Allen wrench.
4. Place the top frame in its position on top of the projector.
3
Image 18-49
5. Secure the top frame with 6 fixation screws (reference 3 Image 18-50) as illustrated. Use a 3mm Allen wrench.
Caution: Take care not to drop the screws inside the projector.
Card Cage
