R5906848 /04 DP2K SLP Series282

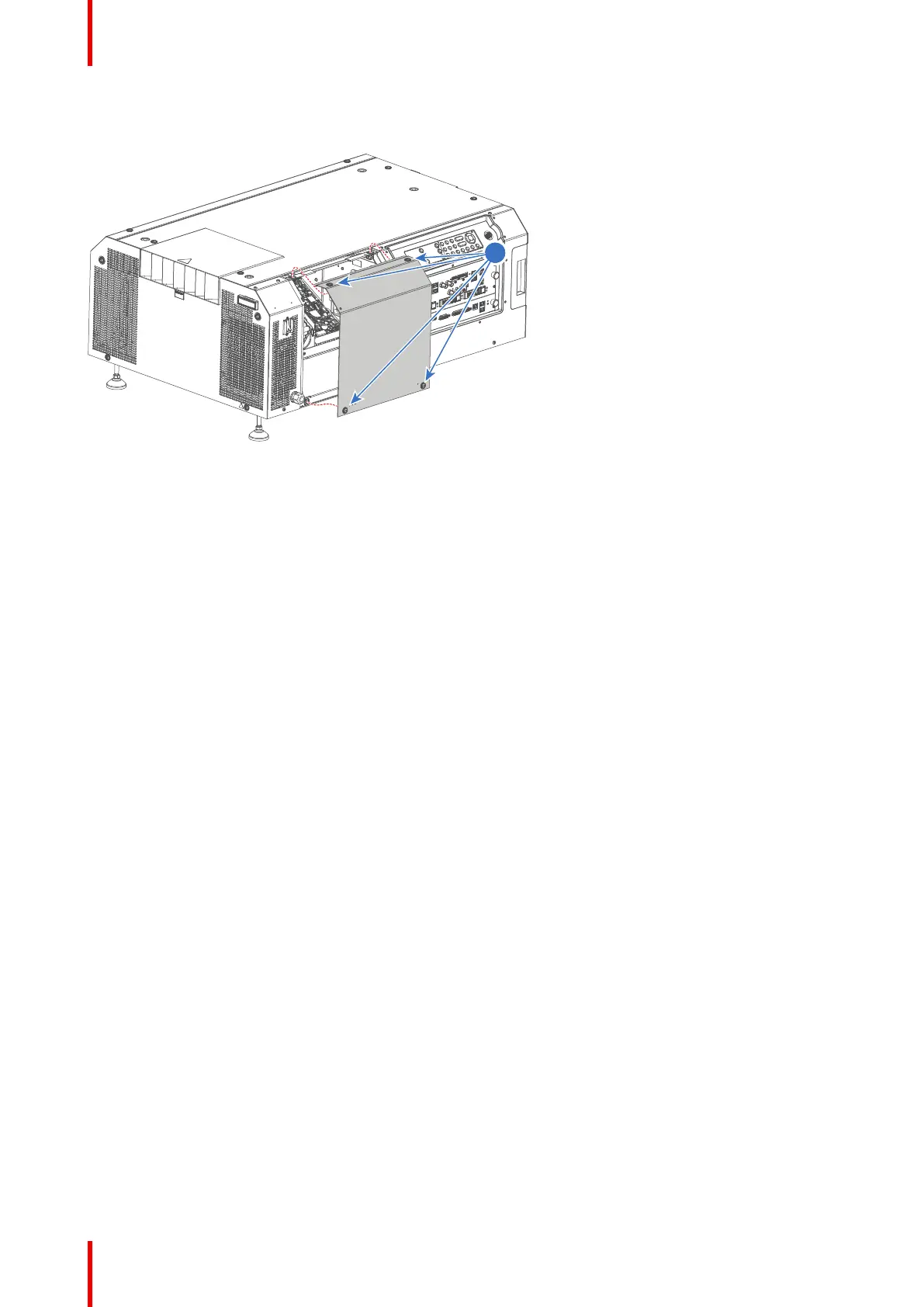

2. Fasten the four captive screws (reference 1 Image 22-16) of the Light Source cover using a 7 mm flat

screwdriver.

1

Image 22-16

Removal and installation of the projector covers
