12. Alignment menu

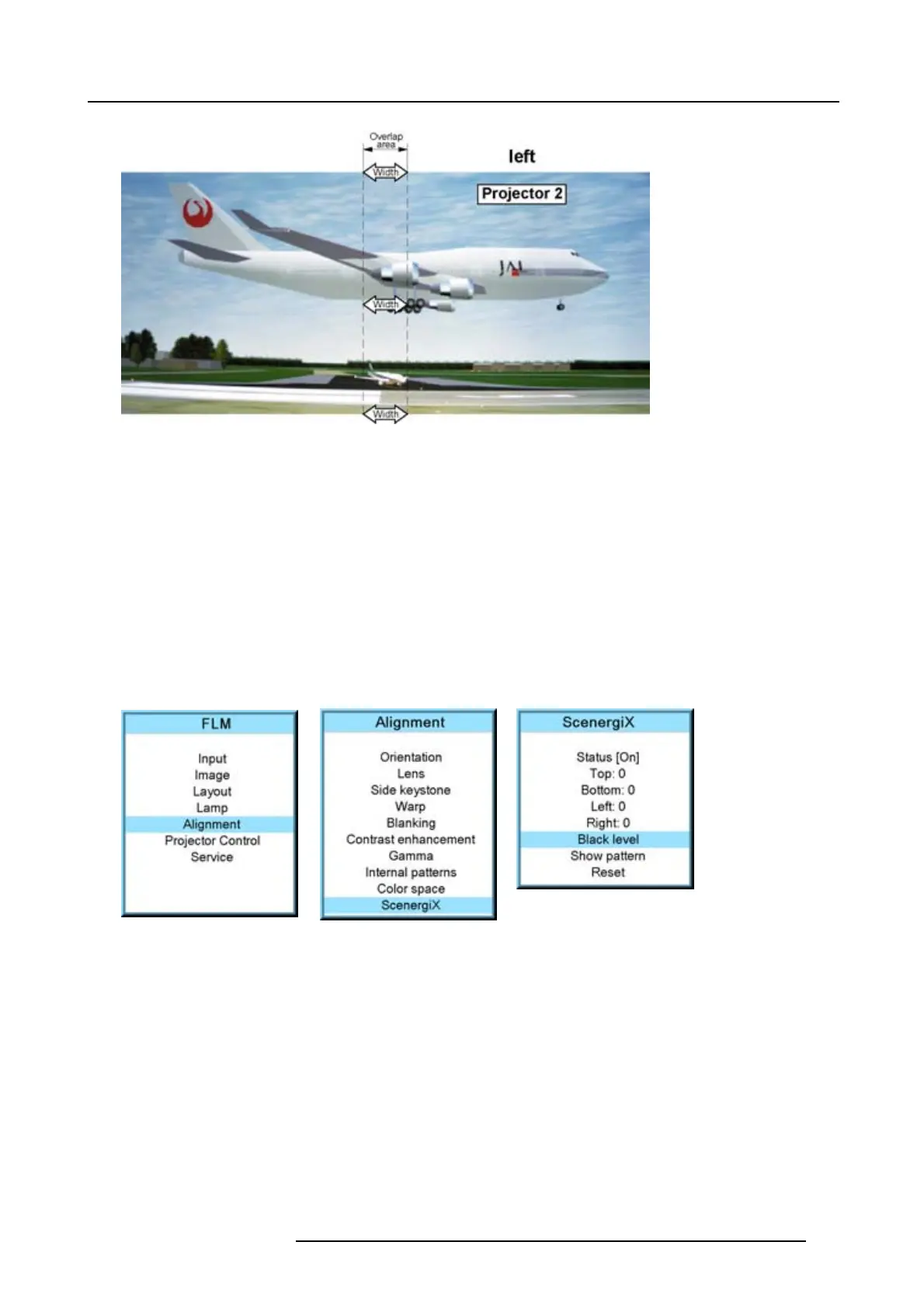

Image 12-103
Width set up for projector 2
12.11.7 Adjusting the black level of the images
Why black level adjustment
For dark images, the overlap zone will be brighter then the rest of the images. Therefore we can rise the black level of the remaining
image (excluding the overlap zone).
How to adjust
1. Press MENU to activate the menus.
2. Use the ▲ or ▼ key to select Alignment and press ENTER.
3. Use the ▲ or ▼ key to select ScenergiX and press ENTER.
4. Use the ▲ or ▼ key to select Black level and press ENTER.
Image 12-104
Image 12-105
Image 12-106
5. Adjust the black level of area A until the black level of area A, B and C are equal.
R59770180 FLM HD20 11/07/2008
137
