10-53

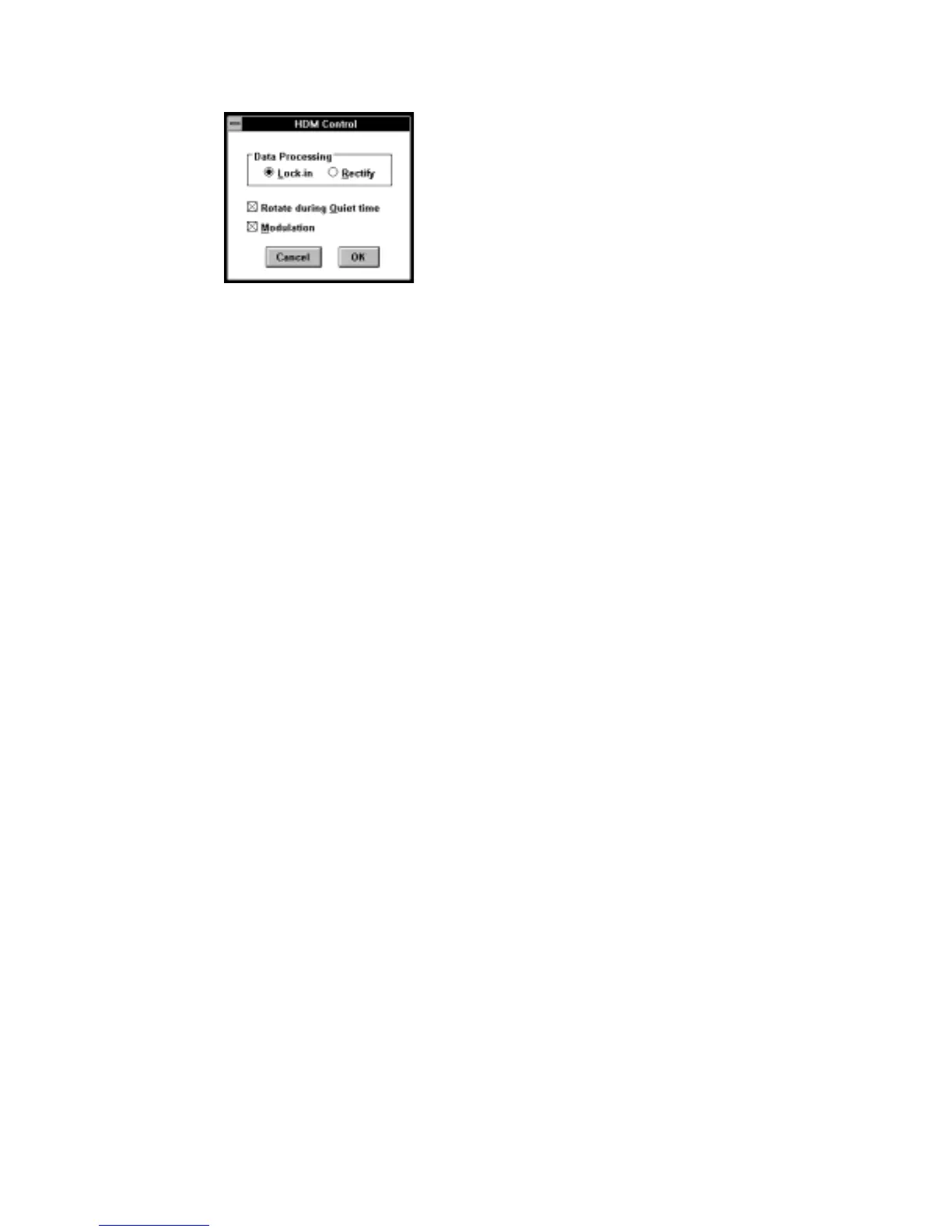

Figure 10-33. Hydrodynamic Modulation
dialog box.
Data Processing
This specifies the method for handling the
A.C. current output -
Lock-in
or
Rectify
.
Rotate during Quiet Time
A finite length of time is required for the
Rotating Disk Electrode to reach the
selected rotation rate. Therefore, rotation is
started during the
Quiet Time
to ensure that
the desired rotation rate has been attained
when the potentialscan is started.
Modulation
This option switches on/off the modulation
of the rotation rate.
Graphics Menu
Single Graph
displays the current vs. potential plot.
Analysis Menu
The
Auto
option for
Results Graph
displays the current vs. potential plot,
and the half-wave potential and limiting current are listed in the
Main
window. Alternative baselines can be set by the user through the
Manual
option.
