4.2 BM-F-AIO-XX for standard controller
The BM4-F-AIO-XX is a plug-in module for the controller of b maXX 4000-series.
The BM4-F-AIO-XX plug-in module is connected to the controller with a plug on its back.
On the front is a 9-pin Sub-D connector (male).

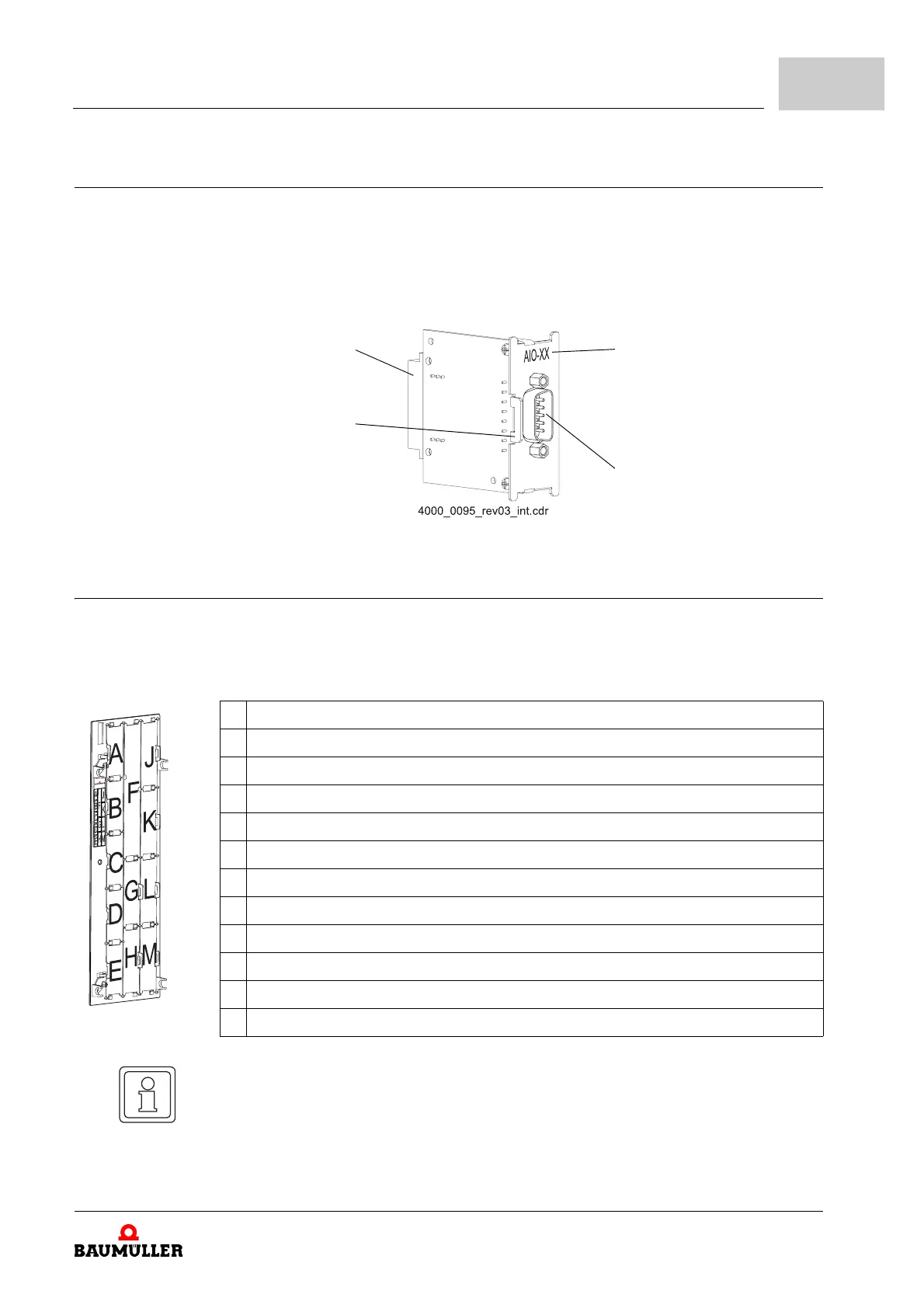

Figure 2: Analog IO module for standard controller
4.2.1 Slots BM4-F-AIO-XX for standard controller
Function and option modules can be plugged in the slots of the controller part. Each po-
sition is clearly identified by a character.
The Analog IO module can be plugged in following slots:
NOTE!
At the most 2 Analog IO modules can be used.
Plug (back side)
Handle
Module identification
AIO-01
AIO-02
AIO-03
AIO-04
Sub-D connector
(front)
A BM4-F-AIO-02 BM4-F-AIO-03 BM4-F-AIO-04
B BM4-F-AIO-02 BM4-F-AIO-03 BM4-F-AIO-04
C BM4-F-AIO-02 BM4-F-AIO-03 BM4-F-AIO-04
D BM4-F-AIO-02 BM4-F-AIO-03 BM4-F-AIO-04
E BM4-F-AIO-01 BM4-F-AIO-02 BM4-F-AIO-03 BM4-F-AIO-04
F
G
H
J
K
L
M
