Installation

Instruction handbook b maXX (BM4-F-)AIO-XX (Analog IO module)

Document No.: 5.01045.08

of 82

7.6 Internal circuit diagram

7.6.1 Internal circuit diagram of Analog-IO-Modules (BM4-F-)AIO-01/-02/-03

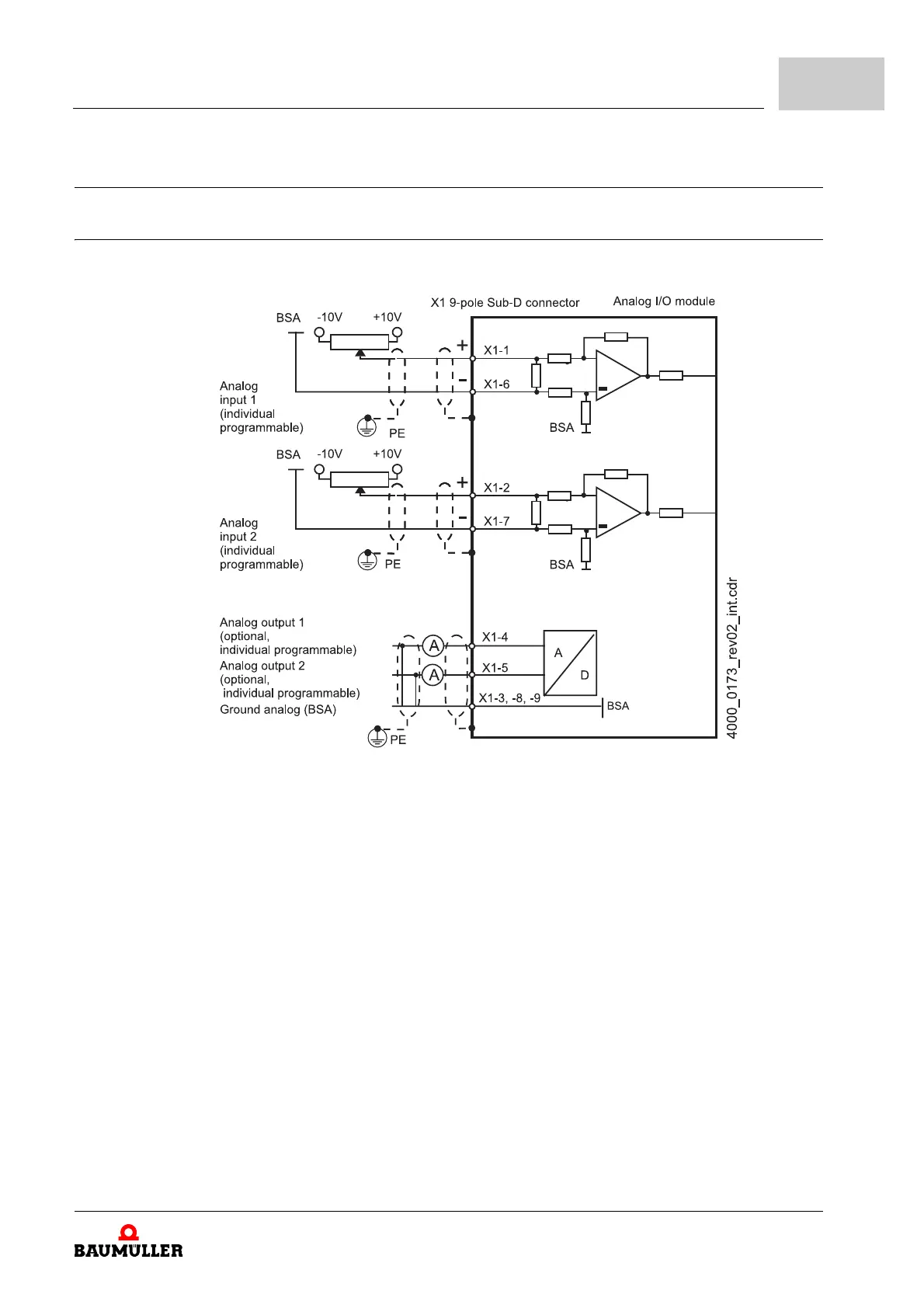

Figure 8: Internal circuit of Analog IO module (BM4-F-)AIO-01/-02/-03
