7.4 Connection diagrams

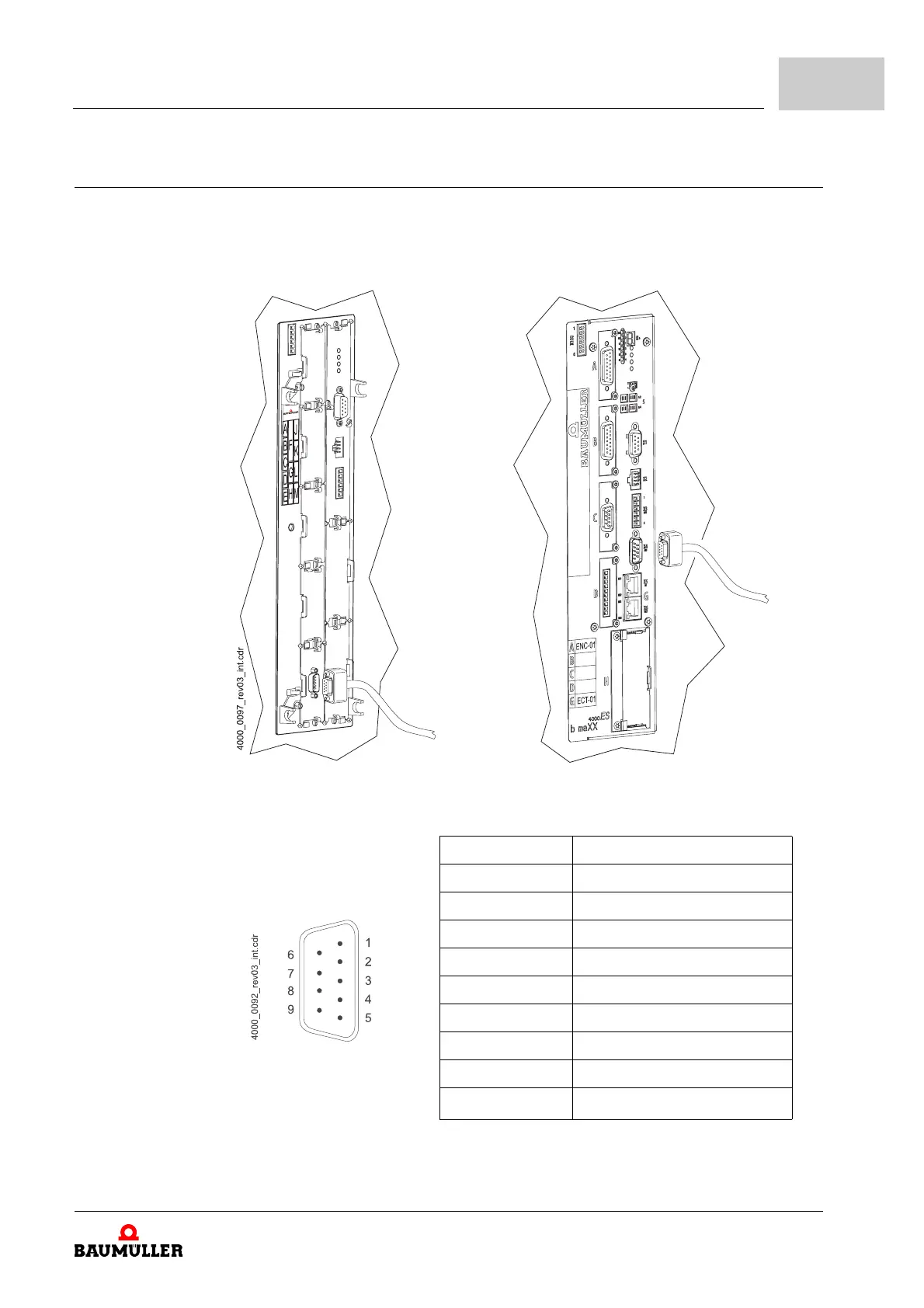

Figure 7: Connection diagram Analog IO module
Standard controller ES controller
Pin assignment Pin No. Assignment
Sub-D connector 9-pole
1 IN 1 +
2 IN 2 +
3 OUT 1 - , OUT 2 -
4 OUT 1 +
5 OUT 2 +
6 IN 1 -
7 IN 2 -
8 OUT 1 - , OUT 2 -
9 OUT 1 - , OUT 2 -
