Operation
Instruction handbook b maXX (BM4-F-)AIO-XX (Analog IO module)
Document No.: 5.01045.08 Baumüller Nürnberg GmbH
58
of 82
8.3
8.3 Operation
Setting of parameters determines the reaction of the Analog IO module during operation.
These parameters are set by the software ProDrive.
The procedure for “Analog input Link 1” is described below via an example. The proce-
dure for “Analog output Link 2” and the analog outputs is similar.
1 Start ProDrive
2 Click „ProDrive Navigation“
3 Click on + „IO analog inputs“
(path: Device/configuration/IO analog inputs)
.

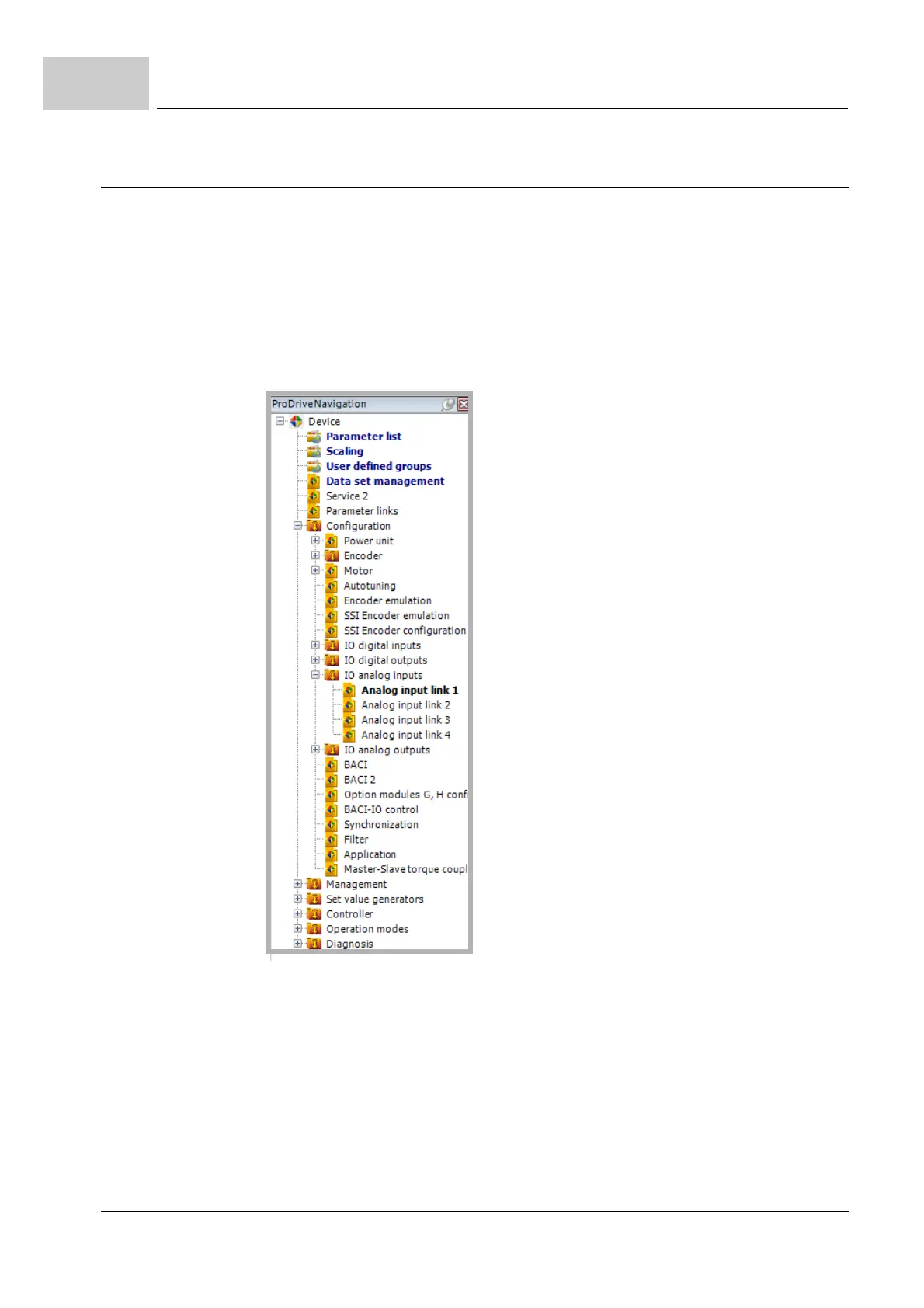

Abbildung 22: ProDrive Navigation
4 Click on „Analog input link 1“
5 Now open the menu „Analog input 1“ with the data for one of the analog inputs.
In the icon bar the parameter list button l can be found.
