Product information DTA 100 C
14 / 90 822-129-8
No.
Element
Function
4
Test vessel with electrodes
Filled with insulating oil
The test vessels have a standard holding capacity of 0.4 litres and are
made of glass. They comply with the following standards:
 IEC 60156 Fig. I or Fig. II
 ASTM D877
 ASTM D1816
The electrode shape is specified in the standards and is indicated on
the display before a measurement begins.
The figure illustrates the 0.4 litre test vessel in accordance with
IEC 60156 Fig. II with cover.
Further information:
 Test vessel shapes – Chapter Delivery includes and Options (on
page 84)
 Replacing the electrodes – Chapter Replacing the electrodes (on
page 27)
5
Oil collecting tray
Used to collect insulating oil
6
Integrated plain paper printer
Used to print the measurement logs
7
Fold-out operating unit
Used to operate the oil breakdown voltage tester
The operating unit contains the operator control panel and the
membrane keyboard.
Further information: Chapter Operating and display elements (on page
16)

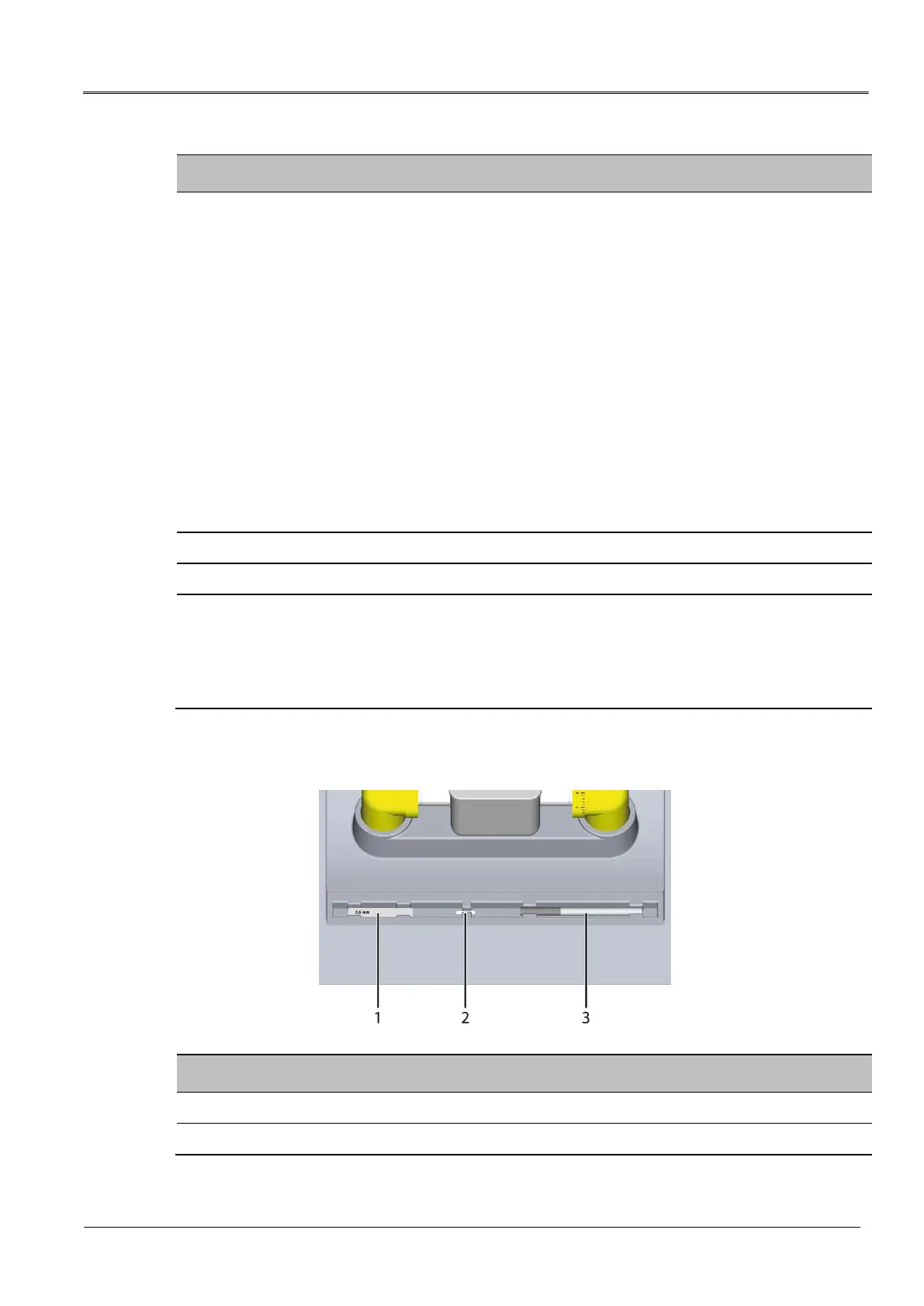

Standard accessories
No.
Element
Function
1
Setting gauge
Used to set the electrode gap
2
Magnetic stirrer
Used to stir the oil sample
