baxter AK 98 Quick Reference Guide

1. Operator's panel
2. Air detector
3. Venous pressure transducer connector
4. Arterial pressure transducer connector
5. Blood pump
6. Priming bucket
7. Heparin pump
8. Arterial blood line clamp
9. Priming detector
10. BICART cartridge holder
11. Arm for dialyzer holder
12. Venous blood line clamp
13. Expansion chamber holder
14. Blood pressure monitor (BPM) connector
15. Blood line guides
16. Level adjustment knob
17. BPM cuff holder
18. Top tray
19. Infusion stand
20. Wand holder
21. Wand
22. Dialysate ports for dialysate lines
23. Dialysate line from machine to dialyzer (blue)
24. Dialysate line from dialyzer to machine (red)
25. Dialysate port for red concentrate connector
26. Dialysate port for blue concentrate connector
27. Concentrate connector, red
28. Concentrate connector, blue

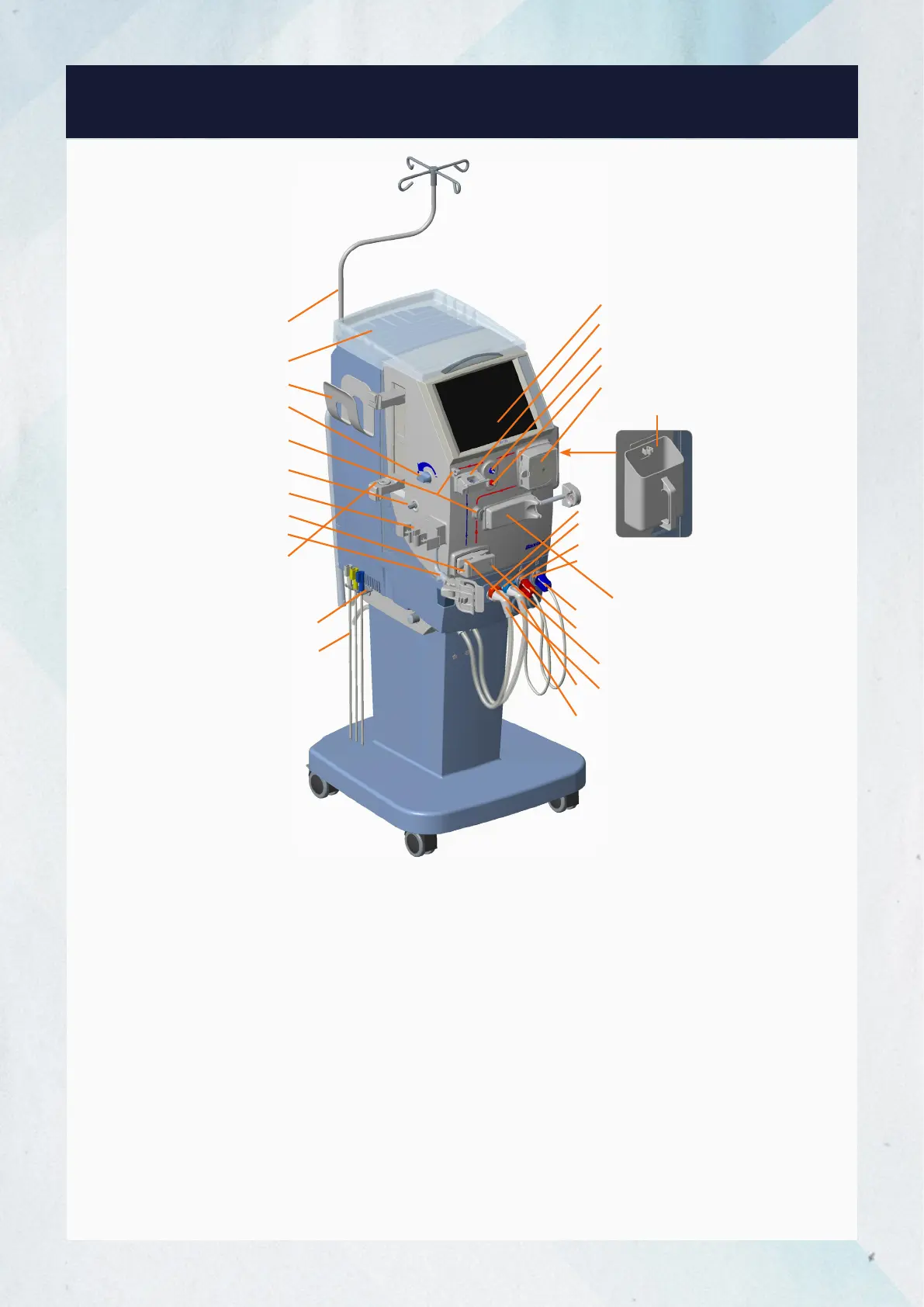

AK 98 CONFIGURATION - FRONT AND SIDE PANELS
10
20
21
1
2
3
4
5
7
8
9
19
18
17
16
15
13
14
12
11
6
22
22
25
26
24
23
27
28
3
