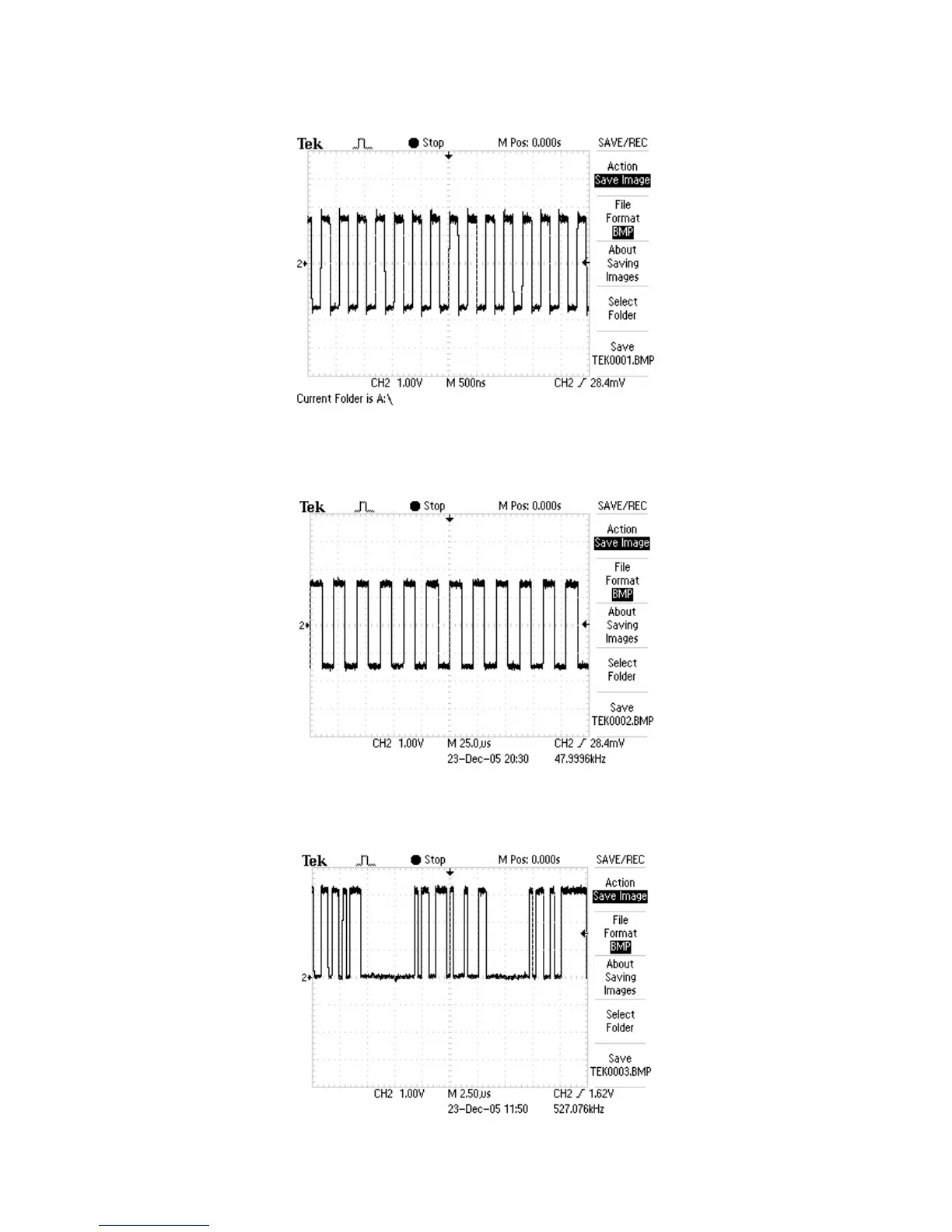

12. ABCK (3.07195MHZ): waveform diagram for bit clock signal
13. ALRCK (48KHZ): waveform diagram for left/right channel clock signal
14. SDATA0: waveform diagram for mixed left/right channel digital signal
