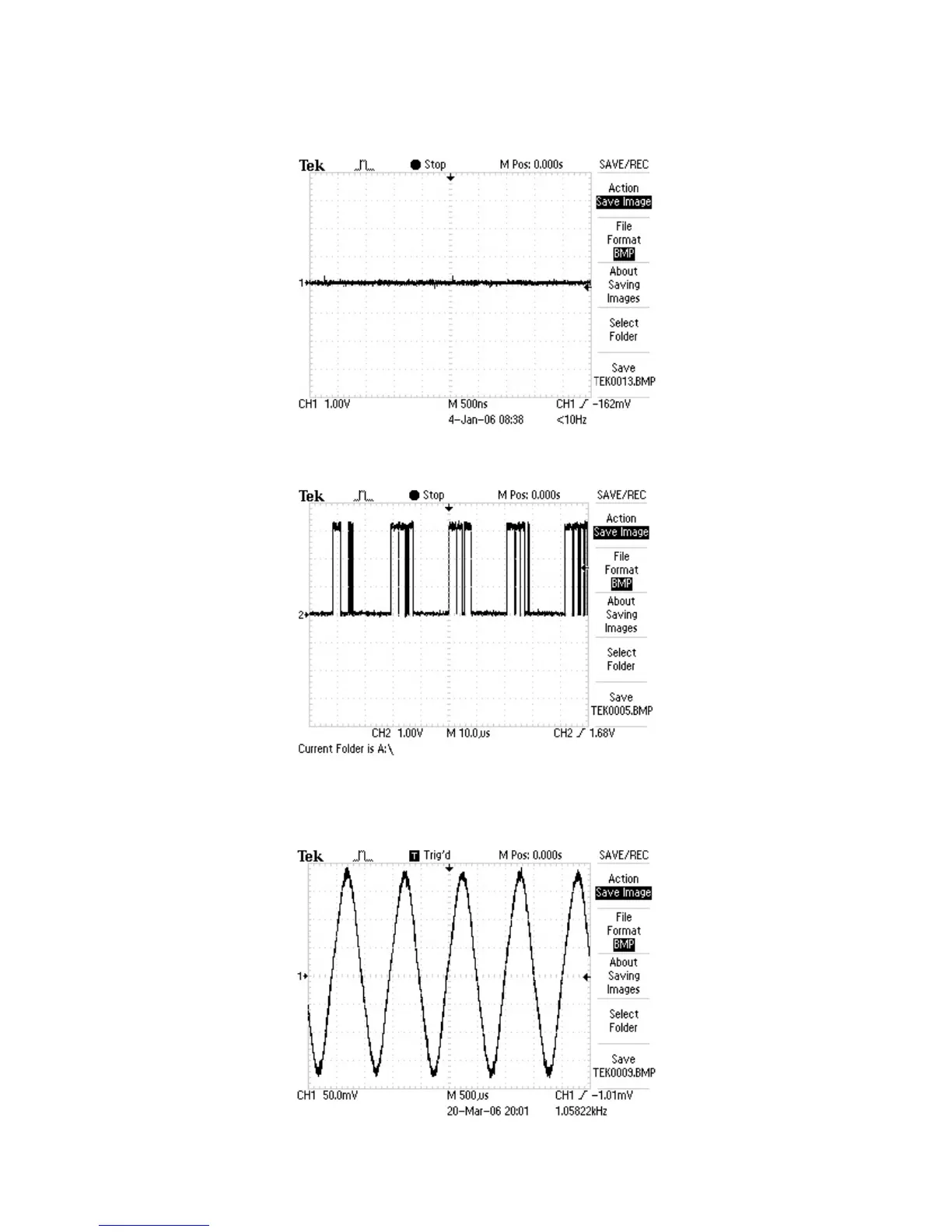

15. SDATA1: waveform diagram for surround left/right channel digital signal (now the disc being
played is 2.1CH, and this signal has no output; if 5.1CH, the form is the same with that of SDATA0)
16. SDATA2: waveform diagram for centre subwoofer digital signal
17. 1KHZ audio signal output waveform diagram (it is suggested to use test disc, if not, waveform
tested will change at any time, which will affect your judgment).
