Commissioning
EL3773116 Version: 2.5

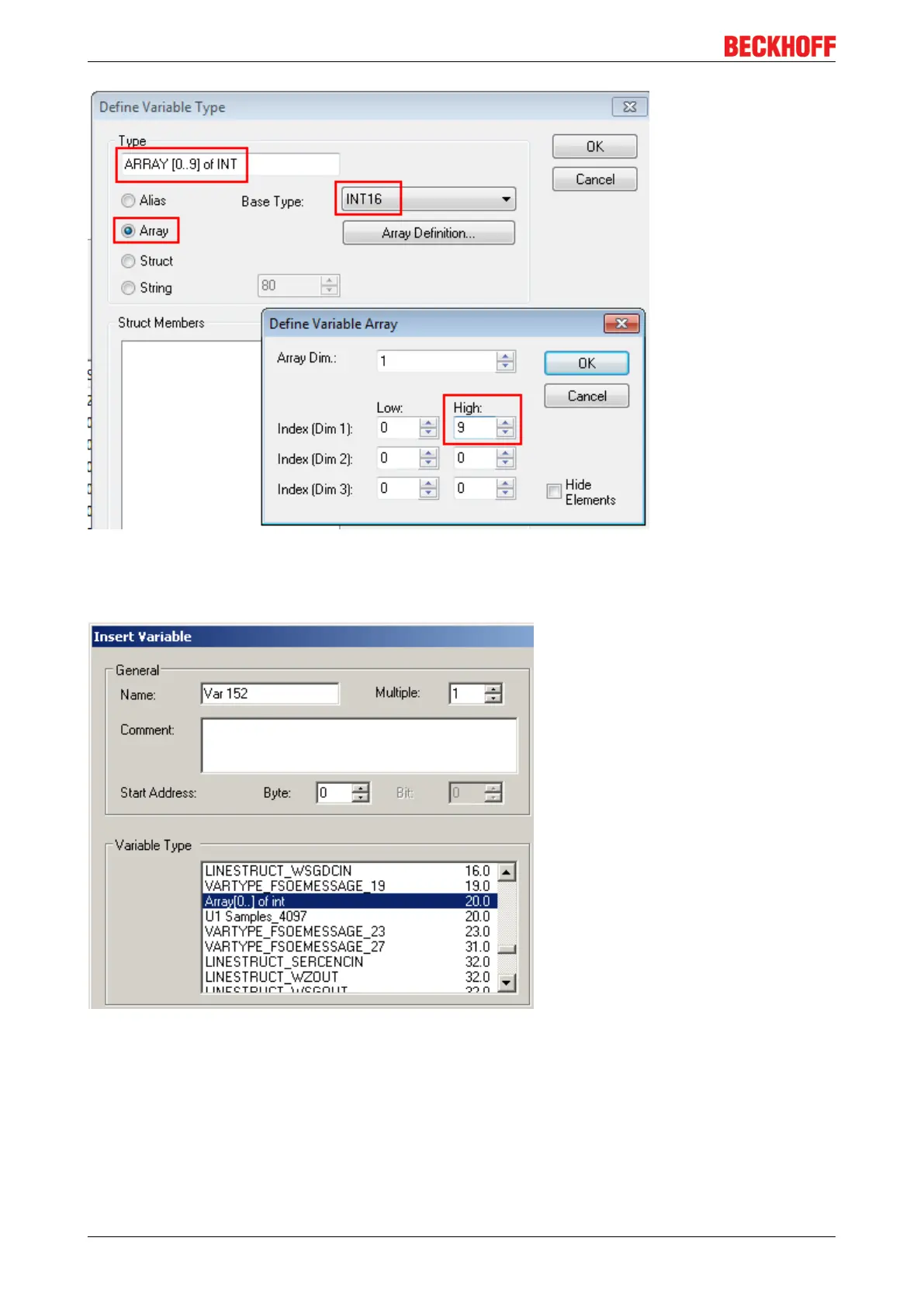

Fig.130: Definition of the variable type
If this variable is known to the System Manager, an instance of it can be assigned to an additional task with a
right-click. It appears in the overview, sorted according to bit size.
Fig.131: Overview of declared types
In this example the variable Var152 is created. It can now be linked with the PDO-Array of the respective
channel of the terminal.
