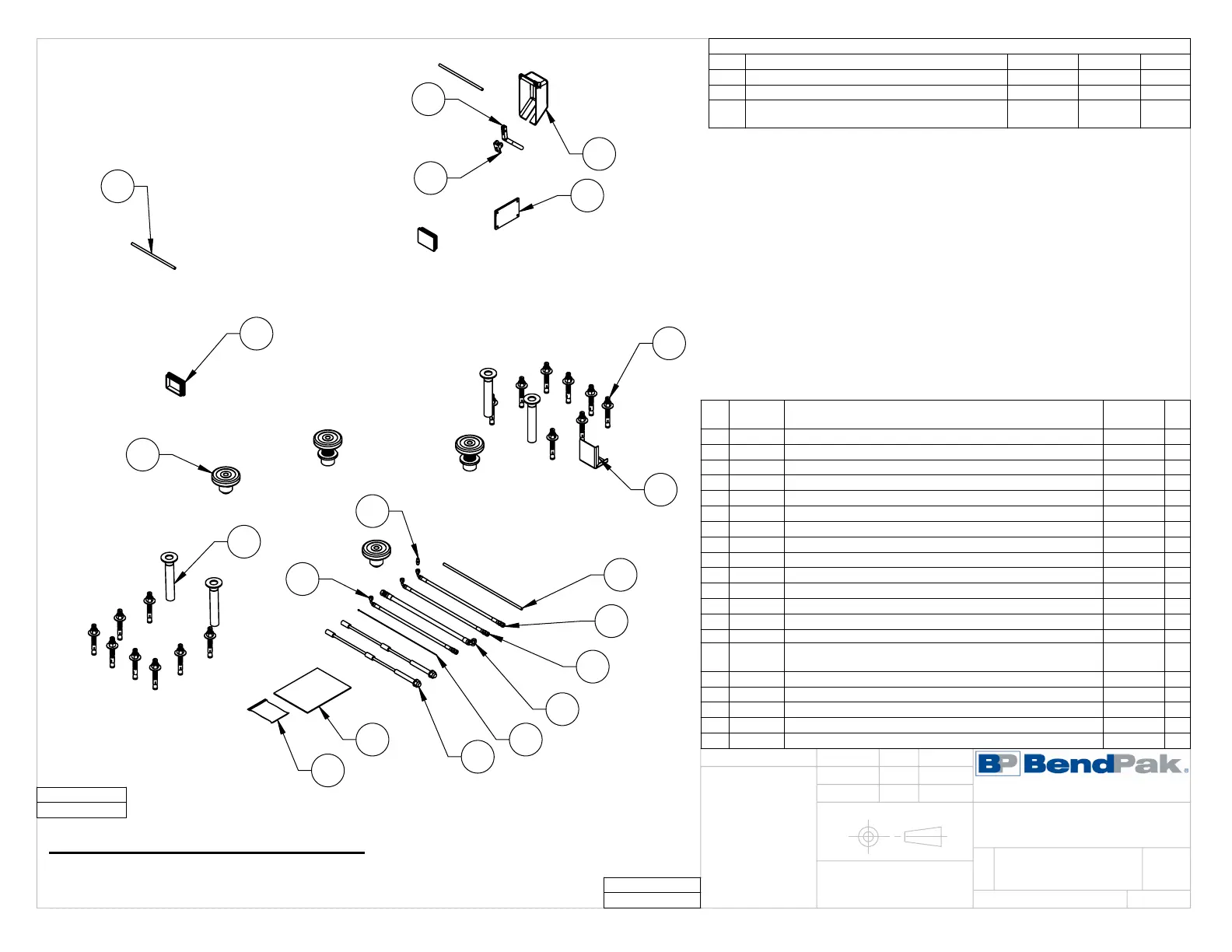

BendPak 10AP - 5250343; Sheet1; Drawing View1

DIMENSIONS ARE IN MM
☺
15
14
12
8
6
5
3
7
2
9
4
16
17
18
19
10
20
1
11
13
NEXT ASSEMBLY
5260677
WHERE USED
10AP
ITEM
NO
PART
NUMBER
DESCRIPTION QTY REV
1 5174047 10AP SERIES PARTS BAG 1 K
2 5595752 CABLE ASSEMBLY Ø10 x 10170mm DBST 2 A
3 5570277 HYDRAULIC HOSE ASSEMBLY Ø10 x 2217mm SB 1 A
4 5570279 HYDRAULIC HOSE ASSEMBLY Ø6.35 x 3276mm SB 1 B
5 5570291 HYDRAULIC HOSE ASSEMBLY Ø6.35 x 6960mm SB 1 C
6 5570174 HYDRAULIC HOSE ASSEMBLY Ø6.35 x 285mm SB 1 B
7 5595793 SAFETY CABLE Ø1.8 x 7773mm 1 A
8 5520116 14-4 SJO UL 62 CABLE 300vac 3538mm* -
9 5700404 10/12AP SAFETY PIVOT HOLDER 1 C
10 5761017 10AP SAFETY HANDLE 1 E
11 5715003 POWER UNIT VIBRATION DAMPENER 1 B
12 5215704 ROUND ADJUSTABLE LIFT PAD ASSEMBLY 4 H
13 5530337 AB 3/4" x 6.3" 16 -
14 5701698 10AP FOOT GUARD 1 C
15 5715196
10/12AP, D2, XPR POLYETHYLENE COVER BLOCK 105 x
80
2 D
16 5900265 10AP INSTALLATION MANUAL 1 -
17 5716072 10AP POWER SIDE PLASTIC SAFETY COVER 1 A
18 5601505 10AP ARM LOCK PIN WELDMENT, Ø38 4 C
19 5746167 DOUBLE THREADED ROD M10 x 1.5 x 275 2 B
20 5550095 FTG NPL -04 JIC x -04 JIC 1 -
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
D REPLACED 5595731 WITH 5595752 02/01/2023 CA 01467
E REPLACED 5570256 WITH 5570174 04/18/2023 TM 01487
F
REMOVED 5746007, 5746192, 5701660,
UPDATED BOM REVISION
04/20/2023 TM 01488
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
F
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
CA
5250343
10AP PARTS BOX
03/28/2022
DO NOT SCALE DRAWING
1:20
SCALE:
THIRD ANGLE PROJECTION
OR 04/28/2023
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 1.
INSERT PARTS BAG INTO PARTS BOX FOR SHIPMENT 2.
HOSES AND CABLES SHOWN REPRESENTATIONAL FORM 3.
