DIMENSIONS ARE IN MM
☺
1
2
3
4
5
5
6
7

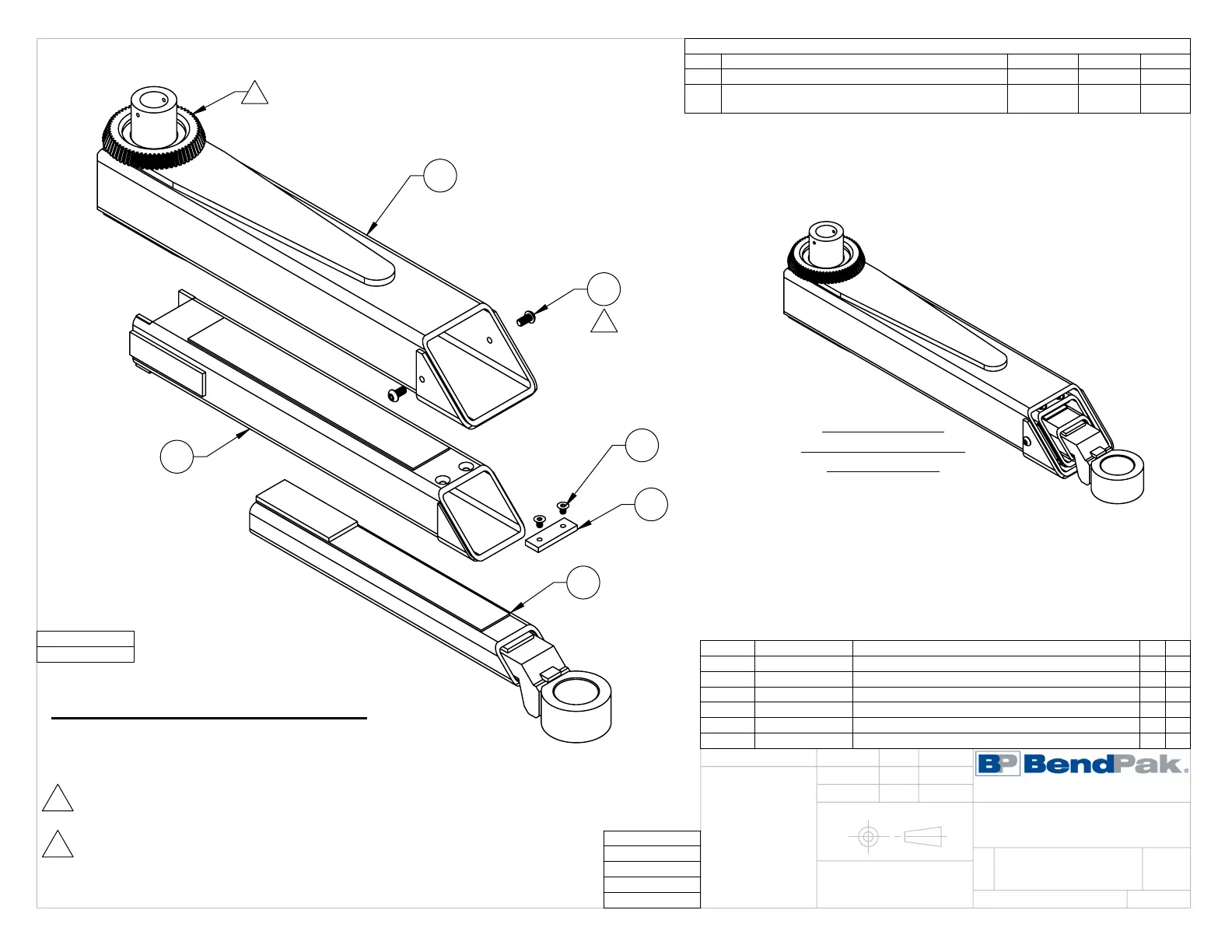

ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
NEXT ASSEMBLY
5260698
5260699
5260700
5260701
WHERE USED
10AP SERIES
ITEM NO
PART NUMBER
DESCRIPTION
QTY
REV
1 5601937
10AP LONG ARM WELDMENT, OUTER SECTION
1
B
2 5601936
10AP LONG ARM WELDMENT, MIDDLE SECTION
1
A
3 5601512
10AP LONG ARM WELDMENT, INNER SECTION
1
F
4 5737188
10/12AP MIDDLE ARM SECTION SLIDE STOP
1
B
5 5530382
FHSS M8 x 1.25 x 12 CL10.9
2
-
6 5530479
BHSS M10 x 1.5 x 20 FT, CL 10.9 B.O.
2
-
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
A
PRODUCTION RELEASE, DERIVED FROM 5215957
04/20/2023
TM
01488
B
REPLACED 5530346 WITH 5530479, UPDATED
BOM REVISIONS
05/24/2023
TM
01492
SHEET 1 OF 2
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
B
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED
.
TM
5216216
10AP TRIPLE TELESCOPING
ARM ASSEMBLY, LONG
04/20/2023
DO NOT SCALE DRAWING
1:6
SCALE:
THIRD ANGLE PROJECTION
REFER TO MODEL FOR ADDITIONAL INFORMATION
1.
REMOVE WELD SPLATTER
2.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING
3.
ASSEMBLE ITEMS AS SHOWN
4.
MASK TEETH BEFORE PAINTING
5.
MASK BORE AND ALL THREADS BEFORE PAINTING
6.
APPLY LOCTITE BLUE 242 AND CURE PER MANUFACTURE
7.
SPECIFICATION
DIMENSIONS SHOWN ARE AFTER WELDING AND PAINTING
8.
PAINT YELLOW (RAL-1018) 20% GLOSS
9.
