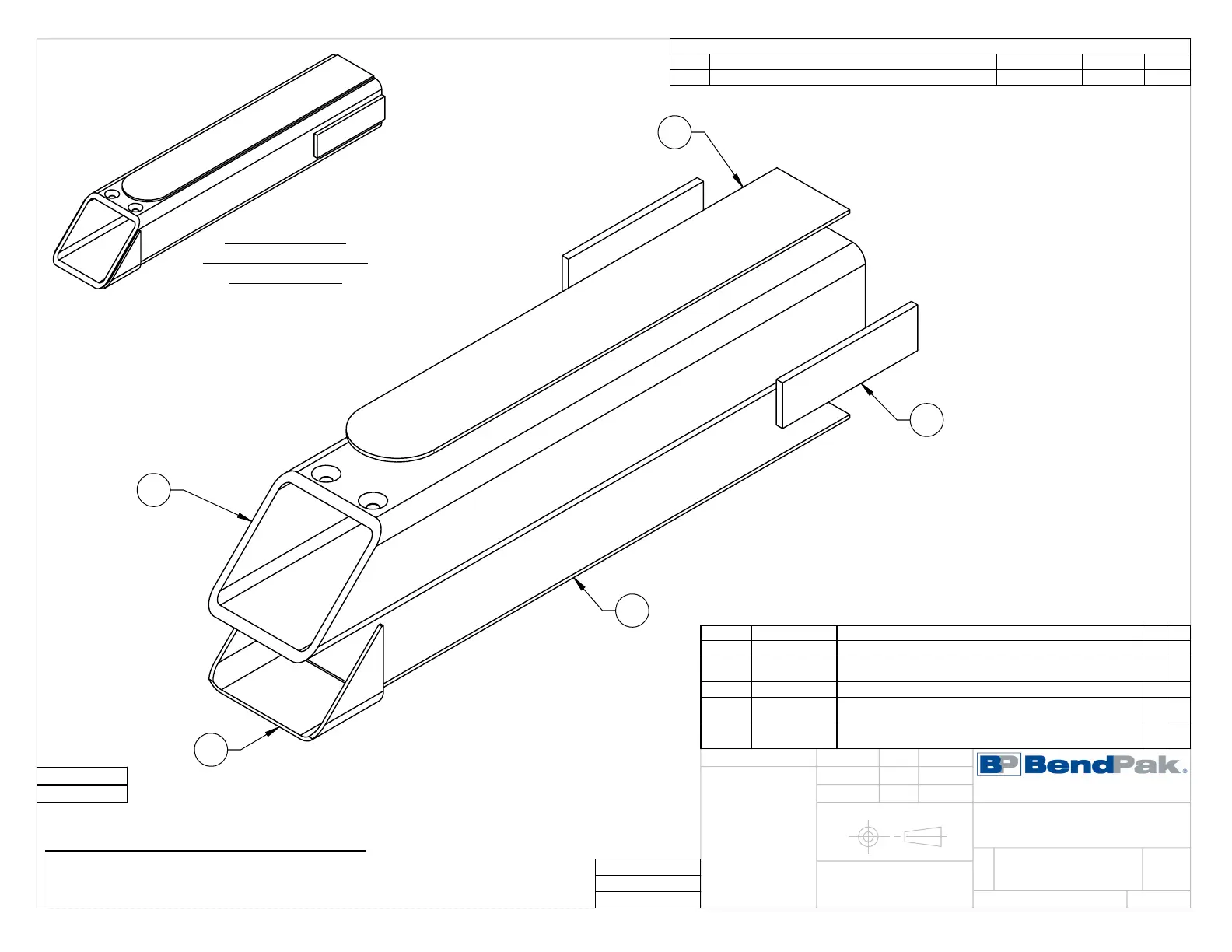

ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
5
3
1
4
2
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
A
PRODUCTION RELEASE, DERIVED FROM 5601513
11/19/2021
OR
01361
NEXT ASSEMBLY
5216217
5216218
WHERE USED
10AP SERIES
ITEM NO
PART NUMBER
DESCRIPTION
QTY
REV
1 5701831
10AP ASYMMETRIC ARM MIDDLE SECTION TUBE
1
A
2 5735906
10AP ASYMMETRIC ARM MIDDLE SECTION PLATE,
BOTTOM
1
A
3 5700403
10AP OUTER ARM MIDDLE SECTION SUPPORT
1
B
4 5735908
10AP ASYMMETRIC ARM, MIDDLE SECTION SIDE
SPACER
2
A
5 5735907
10AP ASYMMETRIC ARM MIDDLE SECTION PLATE,
TOP
1
A
SHEET 1 OF 2
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
A
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
RK
5601753
10AP ASYMMETRIC ARM
WELDMENT, MIDDLE
SECTION
11/16/2021
DO NOT SCALE DRAWING
1:4
SCALE:
THIRD ANGLE PROJECTION
OR
12/08/2021
DIMENSIONS ARE IN MM
TOLERANCES:
0. = ±1.5
0.0 = ±0.5
SURFACE FINISH 1.6 ISO Ra µm
FOR MACHINED SURFACES
UNLESS OTHERWISE SPECIFIED
REFER TO MODEL FOR ADDITIONAL INFORMATION
1.
BREAK AND DEBURR ALL SHARP EDGES 0.3mm
2.
REMOVE ALL WELD SPLATTER
3.
NOTE: UNLESS OTHERWISE SPECIFIED.
