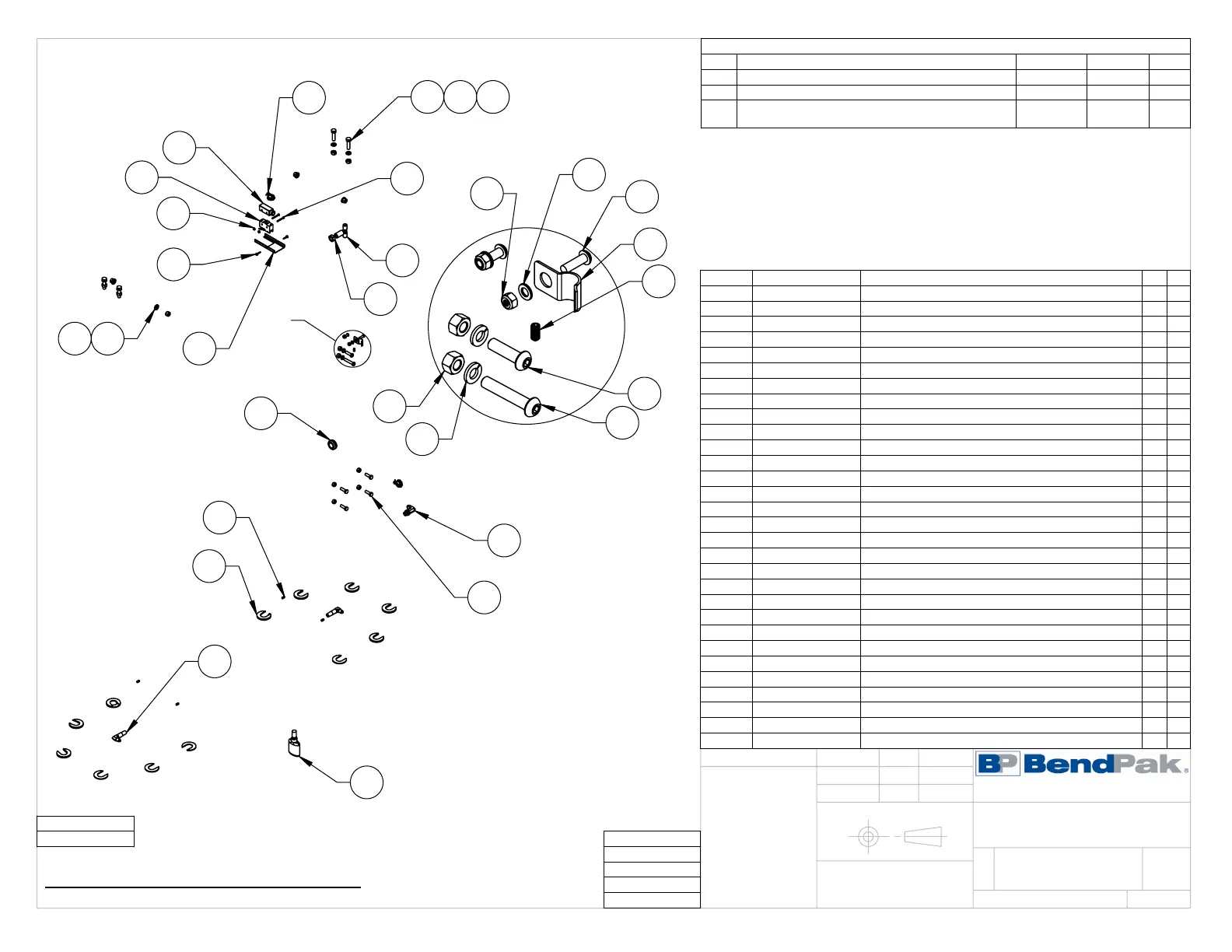

BendPak 10AP - 5174047; Sheet1; Drawing View1; Detail View A (1: 3)

DIMENSIONS ARE IN MM
☺
A
13
16
17
14
12
4
1
10
15
22
3
6
11
26
18
2
9 7 8
2728
DETAIL A
SCALE 1 : 3
24
30
25
23
5
21
20
19
29
NEXT ASSEMBLY
5250343
5250344
5250346
5250347
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
H REMOVED 5550095 06/14/2022 CA 01417
J ADDED 5505051 12/01/2022 CA 01458
K
REMOVED (4) 5530065, (4) 5535357,
& (4) 5545005
04/20/2023 TM 01488
WHERE USED
10AP SERIES
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5535022 NUT 9/16"-18 JN 1 -
2 5550113 FTG ELB -04 NPT L x -04 JIC 2 -
3 5550183 FTG ELB -06 JIC -06L ORB 1 -
4 5550003 FTG TEE -04JIC -04JIC -06JIC 1 -
5 5535001 NUT M8 x 1.25 NL 6 -
6 5530010 HHB M8 x 1.25 x 25mm ZPL 4 -
7 5545200 WASHER M10 x Ø18 SL 4 -
8 5535998 NUT M10 x 1.5 4 -
9 5530760 HHB M10 x 1.5 x 38mm 4 -
10 5530799 HSDS M4.2 x 1.41 x 20 2 -
11 5545535 C WASHER SHIM FOR LIFTS 20 -
12 5530115 BHS 6-32 x 1.25 2 -
13 5535190 HN 6-32 2 -
14 5520140 ROMEX CONNECTOR 3/8 #6623 2 -
15 5716634 D2/10AP/XPR MICROSWITCH COVER, PLASTIC 1 B
16 5525150 SPDT MICRO SWITCH;25A@125VAC 1 -
17 5525112 MICRO SWITCH COVER-5PA2 1 -
18 5580012 LIQUID PTFE THREAD SEALANT 50ml 1 -
19 5530412 BHSK M8 x 1.25 x 30 CL10.9 1 -
20 5530413 BHSK M8 x 1.25 x 45 CL10.9 1 -
21 5545202 WASHER M8 x Ø15 SL 2 -
22 5520001 RUBBER GROMMET, 3/4 I.D. 1 -
23 5535357 NUT M6 x 1.0, NL CL8 2 -
24 5530065 BHSK M6 x 1.0 x 20 2 -
25 5545005 WASHER, M6 x 12mm FLAT 2 -
26 5530423 SSS M6 x 1.0 x 12 CONE 4 -
27 5545341 WASHER M10 x Ø20 FLAT 4 -
28 5535013 NUT M10 x 1.5 NL 4 -
29 5530460 SSS M6 x 1.0 x 12 NL FLAT 1 -
30 5505051 Ø10mm PIPE STRAP 1 A
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
K
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5174047
10AP SERIES
PARTS BAG
01/14/2020
DO NOT SCALE DRAWING
1:16
SCALE:
THIRD ANGLE PROJECTION
OR 04/28/2023
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 1.
