285
2 1
3
ITEM NO
PART NUMBER
DESCRIPTION
QTY
REV
1 5570129
Ø6.4 ID HYDRAULIC HOSE
247mm*
-
2 5550325
FTG NPL Ø1/4 CRIMP x -04 JIC
1
-
3 5550345
FTG ELB Ø1/4 CRIMP x -04 JIC
1
-
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
A
PRODUCTION RELEASE, DERIVED FROM 5570156
06/20/2017
TM
00832
OBSO
REPALCED WITH 5570040
07/13/2021
CA
00903
B
UNOBSOLETED FOR USE IN 10AP SERIES, UPDATED
NEXT ASSEMBLIES, WHERE USED AND TITLE
04/18/2023
TM
01487
NEXT ASSEMBLY
5240022
5240036
5250343
5250344
5250346
5250347
WHERE USED
10AP SERIES
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
B
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
TM
5570174

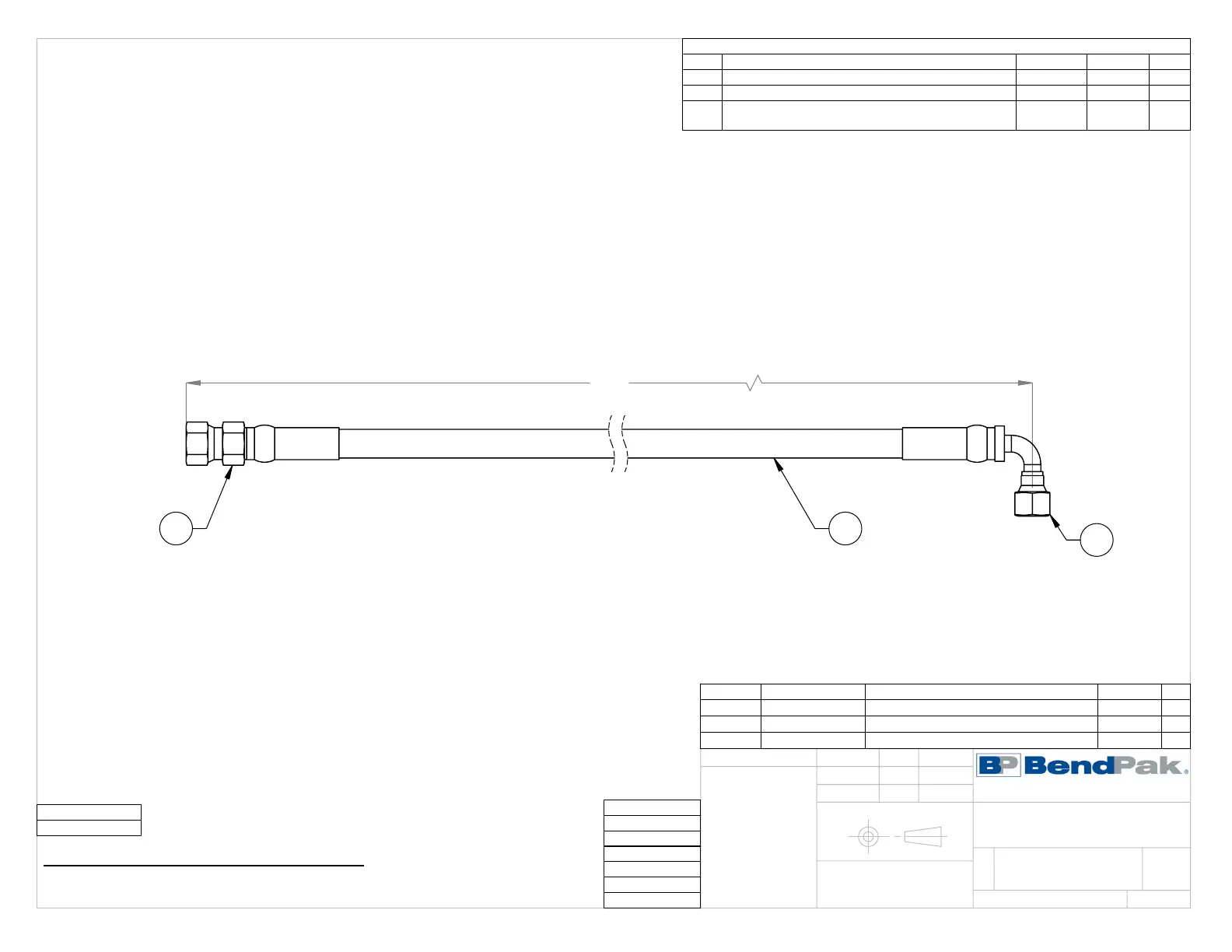

HYDRAULIC HOSE ASSEMBLY
Ø6.35 x 285mm SB
06/20/2017
DO NOT SCALE DRAWING
1:2
SCALE:
THIRD ANGLE PROJECTION
OR
04/19/2023
DIMENSIONS ARE IN MM
TOLERANCES:
0. = ±1.5
0.0 = ±1.0
0.00 = ±0.25
0.000 = ±0.13
SURFACE FINISH 1.6 ISO Ra µm
FOR MACHINED SURFACES
UNLESS OTHERWISE SPECIFIED
NOTE: UNLESS OTHERWISE SPECIFIED.
FOR ITEM 1 SPECIFICATIONS REFER TO PART SPECIFICATION FORM
1.
(*)ITEM 1 QTY FOR REFERENCE ONLY
2.
