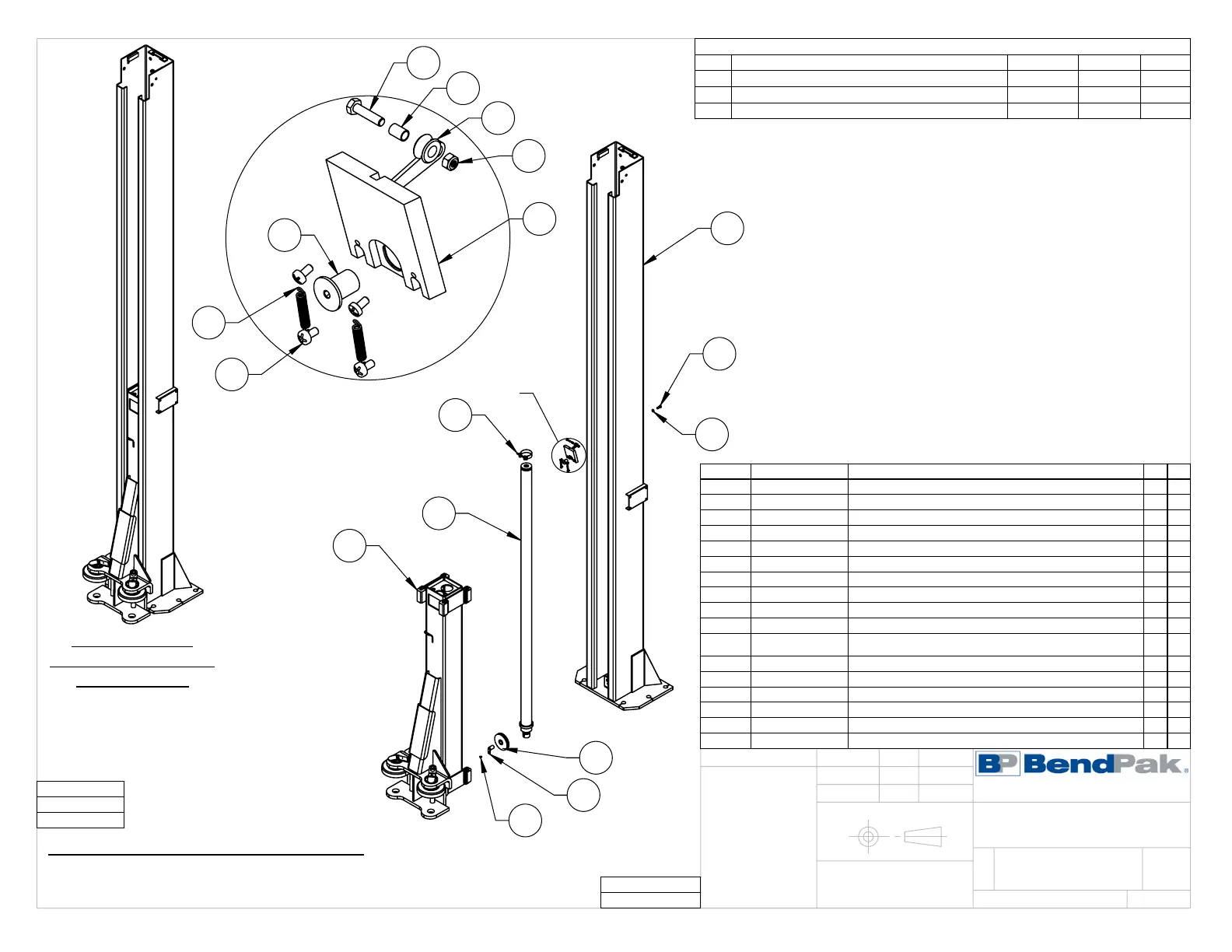

BendPak 10AP - 5216128; Sheet1; Drawing View1; Drawing View2

DIMENSIONS ARE IN MM
☺
A
1
4
3
2
6
7
5
15
14
ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
DETAIL A
SCALE 1 : 3
9
11
8
10
12
13
16
17
NEXT ASSEMBLY
5245246
WHERE USED
10AP
10AP-168
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5601800 10AP POWER SIDE POST WELDMENT 1 D
2 5216180 10AP LIFT HEAD ASSEMBLY 1 F
3 5502724 CYLINDER ASSEMBLY Ø2.0 x 69 - SLOW 1 D
4 5701242 CYLINDER CLAMP ASSY 1 -
5 5530366 FHSS M6 x 1.0 x 8 1 -
6 5575068 10AP 100mm SHEAVE ASSEMBLY 1 B
7 5620143 D2-10, 10AP CABLE SHEAVE PIN WELDMENT 1 C
8 5575074 10/12AP SAFETY CABLE ROLLER 1 A
9 5530756 HHB M6 x 1.0 x 25mm 1 -
10 5535357 NUT M6 x 1.0, NL CL8 1 -
11 5565350
10/12AP/D2/GP/PCL/XPR/ PL-7000 SAFETY
SHEAVE SPACER
1 C
12 5601516 10AP POWER SIDE SAFETY WELDMENT 1 E
13 5746494 10/12AP SAFETY PIVOT PIN 1 C
14 5530414 BHSK M8 x 1.25 x 25 CL10.9 1 -
15 5545202 WASHER M8 x Ø15 SL 1 -
16 5540047 EXTENSION SPRING Ø6.35 x 38mm 2 -
17 5530045 BHPS M5 x 0.8 x 10 4 -
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
H UPDATED BOM REVISION 12/12/2022 TM 01460
J UPDATED BOM REVISION 01/31/2023 CA 01467
K UPDATED BOM REVISION 04/20/2023 TM 01488
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
K
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
CA
5216128
10AP POWER SIDE
POST ASSEMBLY
04/05/2022
DO NOT SCALE DRAWING
1:25
SCALE:
THIRD ANGLE PROJECTION
OR 04/28/2023
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 2.
ASSEMBLE ITEMS AS SHOWN 3.
