3
2
1
6
5
4

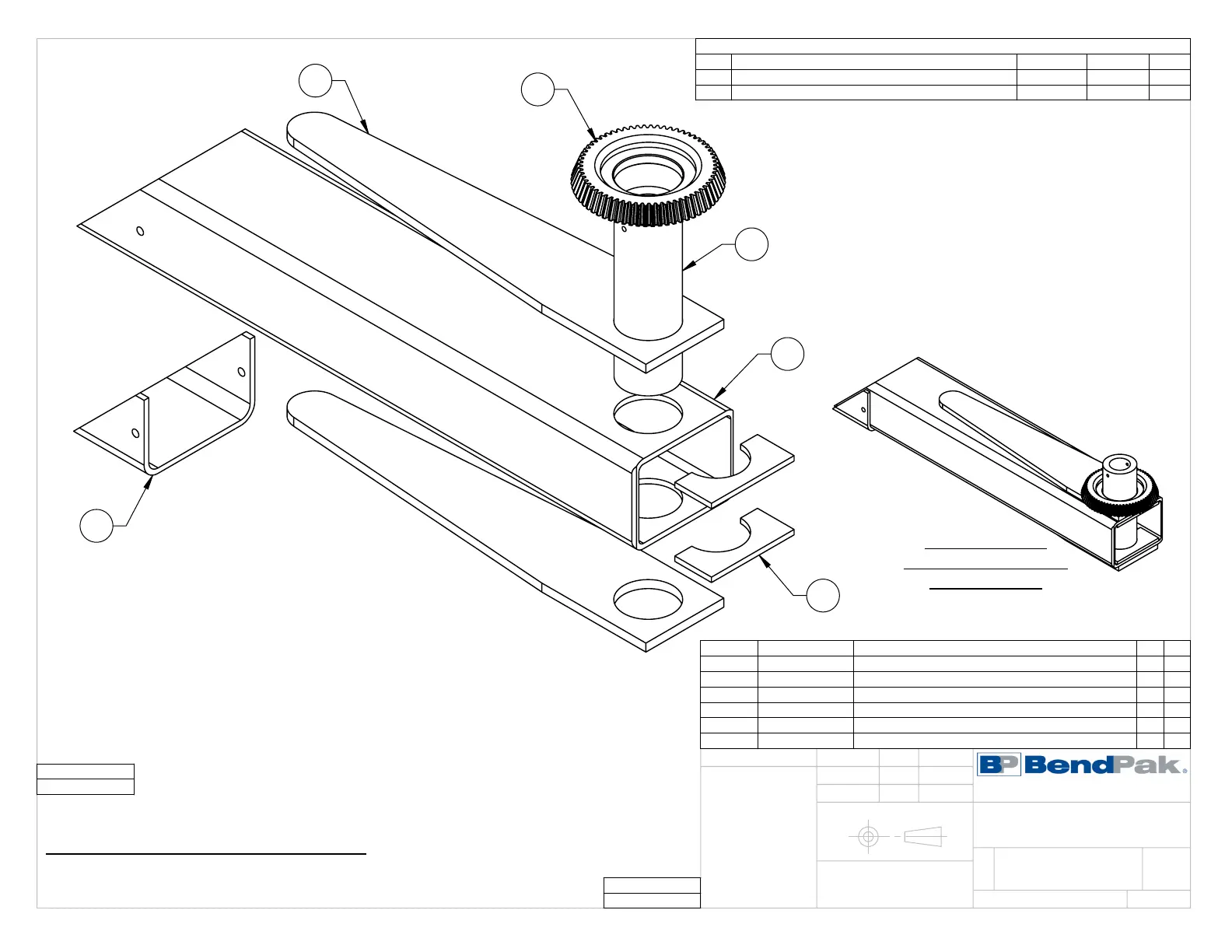

ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
NEXT ASSEMBLY
5216216
WHERE USED
10AP SERIES
ITEM NO
PART NUMBER
DESCRIPTION
QTY
REV
1 5701696
10AP LONG OUTER ARM SECTION
1
C
2 5737184
10AP OUTER ARM SECTION TOP STIFFENER
2
C
3 5700397
10AP OUTER ARM SECTION SUPPORT
1
A
4 5746495
ARM MOUNT TUBE, Ø38.2
1
C
5 5701702
10/12AP ARM RESTRAINT FULL CIRCLE GEAR
1
A
6
5601937-1
10AP OUTER ARM MOUNT TUBE GUSSET
2
-
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
A
PRODUCTION RELEASE, DERIVED FROM 5601511
04/20/2023
TM
01488
B
WAS COUNTERSUNK NOW THROUGH HOLE
06/01/2023
CA
01492
SHEET 1 OF 3
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
B
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
TM
5601937
10AP LONG ARM
WELDMENT, OUTER SECTION
04/20/2022
DO NOT SCALE DRAWING
1:4
SCALE:
THIRD ANGLE PROJECTION
DIMENSIONS ARE IN MM
TOLERANCES:
0. = ±1.5
0.0 = ±0.5
SURFACE FINISH 1.6 ISO Ra µm
FOR MACHINED SURFACES
UNLESS OTHERWISE SPECIFIED
REFER TO MODEL FOR ADDITIONAL INFORMATION
1.
BREAK AND DEBURR ALL SHARP EDGES 0.3mm
2.
REMOVE ALL WELD SPLATTER
3.
NOTE: UNLESS OTHERWISE SPECIFIED.
